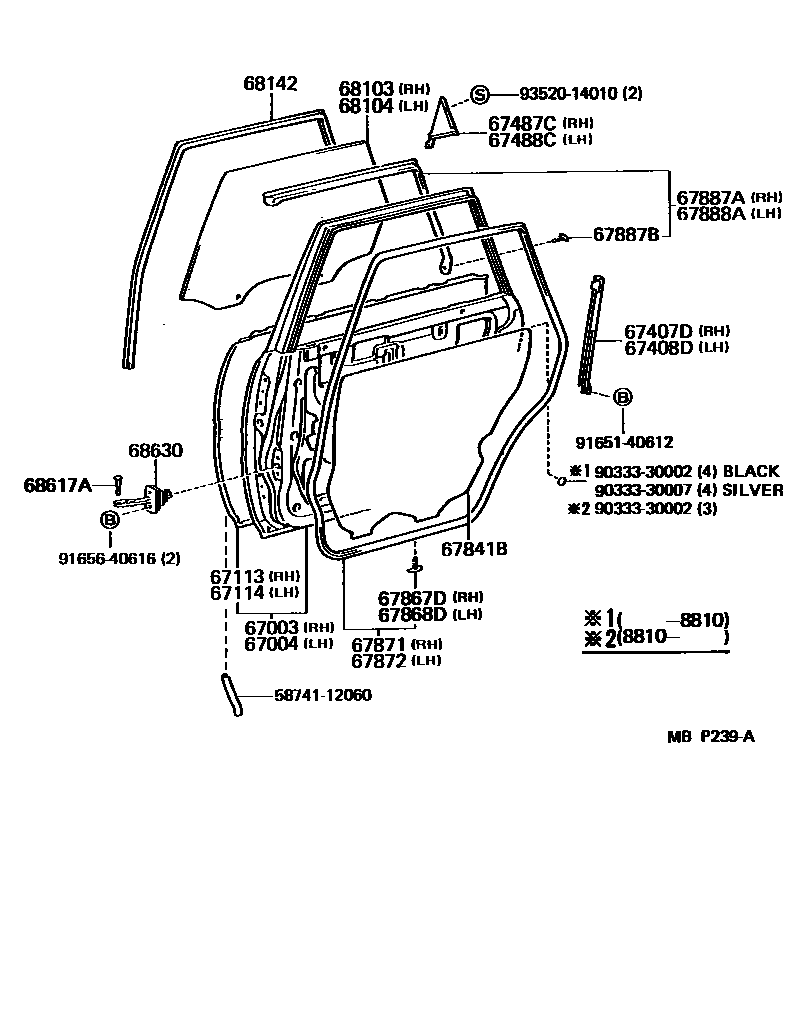

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1 0005 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-32100iSV2#,VZV21..SED¥62,600198808-199106

main67003-32170iSV21,VZV21..WG¥62,600198808-199106

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-32100iSV2#,VZV21..SED¥62,600198808-199106

main67004-32170iSV21,VZV21..WG¥62,600198808-199106

67113PANEL, REAR DOOR, OUTER RH

main67113-32040iSV2#,VZV21¥22,700198808-199106

67114PANEL, REAR DOOR, OUTER LH

main67114-32040iSV2#,VZV21¥22,700198808-199106

67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH

main67407-32030iSV2#,VZV21¥1,330198808-199106

67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH

main67408-32030iSV2#,VZV21¥1,330198808-199106

67487CSEAL, REAR DOOR REAR GUIDE, RH

main67487-32030iSV2#,VZV21¥3,610198808-199106

67488CSEAL, REAR DOOR REAR GUIDE, LH

main67488-32030iSV2#,VZV21¥3,610198808-199106

67841BCOVER, REAR DOOR SERVICE HOLE

main67841-32050iSV2#,VZV21¥930198808-199106

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-20010iSV2#,VZV21..SED¥180198808-198810

main67867-32010iSV21,VZV21..WG198808-198810

sub67868-32020¥170

main67868-12050iSV21,VZV21..WG¥210198810-199106

main67868-32030iSV2#,VZV21..SED¥170198810-199106

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67868-12050iSV21,VZV21..WG¥210198810-199106

main67868-20010iSV2#,VZV21..SED¥180198808-198810

sub67867-20010¥180

main67868-30040iSV21,VZV21..WG¥110198808-198810

main67868-32030iSV2#,VZV21..SED¥170198810-199106

67871WEATHERSTRIP, REAR DOOR, RH

main67871-32050iSV2#,VZV21..SED¥6,200198808-199106

main67871-32070iSV21,VZV21..WG¥5,800198808-199106

67872WEATHERSTRIP, REAR DOOR, LH

main67872-32050iSV2#,VZV21..SED¥6,200198808-199106

main67872-32070iSV21,VZV21..WG¥5,800198808-199106

67887AWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-32010iSV2#,VZV21..SED¥3,300198808-199106

main67887-32020iSV21,VZV21..WG¥3,300198808-199106

67887BCLIP(FOR REAR DOOR WEATHERSTRIP)

main67869-20020iSV2#,VZV21¥190198810-199106

main67869-30020iSV2#,VZV21¥220198808-198810

67888AWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-32010iSV2#,VZV21..SED¥3,300198808-199106

main67888-32020iSV21,VZV21..WG¥3,300198808-199106

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-32050iSV2#,VZV21..SED¥18,200198808-199106

*TT,T=3.5

main68113-32060iSV2#,VZV21..SED..LE¥20,100198808-199106

*TT,T=3.5,BRONZE

main68113-32090iSV21,VZV21..WG¥16,800198808-199106

*TT,T=3.5

main68113-32100iSV21,VZV21..WG..LE198808-199106

*TT,T=3.5,BRONZE

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-32050iSV2#,VZV21..SED¥18,200198808-199106

*TT,T=3.5

main68114-32060iSV2#,VZV21..SED..LE¥20,100198808-199106

*TT,T=3.5,BRONZE

main68114-32090iSV21,VZV21..WG¥18,200198808-199106

*TT,T=3.5

main68114-32100iSV21,VZV21..WG..LE¥17,300198808-199106

*TT,T=3.5,BRONZE

68142RUN, REAR DOOR GLASS

main68142-32050iSV2#,VZV21..SED¥3,660198808-199106

RH

main68142-32070iSV21,VZV21..WG¥3,660198808-199106

RH

main68152-32010iSV2#,VZV21..SED¥3,660198808-199106

LH

main68152-32030iSV21,VZV21..WG¥3,660198808-199106

LH

68617APIN, REAR DOOR CHECK

main68617-32010iSV2#,VZV21¥300198808-199106

68630CHECK ASSY, REAR DOOR

main68630-32031iSV2#,VZV21¥3,650198808-199106

5874112060PROTECTOR, QUARTER PANEL, RH

main58741-12060¥860

9033330002

main90333-30002¥70

9033330007

main90333-30007¥130

9165140612

main91651-40612¥70

9165640616

main91656-40616¥100

9352014010

main93520-14010¥70

27 parts on this diagram · 5 diagrams in section
