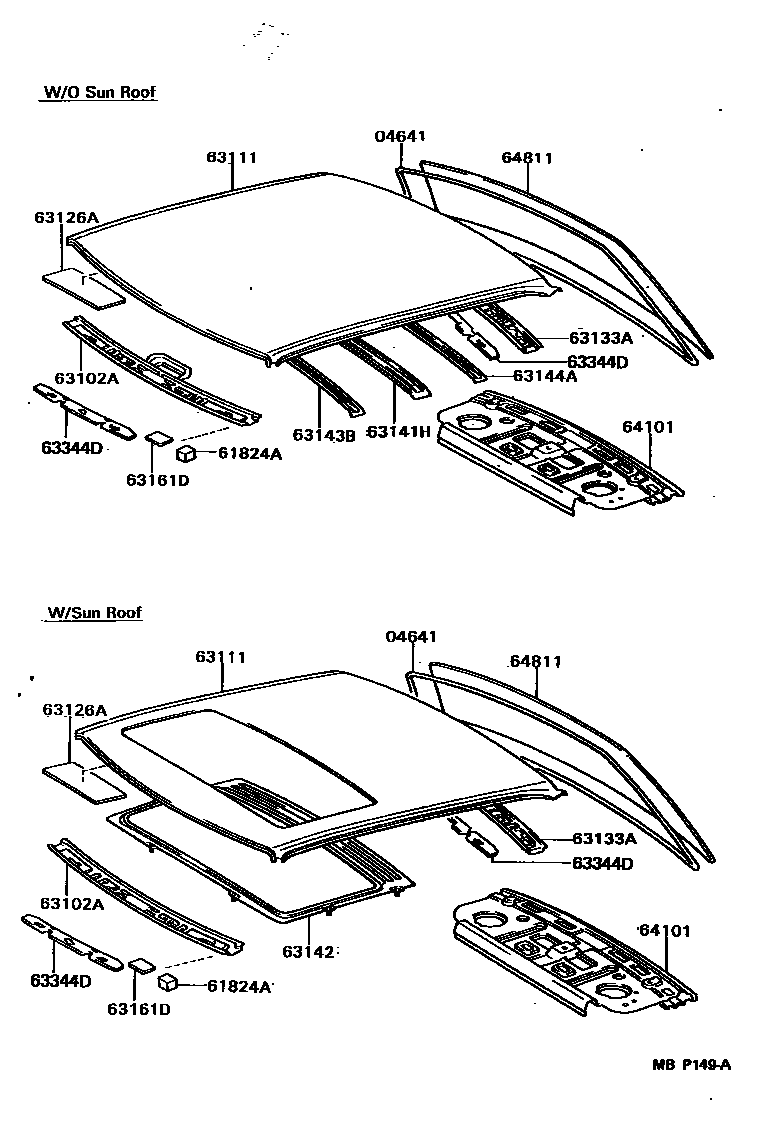

ROOF PANEL & BACK WINDOW GLASS
04641DAM KIT, BACK WINDOW GLASS
61824APLATE, NOISE CONTROL, NO.1
63102APANEL SUB-ASSY, WINDSHIELD HEADER
W(MOON ROOF)
63111PANEL, ROOF
W(MOON ROOF)
W(MOON ROOF)
63126ADAMPER, WINDSHIELD HEADER PANEL
63133AFRAME, BACK WINDOW, UPPER
63141HREINFORCEMENT, ROOF PANEL, CENTER
63142REINFORCEMENT, ROOF PANEL, NO.2
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63161DPLATE, ROOF HEADER PANEL, NO.1
63344DPAD, ROOF SILENCER, NO.4
64101PANEL SUB-ASSY, UPPER BACK
W(SPLIT SEAT)
64811GLASS, BACK WINDOW
*EHTT,T=4.0,BLUE,W(ANTENA)
*EHTT,T=4.0,BLUE
*EHTT,T=4.0,BRONZE
*EHTT,T=3.5,BRONZE
14 parts on this diagram · 3 diagrams in section
