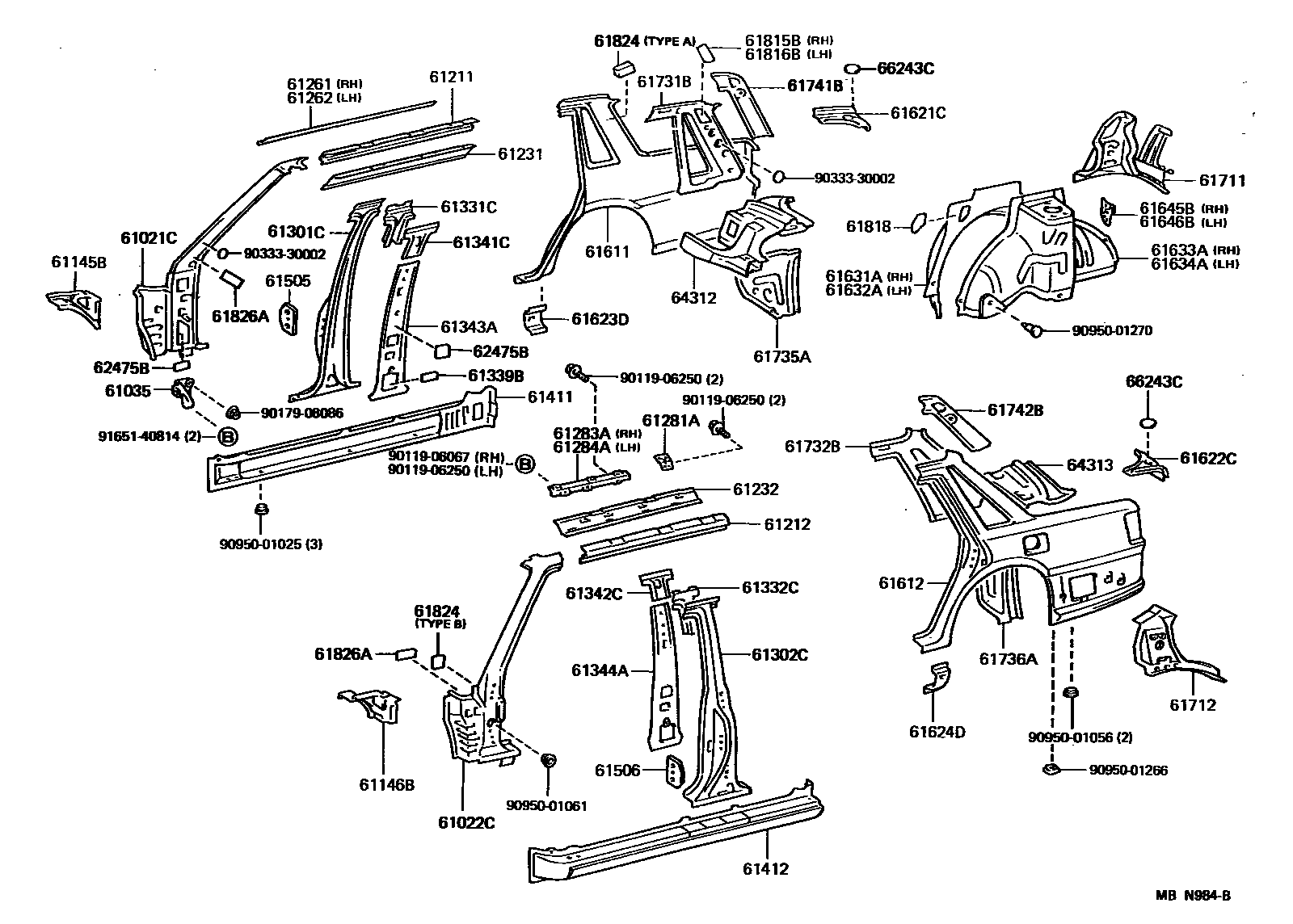

SIDE MEMBER
61021CPILLAR SUB-ASSY, FRONT BODY, RH
61022CPILLAR SUB-ASSY, FRONT BODY, LH
61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1
61283ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH
61284ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH
61301CPILLAR SUB-ASSY, CENTER BODY, OUTER RH
61302CPILLAR SUB-ASSY, CENTER BODY, OUTER LH
61331CREINFORCEMENT, CENTER PILLAR, UPPER OUTER RH
61332CREINFORCEMENT, CENTER PILLAR, UPPER OUTER LH
61339BSEAL, CENTER BODY PILLAR, INNER NO.1
61341CPILLAR, CENTER BODY, INNER UPPER RH
61342CPILLAR, CENTER BODY, INNER UPPER LH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61411PANEL, ROCKER, OUTER RH
sub61401-32080
61412PANEL, ROCKER, OUTER LH
sub61402-32060
61505REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, RH
61506REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
W(SPLIT SEAT)
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
W(SPLIT SEAT)
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61731BPANEL, ROOF SIDE, INNER RH
W(MOON ROOF)
61732BPANEL, ROOF SIDE, INNER LH
W(MOON ROOF)
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61741BREINFORCEMENT, BACK WINDOW OPENING, RH
61742BREINFORCEMENT, BACK WINDOW OPENING, LH
61815BCOVER, ROOF SIDE, INNER UPPER RH
61816BCOVER, ROOF SIDE, INNER UPPER LH
61818COVER, ROOF SIDE, INNER UPPER
61824PLATE, NOISE CONTROL, NO.1
75 X 92,TYPE B
70 X 90,TYPE B
60 X 60,TYPE A
61826APLATE, NOISE CONTROL, NO.3
sub61824-12110
62475BSEAL, ROOF SIDE, INNER
sub62151-20170
64312BRACKET, PACKAGE TRAY, RH
64313BRACKET, PACKAGE TRAY, LH
66243CPROTECTOR, REAR BODY, NO.1
9011906067
main90119-06067
9011906250
main90119-06250
9017908086
main90179-08086
9033330002
main90333-30002
9095001025
main90950-01025
9095001056
main90950-01056
9095001061
main90950-01061
9095001266
main90950-01266
9095001270
main90950-01270
9165140814
main91651-40814
66 parts on this diagram · 2 diagrams in section
