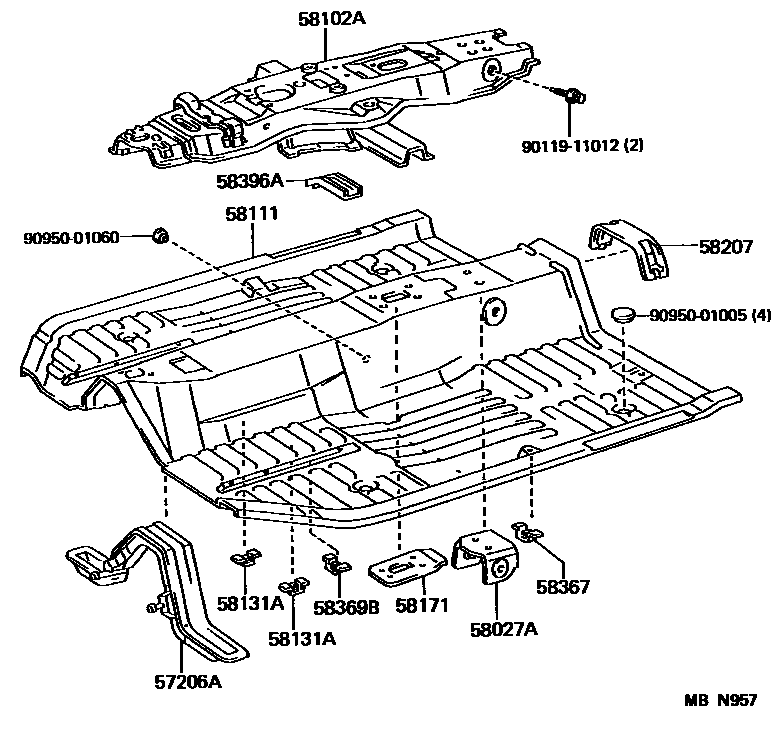

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1 0005 1

57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2

main57206-32010iSV21,VZV21198808-199106

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-32020iSV21,VZV21198808-199106

main58027-32040iSV25198808-199106

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-32050iSV25198808-199106

main58102-32901iSV21,VZV21198808-199106

58111PAN, FRONT FLOOR

main58111-32020iSV21,VZV21..4FC198808-199106

main58111-32030iSV21,VZV21..5F198808-199106

main58111-32040iSV25..4FC198808-199106

main58111-32050iSV25..5F198808-199008

58131ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-32010iSV21,VZV21198808-199106

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-32010iVZV21198808-199106

main58171-32010iSV2#198808-199106

58207BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1

main58207-32020iSV21,VZV21198808-199106

main58207-32030iSV25198808-199106

58367BRACKET, FUEL TUBE CLAMP

main58266-22040iSV2#,VZV21198808-199106

58369BBRACKET, FUEL TUBE, NO.3

main58369-32010iSV21,VZV21198808-199106

58396ABRACKET, WIRE HARNESS CLAMP

main58396-32010iSV21,VZV21198808-199106

9011911012

main90119-11012

9095001005

main90950-01005

9095001060

main90950-01060

13 parts on this diagram · 5 diagrams in section
