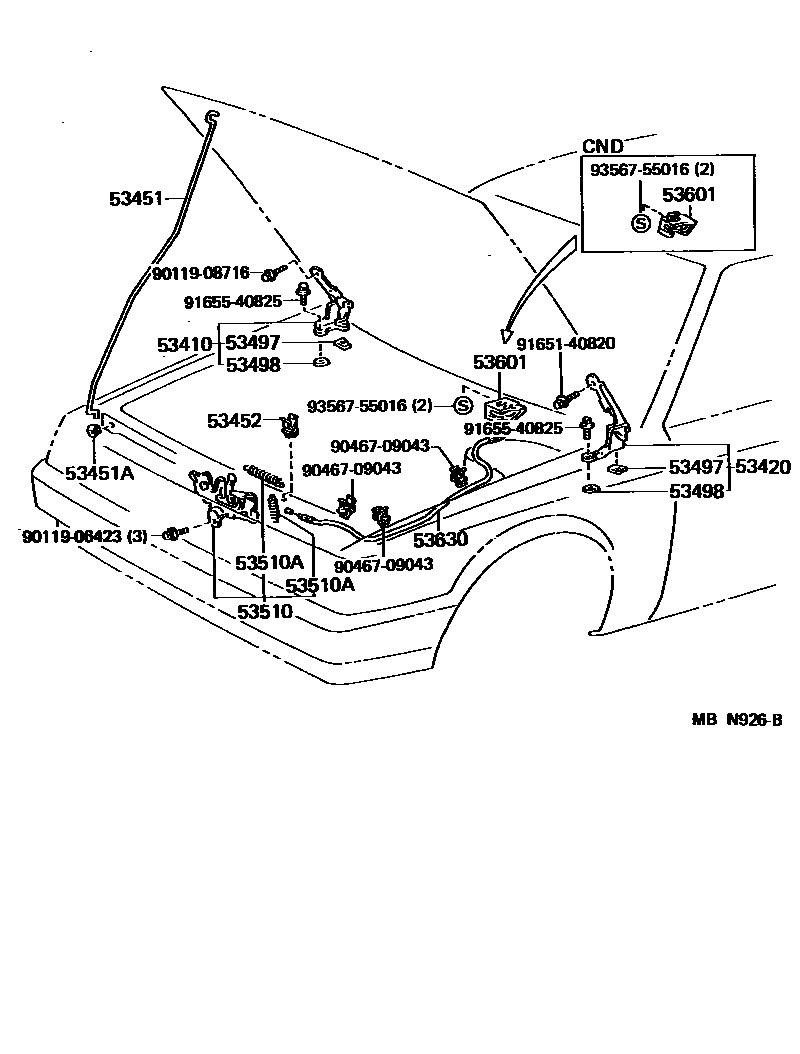

HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53451ROD, HOOD SUPPORT
53451AGROMMET(FOR HOOD SUPPORT ROD)
53452HOLDER, HOOD STAY
53497PAD, HOOD HINGE, NO.1
53498PAD, HOOD HINGE, NO.2
53510LOCK ASSY, HOOD
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,L=39.6,WD=9.0
WD=2.0,CW=17,L=60,WD=14.5
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
53630CABLE ASSY, HOOD LOCK CONTROL
9011906423
main90119-06423
9011908716
main90119-08716
9046709043
main90467-09043
9165140820
main91651-40820
9165540825
main91655-40825
9356755016
main93567-55016
17 parts on this diagram · 1 diagram in section
