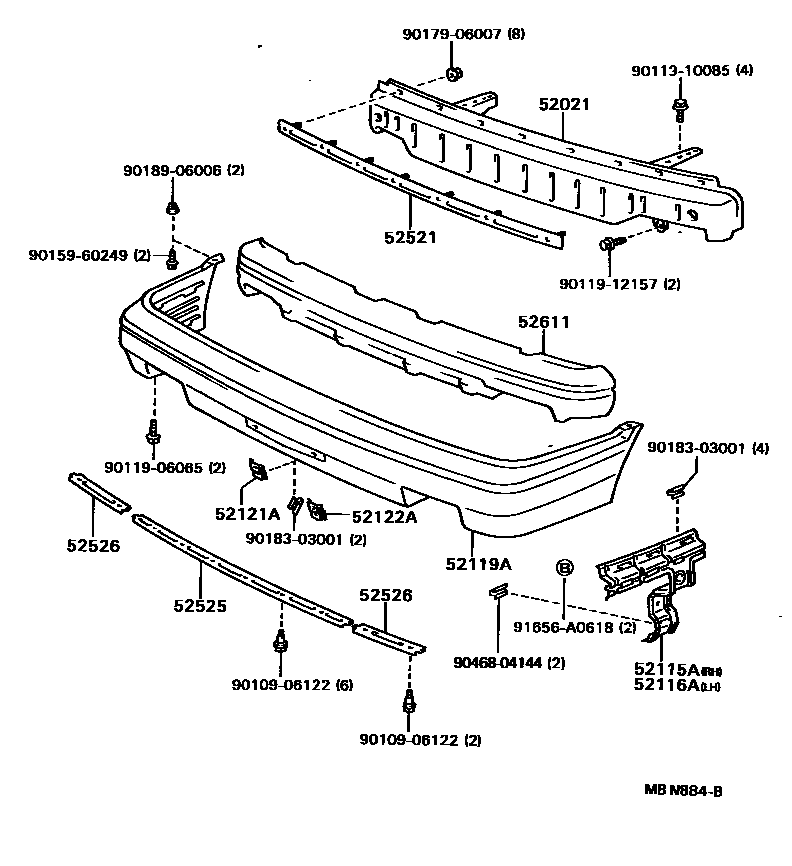

FRONT BUMPER & BUMPER STAY

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-32040iSV2#,VZV21198808-199106

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52061-32030iSV2#,VZV21198808-199106

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52062-32030iSV2#,VZV21198808-199106

52119ACOVER, FRONT BUMPER

main52119-32280iSV2#,VZV21..DX,STD198808-199106

main52119-32908iSV2#,VZV21..DX199008-199106

TREATED FOR PAINTING

52121ABRACKET, FRONT LICENSE PLATE MOUNTING, RH

main52121-32040iSV2#,VZV21198808-199106

52122ABRACKET, FRONT LICENSE PLATE MOUNTING, LH

main52122-32010iSV2#,VZV21198808-199106

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-32060iSV2#,VZV21198808-199106

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52525-32020iSV2#,VZV21198808-199106

52526RETAINER, FRONT BUMPER, LOWER SIDE

main52526-32040×2iSV2#,VZV21198808-199106

52611ABSORBER, FRONT BUMPER ENERGY

main52611-32070iSV2#,VZV21198808-199106

9010906122

main90109-06122

9011906065

main90119-06065

9011910085

main90119-10085

9011912157

main90119-12157

9015960249

main90159-60249

9017906007

main90179-06007

9018303001

main90183-03001

9018906006

main90189-06006

9046804144

main90468-04144

91656A0618

main91656-A0618

20 parts on this diagram · 1 diagram in section
