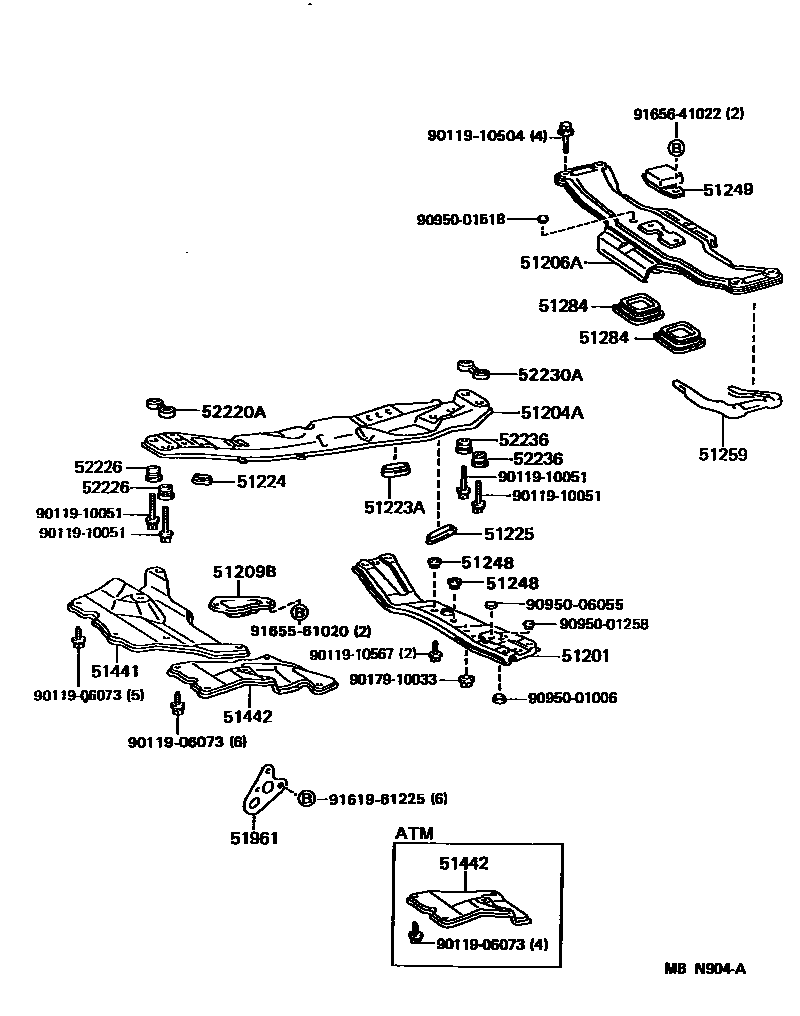

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-32020iSV21,VZV21¥12,100198808-199106

main51201-32030iSV25¥12,100198808-199106

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-32021iSV21,VZV21¥25,500198808-198904

sub51204-32022¥25,500

main51204-32022iSV21,VZV21¥25,500198904-199004

sub51204-32024¥25,500

sub90119-10567¥190

main51204-32024iSV21,VZV21¥25,500199004-199106

main51204-32041iSV25¥25,500198808-199106

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-20011iSV25¥36,200198808-199106

main51206-32010iSV21,VZV21¥46,600198808-199106

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-32030iSV25¥2,160198808-199106

51223ACOVER, ENGINE MOUNTING HOLE

main51223-32020iSV2#,VZV21¥330198808-199106

51224COVER, ENGINE MOUNTING HOLE, NO.2

main51224-32010iSV21,VZV21¥330198808-199106

51225COVER, ENGINE MOUNTING HOLE, NO.3

main51225-32010iSV21,VZV21¥390198808-199106

main51225-32020iSV25¥300198808-199106

51248SPACER, FLAME CROSSMEMBER

main51248-32010iSV21,VZV21¥190198808-199004

51249DAMPER, REAR SUSPENSION MEMBER

main51249-32010iSV21,VZV21¥5,900198808-199106

51259PROTECTOR, REAR SUSPENSION MEMBER EDGE

main51259-32010iSV21,VZV21¥1,120198808-199106

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-32010iSV21,VZV21¥520198808-199106

51441COVER, ENGINE UNDER, NO.1

main51441-32030iSV2#,VZV21¥5,700198808-199106

51442COVER, ENGINE UNDER, NO.2

main51442-32030iSV25..USA;SV25..5F..CND;SV21,VZV21..5F¥6,100198808-199106

main51442-32040iSV25..4FC..CND;SV21,VZV21..4FC¥5,100198808-199106

51961HOOK, NO.1

main51963-32010iSV2#,VZV21¥1,140198808-199106

52220ACUSHION ASSY, CENTER MEMBER MOUNTING, FRONT UPPER

main52220-32040iSV25¥1,840198808-199106

main52220-32050iSV21,VZV21¥1,840198808-199106

52226CUSHION, CENTER MEMBER MOUNTING, FRONT LOWER

main52226-32010iSV25¥670198808-199106

main52226-32030iSV21,VZV21¥670198808-199106

52230ACUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER

main52230-32030iSV25¥1,780198808-199106

main52230-32040iSV21,VZV21¥1,780198808-199106

52236CUSHION, CENTER MEMBER MOUNTING, REAR LOWER

main52236-32020iSV25¥710198808-199106

main52236-32030iSV21,VZV21¥670198808-199106

9011906073

main90119-06073¥120

9011910051

main90119-10051¥210

9011910504

main90119-10504¥240

9011910567

main90119-10567¥190

9017910033

main90179-10033¥130

9095001006

main90950-01006¥260

9095001258

main90950-01258¥170

9095001518

main90950-01518¥110

9095006055

main90950-06055¥200

9161961225

main91619-61225¥200

9165561020

main91655-61020¥190

9165641022

main91656-41022¥170

30 parts on this diagram · 2 diagrams in section
