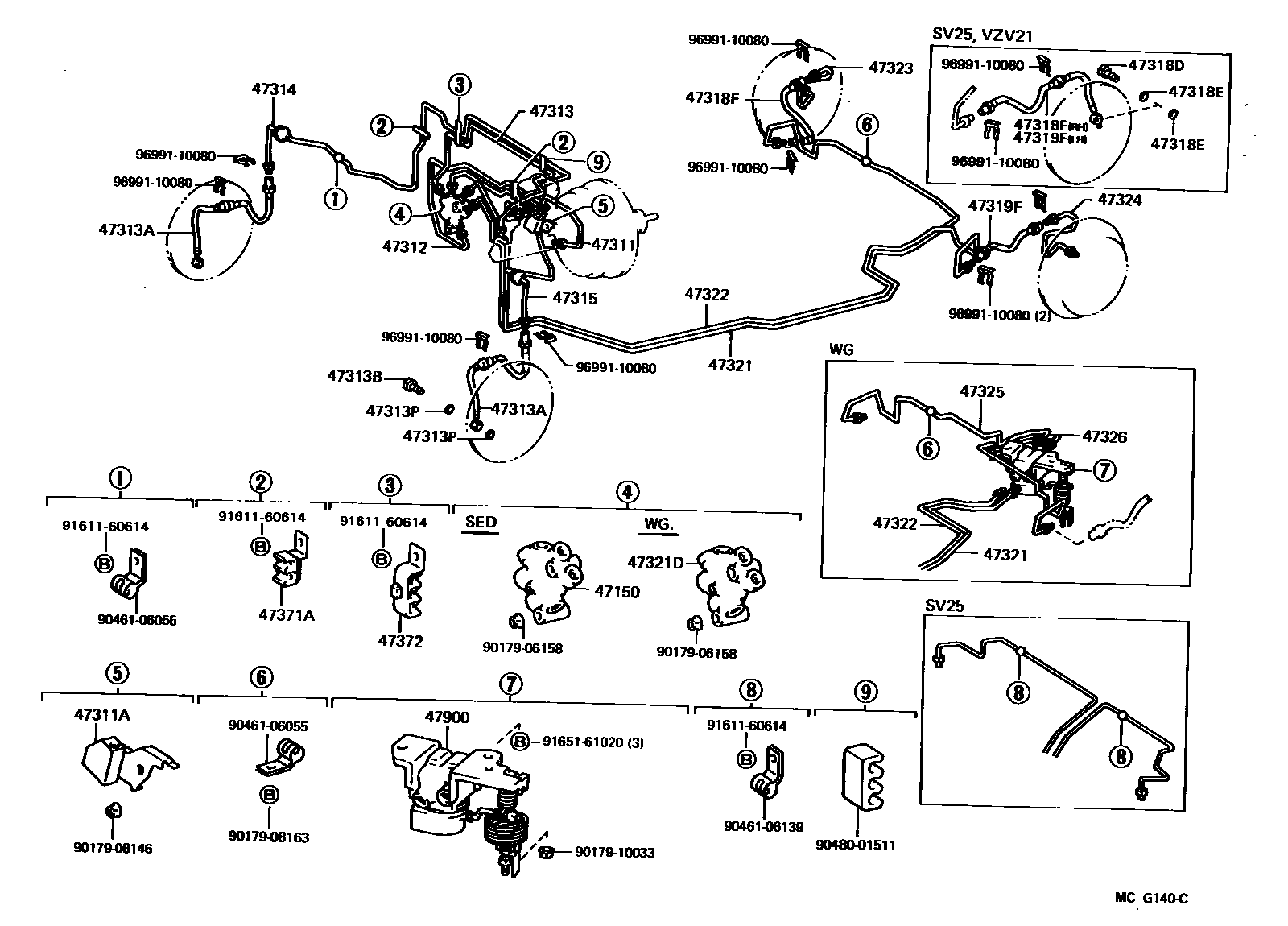

BRAKE TUBE & CLAMP

0001 1 0002 1W(ANTI-LOCK BRAKE SYSTEM) 0003 1W(ANTI-LOCK BRAKE SYSTEM)

47150VALVE ASSY, PROPORTIONING

main47150-12100iVZV21..SED..LE¥13,600198908-199106

W(*66)

main47150-16050iSV21..SED¥16,800198909-199106

main47150-20130iSV21..SED¥14,100198808-198909

sub47150-12240¥16,800

main47150-20140iVZV21..SED¥16,800198808-199106

main47150-20160iSV25¥16,700198808-199106

main47150-32060iVZV21..SED..LE¥16,700198808-198908

W(*66)

main47150-32070iSV25..LE¥16,700198808-199106

W(*66)

47311TUBE, FRONT BRAKE, NO.1

main47311-32060iSV2#,VZV21¥410198808-199106

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10147iSV25,VZV21..LE¥1,000198808-199106

W(*66)

main90412-10163iVZV21..LE¥670198908-199106

W(*66)

main90413-10165iSV2#,VZV21¥1,240198808-199106

47312TUBE, FRONT BRAKE, NO.2

main47312-32101iSV2#,VZV21¥1,340198808-199106

47313TUBE, FRONT BRAKE, NO.3

main47313-32090iSV2#,VZV21¥1,120198808-199106

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02496iSV2#,VZV21¥2,650198808-199106

sub90947-02987

main90947-02540iSV25..LE¥2,630198808-199106

W(*66)

sub90947-02987

main90947-02540iSV2#,VZV21¥2,630198908-198911

sub90947-02987

main90947-02593iVZV21..LE¥3,030198908-199106

W(*66)

sub90947-02986

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iSV2#,VZV21¥200198808-199106

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iSV2#,VZV21¥100198808-199106

47314TUBE, FRONT BRAKE, NO.4

main47314-32091iSV2#,VZV21¥1,830198808-199106

47315TUBE, FRONT BRAKE, NO.5

main47315-32070iSV2#,VZV21¥1,120198808-199106

main47315-32100iSV25,VZV21..LE¥1,120198808-199106

W(*66)

47318TUBE, FRONT BRAKE, NO.8

main47318-32010iSV25,VZV21..LE¥1,680198808-199106

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015iSV25,VZV21¥200198808-199106

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main90430-10074iSV25,VZV21¥100198808-199106

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02497iSV21¥1,960198808-199106

main90947-02498iVZV21¥2,870198808-199106

main90947-02549iSV25¥2,470198808-199106

sub90947-02939

47319TUBE, FRONT BRAKE, NO.9

main47319-32020iSV25,VZV21..LE¥1,120198808-199106

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02497iSV21¥1,960198808-199106

main90947-02498iVZV21¥2,870198808-199106

main90947-02549iSV25¥2,470198808-199106

sub90947-02939

47321TUBE, REAR BRAKE, NO.1

main47321-32060iSV21,VZV21..WG¥4,540198808-199106

main47321-32100iSV25¥4,810198808-199106

main47321-32110iSV21,VZV21..SED¥5,700198808-199106

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90413-10205iSV21,VZV21..WG¥1,440198808-199106

47322TUBE, REAR BRAKE, NO.2

main47322-32050iSV21,VZV21..WG¥4,050198808-199106

main47322-32090iSV25¥4,650198808-199106

main47322-32100iSV21,VZV21..SED¥4,430198808-199106

47323TUBE, REAR BRAKE, NO.3

main47323-32050iSV21¥600198808-199106

main47323-32070iSV25,VZV21..LE¥4,440198808-199106

47324TUBE, REAR BRAKE, NO.4

main47324-32050iSV21¥600198808-199106

main47324-32070iSV25,VZV21..LE¥5,100198808-199106

47325TUBE, REAR BRAKE, NO.5

main47325-32030iSV21,VZV21..WG¥1,680198808-199106

47326TUBE, REAR BRAKE, NO.6

main47326-32010iSV21,VZV21..WG¥1,490198808-199106

47371ACLAMP, BRAKE TUBE, NO.1

main47371-30010iSV25,VZV21..LE¥880198808-199106

W(*66)

47372CLAMP, BRAKE TUBE, NO.2

main47371-30030iSV2#,VZV21¥1,080198808-199106

47900VALVE ASSY, LOAD SENSING W/SPRING

main47900-32011iSV21..WG198808-198909

main47900-32021iVZV21..WG¥18,900198808-199106

main47900-32030iVZV21..WG..LE198808-199106

W(*66)

main47900-32050iSV21..WG¥24,200198909-199106

9017906158

main90179-06158¥70

9017908146

main90179-08146¥180

9017908163

main90179-08163¥150

9017910033

main90179-10033¥130

9046106055

main90461-06055¥220

9046106139

main90461-06139¥620

9048001511

main90480-01511¥250

9161160614

main91611-60614¥180

9165161020

main91651-61020¥130

9699110080

main96991-10080¥100
