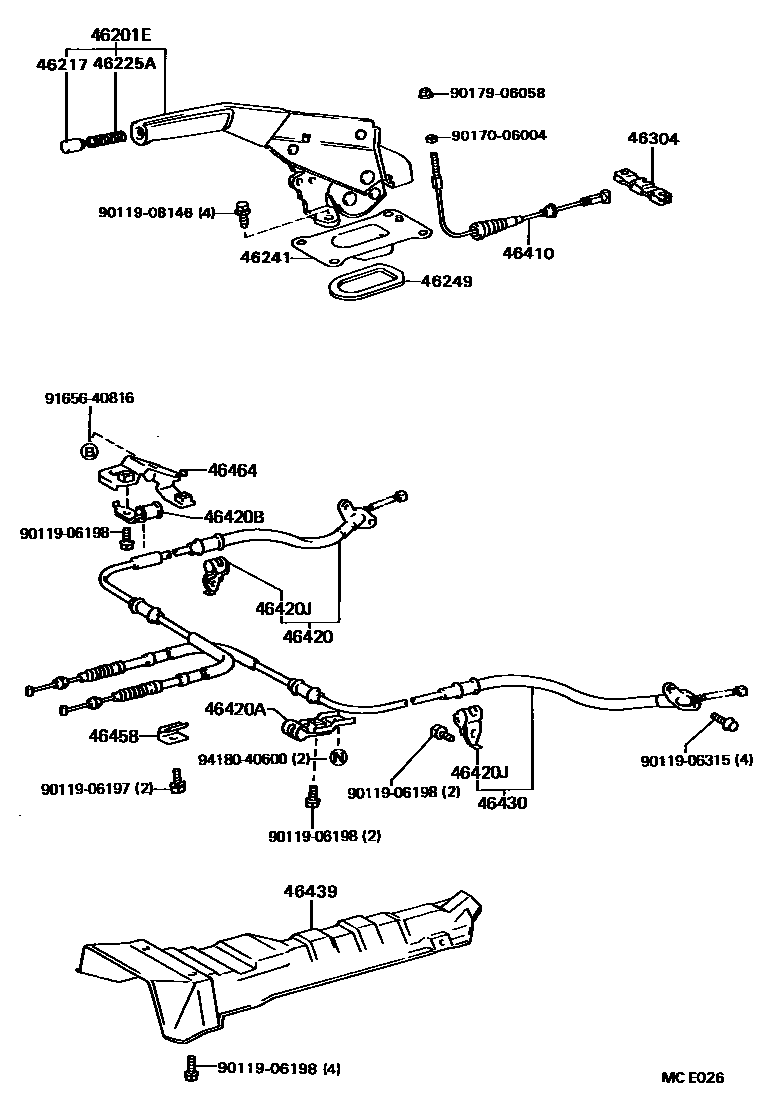

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-32081-02iSV25,VZV21..LE..USA198808-199106

MAROON,TRIM3#

sub46201-32081

main46201-32081-03iSV25,VZV21..LE198808-199106

MEDIUM GRAY,TRIM1#

sub46201-32081

main46201-32081-04iSV25,VZV21..LE198808-199106

DARK BLUE,TRIM8#

sub46201-32081

main46201-32081-06iSV25,VZV21..LE198808-199106

BROWN,TRIM4#

sub46201-32081

main46201-32091-02iSV21..(DX,STD)..USA198808-199106

MAROON,TRIM3#

sub46201-32091

main46201-32091-02iSV21..(DX,LE)..USA198908-199106

MAROON

sub46201-32091

main46201-32091-03iSV21..LE199008-199106

MEDIUM GRAY

sub46201-32091

main46201-32091-03iSV21..LE198808-199106

MEDIUM GRAY,TRIM1#

sub46201-32091

main46201-32091-04iSV21198808-199106

DARK BLUE,TRIM8#

sub46201-32091

main46201-32091-06iSV21..DX,LE198808-199106

BROWN,TRIM4#

sub46201-32091

main46201-32111-02iVZV21..SED..LE..USA198808-199106

LEATHER PACKAGE,MAROON,TRIM3#

sub46201-32111

main46201-32111-04iVZV21..SED..LE198808-199106

LEATHER PACKAGE,DARK BLUE,TRIM8#

sub46201-32111

main46201-32121-02iSV21..SED..LE..USA198808-199106

LEATHER PACKAGE,MAROON,TRIM3#

sub46201-32121

main46201-32121-04iSV21..SED..LE198808-199106

LEATHER PACKAGE,DARK BLUE,TRIM8#

sub46201-32121

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020-B0iSV2#,VZV21..LE198808-199106

MEDIUM GRAY,TRIM1#

sub46217-12020

sub46217-16030

main46217-12020-B0iSV2#,VZV21..DX,LE198908-199106

MEDIUM GRAY

sub46217-12020

sub46217-16030

main46217-12020-D0iSV2#,VZV21..(DX,LE)..USA198808-199106

MAROON,TRIM3#

sub46217-12020

sub46217-16030

main46217-12020-E1iSV2#,VZV21..LE198808-199106

BROWN,TRIM4#

sub46217-12020

sub46217-16030

main46217-12020-J0iSV2#,VZV21..DX,LE198808-199106

DARK BLUE,TRIM8#

sub46217-12020

sub46217-16030

main46217-32010-06iSV21,VZV21..SED..LE198808-199106

LEATHER PACKAGE,BROWN,TRIM4#

sub46217-32010

main46217-32010-13iSV21,VZV21..SED..LE198808-199106

LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

sub46217-32010

main46217-32010-D0iSV21,VZV21..SED..LE..USA198808-199106

LEATHER PACKAGE,MAROON,TRIM3#

sub46217-32010

main46217-32010-J0iSV21,VZV21..SED..LE198808-199106

LEATHER PACKAGE,DARK BLUE,TRIM8#

sub46217-32010

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iSV2#,VZV21198808-199106

46241BOOT, PARKING BRAKE LEVER

main46241-32010iSV2#198808-199106

main46241-32030iVZV21198808-199106

46249SHIELD, PARKING BRAKE HOLE

main46249-32010iSV2#,VZV21198808-199106

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-32010iSV21,VZV21198912-199106

main46341-32020iSV2#,VZV21198808-198912

sub46341-32010

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-32010iSV25,VZV21198808-199106

main46410-32030iSV21198808-199106

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-32130iSV25198808-199106

main46420-39055iVZV21198808-199106

main46420-39065iSV21198808-199106

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01331iSV21,VZV21198808-198906

sub90949-01605

main90949-01368iSV25198808-199106

RH

main90949-01369iSV25198808-199106

LH

main90949-01605iSV21,VZV21198906-199106

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01332iSV21,VZV21198808-198906

sub90949-01606

main90949-01370iSV25198808-199106

RH

main90949-01371iSV25198808-199106

LH

main90949-01606iSV21,VZV21198906-199106

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main90949-01330iSV21,VZV21198808-198906

sub90949-01604

main90949-01604iSV21,VZV21198906-199106

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-32130iSV25198808-199106

main46430-39055iVZV21198808-199106

main46430-39065iSV21198808-199106

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-32020iVZV21198808-199106

main46439-32040iVZV21..USA199009-199106

CARIFORNIA SPEC

46458RETAINER, CABLE

main46458-20020iSV2#,VZV21198808-198906

sub46458-50010

main46458-50010iSV25198906-199106

46464PLATE, CABLE CLAMP SUPPORT

main46464-32010iSV21,VZV21198808-198906

sub46464-32020

main46464-32020iSV21,VZV21198906-199106

9011906197

main90119-06197

9011906198

main90119-06198

9011906315

main90119-06315

9011908146

main90119-08146

9017006004

main90170-06004

9017906058

main90179-06058

9165640816

main91656-40816

9418040600

main94180-40600

23 parts on this diagram · 2 diagrams in section
