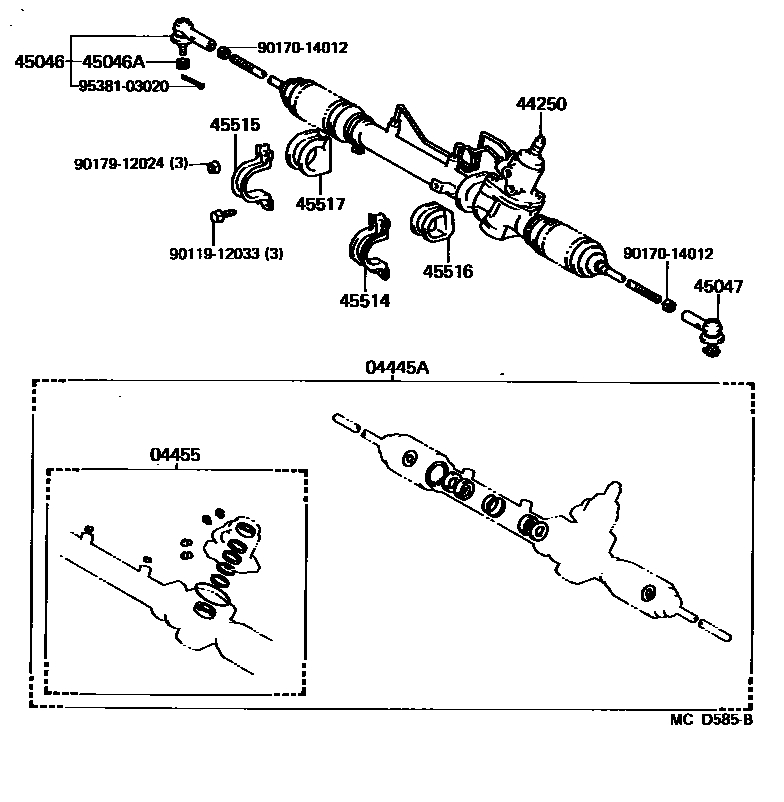

FRONT STEERING GEAR & LINK

0001 1W/POWER STEERING 0002 1W/POWER STEERING

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-32030iSV2#,VZV21198808-199106

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-32020iSV2#,VZV21198808-199106

sub04455-32022

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-20161iVZV21198808-199005

sub44250-20162

sub45517-32050

main44250-20163iVZV21199007-199008

main44250-32070iSV2#198808-199005

sub44250-32071

sub45517-32050

main44250-32072iSV2#199007-199008

main44250-32200iSV2#199008-199106

main44250-32210iVZV21199008-199106

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iSV2#,VZV21198808-199106

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iSV2#,VZV21198808-199106

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iSV2#,VZV21198808-199106

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-32090iSV2#,VZV21198808-199007

main45514-32091iSV2#,VZV21199007-199009

sub45514-32092

main45514-32092iSV2#,VZV21199009-199106

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-32080iSV2#,VZV21198808-199106

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-32020iSV2#,VZV21198808-199007

main45516-32040iSV2#,VZV21199007-199106

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-32030iSV2#,VZV21198808-199005

main45517-32050iSV2#,VZV21199005-199007

main45517-32060iSV2#,VZV21199007-199106

9011912033

main90119-12033

9017014012

main90170-14012

9017912024

main90179-12024

9538103020

main95381-03020

14 parts on this diagram · 2 diagrams in section
