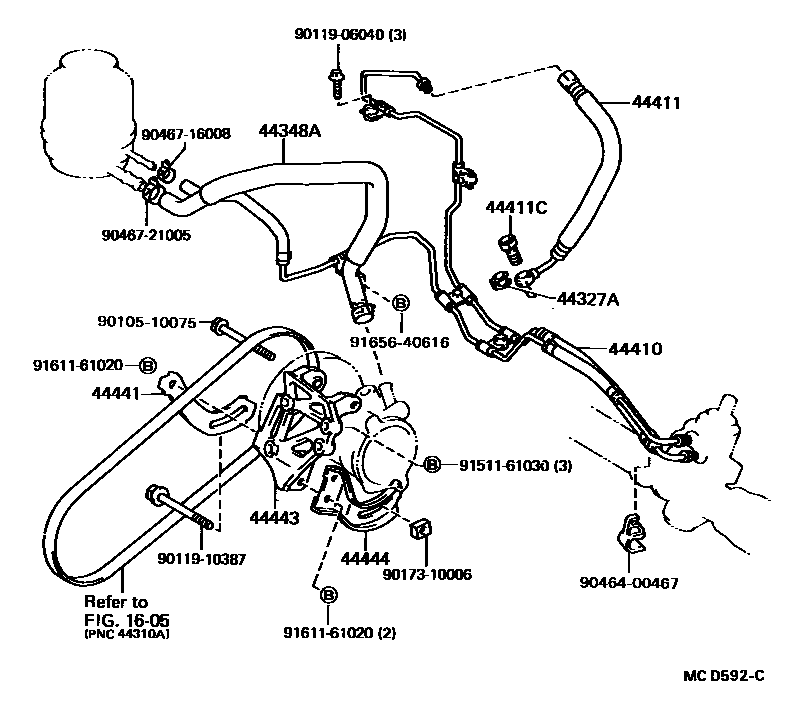

POWER STEERING TUBE

0001 1 0002 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iSV2#,VZV21198808-199106

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-32090iVZV21198808-199106

main44348-32100iSV2#198808-199106

44410TUBE ASSY, PRESSURE FEED

main44410-32180iSV2#198808-199106

main44410-32320iVZV21198808-199106

sub44410-32321

44411HOSE, PRESSURE FEED

main44411-32050iSV2#198808-199106

main44411-32070iVZV21198808-199106

sub44411-32071

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16008iSV2#,VZV21198808-199106

44441BRACKET, PUMP, FRONT

main44441-32010iSV2#198808-199106

44443BRACKET, PUMP

main44443-20050iSV2#198808-199106

main44443-32041iVZV21198808-199106

44444STAY, PUMP, REAR

main44444-20030iSV2#198808-199106

9010510075

main90105-10075

9011906040

main90119-06040

9011910387

main90119-10387

9017310006

main90173-10006

9046400467

main90464-00467

9046716008

main90467-16008

9046721005

main90467-21005

9151161030

main91511-61030

9161161020

main91611-61020

9165640616

main91656-40616

19 parts on this diagram · 2 diagrams in section
