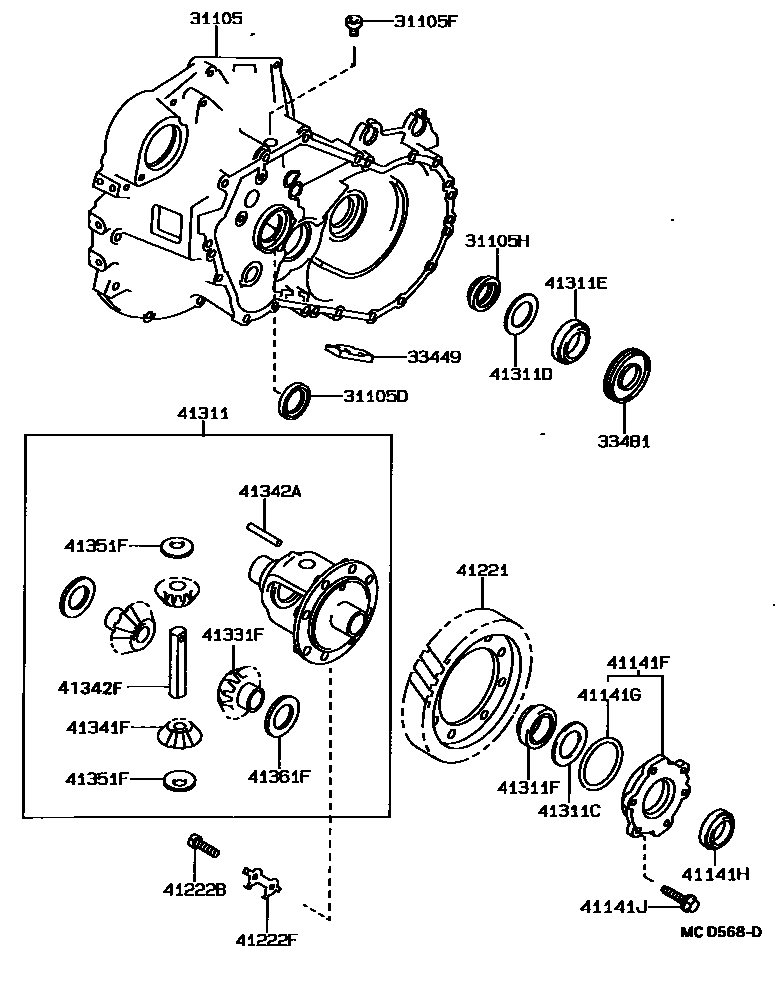

FRONT AXLE HOUSING & DIFFERENTIAL
31105CASE SUB-ASSY, TRANSAXLE(MTM)
31105FPLUG(FOR TRANSAXLE CASE)
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=27
41141FRETAINER, FRONT DIFFERENTIAL SIDE BEARING
41141GRING, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
41141JBOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
41221GEAR, FRONT DIFFERENTIAL RING
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=1.90,MARK 01
T=1.95,MARK 02
T=2.00,MARK 03
T=2.05,MARK 04
T=2.10,MARK 05
T=2.15,MARK 06
T=2.20,MARK 07
T=2.25,MARK 08
T=2.30,MARK 09
T=2.35,MARK 10
T=2.40,MARK 11
T=2.45,MARK 12
T=2.50,MARK 13
T=2.55,MARK 14
T=2.60,MARK 15
T=2.65,MARK 16
T=2.70,MARK 17
T=2.75,MARK 18
T=2.80,MARK 19
T=2.00,MARK 0
T=2.05,MARK 1
T=2.10,MARK 2
T=2.15,MARK 3
T=2.20,MARK 4
T=2.25,MARK 5
T=2.30,MARK 6
T=2.35,MARK 7
T=2.40,MARK 8
T=2.45,MARK 9
T=2.50,MARK A
T=2.55,MARK B
T=2.60,MARK C
T=2.65,MARK D
T=2.70,MARK E
T=2.75,MARK F
T=2.80,MARK G
T=2.85,MARK H
41311DSHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
T=2.40,MARK 11,T=2.40
T=1.90,MARK 01
T=1.95,MARK 02
T=2.00,MARK 03
T=2.05,MARK 04
T=2.10,MARK 05
T=2.15,MARK 06
T=2.20,MARK 07
T=2.25,MARK 08
T=2.30,MARK 09
T=2.35,MARK 10
T=2.40,MARK 11
T=2.45,MARK 12
T=2.50,MARK 13
T=2.55,MARK 14
T=2.60,MARK 15
T=2.65,MARK 16
T=2.70,MARK 17
T=2.75,MARK 18
T=2.80,MARK 19
T=1.0
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341FPINION, FRONT DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.95,MARK A
T=1.00,MARK B
T=1.05,MARK C
T=1.10,MARK D
T=1.15,MARK E
T=1.20,MARK F
T=1.25,MARK G
T=1.30,MARK H
T=1.35,MARK J
T=1.40,MARK K
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
T=0.80,MARK FA
T=0.90,MARK FB
T=1.00,MARK FC
T=1.10,MARK FD
T=1.20,MARK FE
T=1.30,MARK FF
T=1.40,MARK FG
24 parts on this diagram · 7 diagrams in section
