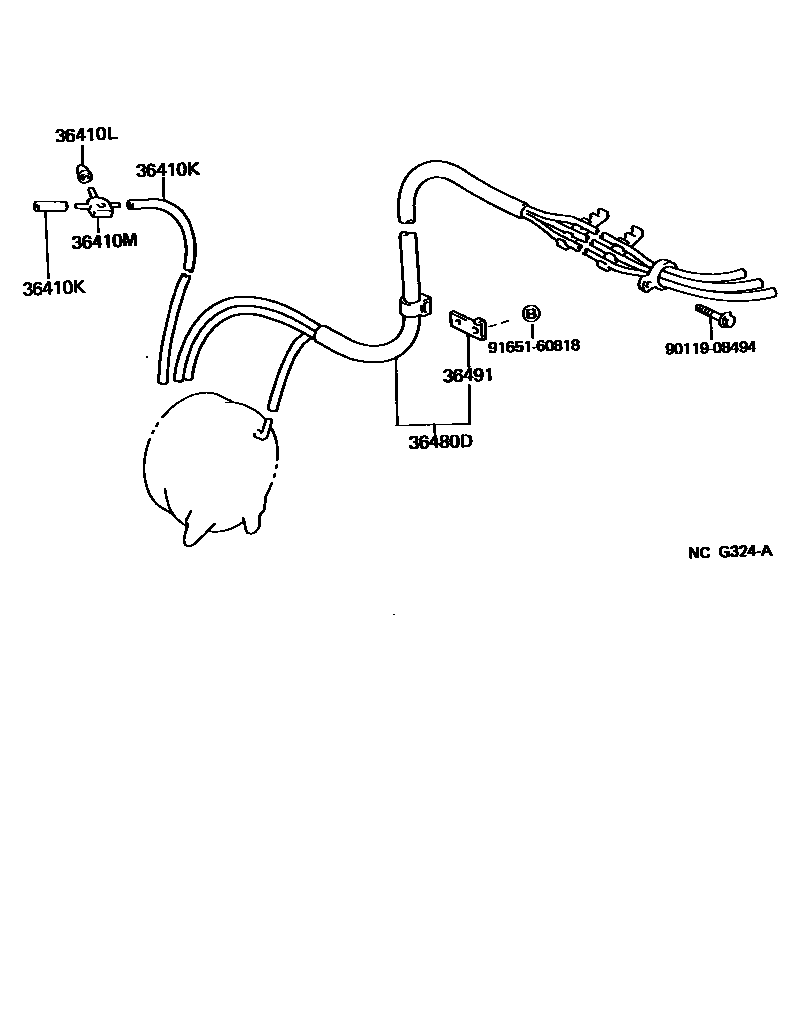

TRANSFER VACUUM PIPING

36410KHOSE, VACUUM (FOR TRANSFER VACUUM)

main90999-92002iSV25..5F198808-199008

main90999-92003iSV25..5F198808-199008

36410LPLUG (FOR TRANSFER VACUUM)

main90339-03005iSV25..5F198808-199008

36410MWAY, 3 (FOR TRANSFER VACUUM)

main90413-04005iSV25..5F198808-199008

36480DTUBE ASSY, TRANSFER VACUUM

main36480-32011iSV25..5F198808-199008

36491CLAMP, TRANSFER VACUUM TUBE, N0.1

main36491-32010iSV25..5F198808-199008

9011908494

main90119-08494

9165160818

main91651-60818

7 parts on this diagram · 1 diagram in section
