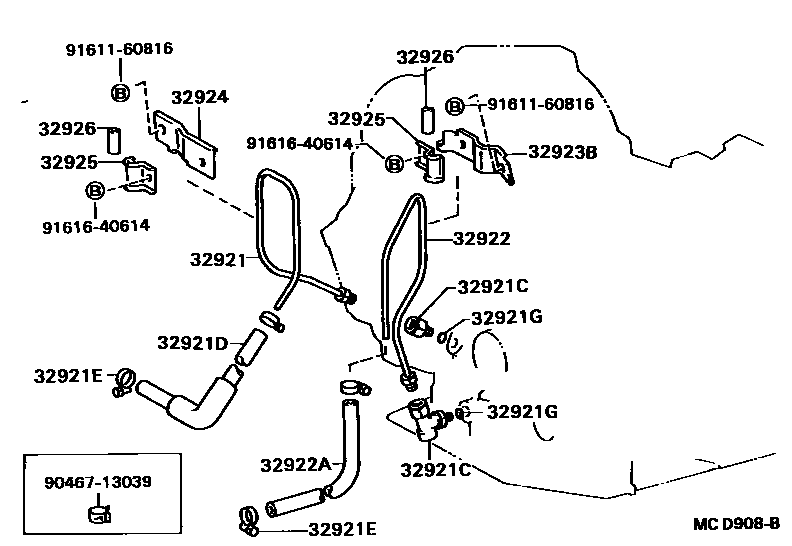

OIL COOLER & TUBE (ATM)

0001 1 0002 1 0003 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-32050iSV21..4FC198808-199003

main32921-32051iSV21..4FC198808-199003

main32921-32052iSV21..4FC199003-199106

sub32921-32051

main32921-32071iVZV21..4FC198808-199010

sub32921-32072

main32921-32072iVZV21..4FC199010-199106

main32921-32100iSV25..4FC198808-199010

sub32921-32120

main32921-32120iSV25199010-199106

32921CUNION(FOR OIL COOLER TUBE)

main32901-32010iSV21..4FC198808-199106

OUTLET

main32901-32020iSV25,VZV21..4FC198808-199004

OUTLET

main32901-32050iSV25,VZV21..4FC199004-199106

OUTLET

main32918-32010iSV25..4FC198808-199106

INLET

main90404-14007iSV21..4FC198808-199106

INLET

main90404-16021iVZV21..4FC198808-199106

INLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-32030iSV21..4FC198808-199003

main32941-32051iSV21..4FC198808-199003

sub32941-32140

main32941-32060iVZV21..4FC198808-199010

sub32941-32150

main32941-32080iSV25..4FC198808-198809

sub32941-32081

main32941-32081iSV25..4FC198809-199010

sub32941-32082

main32941-32082iSV25199010-199106

main32941-32140iSV21..4FC198808-199106

main32941-32150iVZV21..4FC199010-199106

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-18002iSV21..4FC198808-199003

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iSV21..4FC198808-199106

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-32020iSV25,VZV21..4FC198808-199010

sub32922-32021

main32922-32021iSV25,VZV21..4FC199010-199106

main32922-32040iSV21..4FC198808-198902

sub32922-32041

main32922-32041iSV21..4FC198902-199003

main32922-32042iSV21..4FC199003-199106

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15042iSV21..4FC199003-199106

main90445-16026iSV21..4FC198808-199003

main90445-17076iSV25,VZV21..4FC198808-199010

sub90445-17105

main90445-17105iSV25,VZV21..4FC199010-199106

sub90445-17103

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-20090iSV21..4FC198808-199106

main32923-32030iSV25..4FC198808-199106

main32923-32040iVZV21..4FC198808-199106

32924CLAMP, OIL COOLER TUBE, NO.2

main32923-20110iSV21..4FC198909-198910

sub32923-20111

main32923-20111iSV21..4FC198910-199106

main32923-32021iSV21..4FC198808-198909

main90462-12044iVZV21..4FC198808-199106

main90462-12071iSV25..4FC198808-199106

32925CLAMP, OIL COOLER TUBE, NO.3

main32923-32060iSV25..4FC198808-199106

main90461-06207iVZV21..4FC198808-199106

sub96221-24914

main90462-10082iSV21..4FC198808-199106

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30011iSV21..4FC198808-199106

L=25,ID=8

main32926-32010iSV25..4FC198808-199106

L=40,ID=10

9046713039

main90467-13039

9161160816

main91611-60816

9161640614

main91616-40614

14 parts on this diagram · 3 diagrams in section
