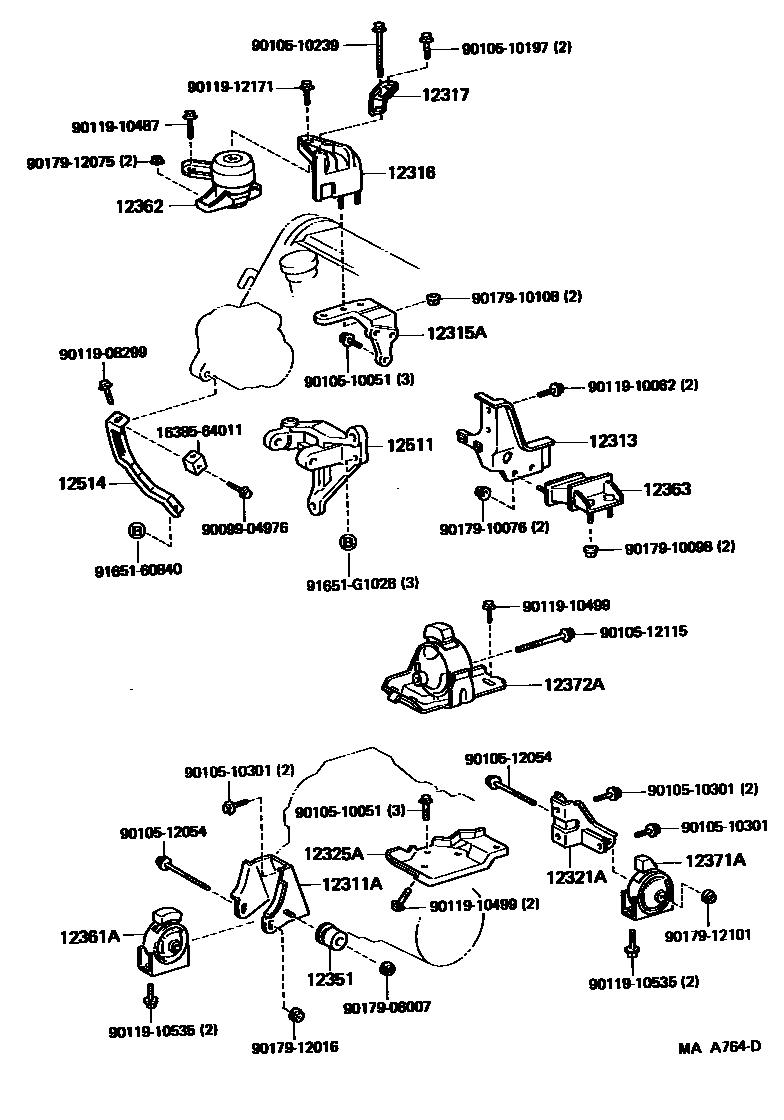

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-62010i2VZFE..VZV21198808-199106

main12311-74030i3SFE..SV21198808-199106

main12311-74050i3SFE..SV25198808-199106

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-62010i2VZFE..VZV21198808-199106

main12313-74020i3SFE..SV21198808-198905

sub12313-74021

main12313-74050i3SFE..SV21198905-199106

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-62020i2VZFE..VZV21198808-199106

main12315-74030i3SFE..SV25198808-199106

main12315-74060i3SFE..SV21198808-199106

sub12315-74061

12316BRACKET, ENGINE MOUNTING, NO.2 RH

main12316-62010i2VZFE..VZV21198808-199106

sub12316-62011

main12316-74010i3SFE..SV21198808-199106

12317STAY, ENGINE MOUNTING, RH

main12317-62020i2VZFE..VZV21198808-199106

main12317-74010i3SFE..SV25..4FC198810-199106

main12317-74060i3SFE..SV21;3SFE..SV25..5F198810-199106

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-62010i2VZFE..VZV21..5F198808-199106

main12321-62030i2VZFE..VZV21..4FC198808-199104

main12321-62090i2VZFE..VZV21..4FC199104-199106

main12321-64110i3SFE..SV21..5F198808-199106

main12321-74060i3SFE..SV25..5F198808-199008

main12321-74110i3SFE..SV25..4FC198808-199106

main12321-74130i3SFE..SV21..4FC198808-199106

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-62010i3SFE..SV25..5F198808-199106

main12325-62020i3SFE..SV25..4FC198808-199106

main12325-74031i3SFE..SV21..5F198808-199106

main12325-74041i3SFE..SV21..4FC198808-199106

12351DAMPER, ENGINE MOUNTING

main12351-63010i3SFE..SV25..5F198808-199106

NO.1

main12351-64020i3SFE..SV21..4FC198808-199106

NO.1

main12351-74020i3SFE..SV25..4FC198808-199106

NO.2

main12351-74051i3SFE..SV21..4FC198808-199106

NO.2

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-62011i2VZFE..VZV21..5F198808-199106

main12361-62020i3SFE..SV21..4FC198808-199106

sub12361-64120

main12361-74010i3SFE..SV25..5F198808-199008

sub12361-74150

main12361-74100i3SFE..SV21..5F198808-199106

sub12361-74020

main12361-74120i3SFE..SV25..4FC198808-199106

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-62020i2VZFE..VZV21198808-199106

main12362-74060i3SFE..SV25198808-199106

main12362-74110i3SFE..SV21198808-199106

12363INSULATOR, ENGINE MOUNTING, CENTER

main12363-74010i2VZFE..VZV21198808-199106

MARUYASU

main12363-74030i3SFE..SV21198808-199106

TOGO GOMU

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-62011i2VZFE..VZV21..5F198808-199106

main12371-62020i2VZFE..VZV21..4FC198808-199106

main12371-74130i3SFE..SV25..4FC198808-199106

main12371-74140i3SFE..SV21..5F198808-199106

main12371-74150i3SFE..SV21..4FC198808-199106

sub12371-64100

main12371-74170i3SFE..SV25..5F198808-199008

sub12371-74060

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-62010i2VZFE..VZV21..5F198808-199106

sub12372-62030

main12372-62020i2VZFE..VZV21..4FC198808-199106

sub12372-62040

main12372-74080i3SFE..SV25..5F198808-199008

main12372-74150i3SFE..SV25..4FC198808-198810

main12372-74151i3SFE..SV25..4FC198810-199106

main12372-74160i3SFE..SV21..5F198808-199106

main12372-74170i3SFE..SV21..4FC198808-199106

12511BRACKET, ALTERNATOR, NO.1

main12511-74020i3SFE..SV2#198808-199106

sub12511-74051

12514BAR, ALTERNATOR BELT ADJUSTING

main12514-74010i3SFE..SV2#198808-199103

main12514-74011i3SFE..SV2#199103-199106

sub12514-74012

sub91621-60845

1638564011SLIDER, FAN BELT ADJUSTING

main16385-64011

9009904976

main90099-04976

9010510051

main90105-10051

9010510197

main90105-10197

9010510239

main90105-10239

9010510301

main90105-10301

9010512054

main90105-12054

9010512115

main90105-12115

9011908299

main90119-08299

9011910062

main90119-10062

9011910487

main90119-10487

9011910499

main90119-10499

9011910535

main90119-10535

9011912171

main90119-12171

9017906007

main90179-06007

9017910076

main90179-10076

9017910098

main90179-10098

9017910108

main90179-10108

9017912016

main90179-12016

9017912075

main90179-12075

9017912101

main90179-12101

9165160840

main91651-60840

91651G1028

main91651-G1028

38 parts on this diagram · 6 diagrams in section
