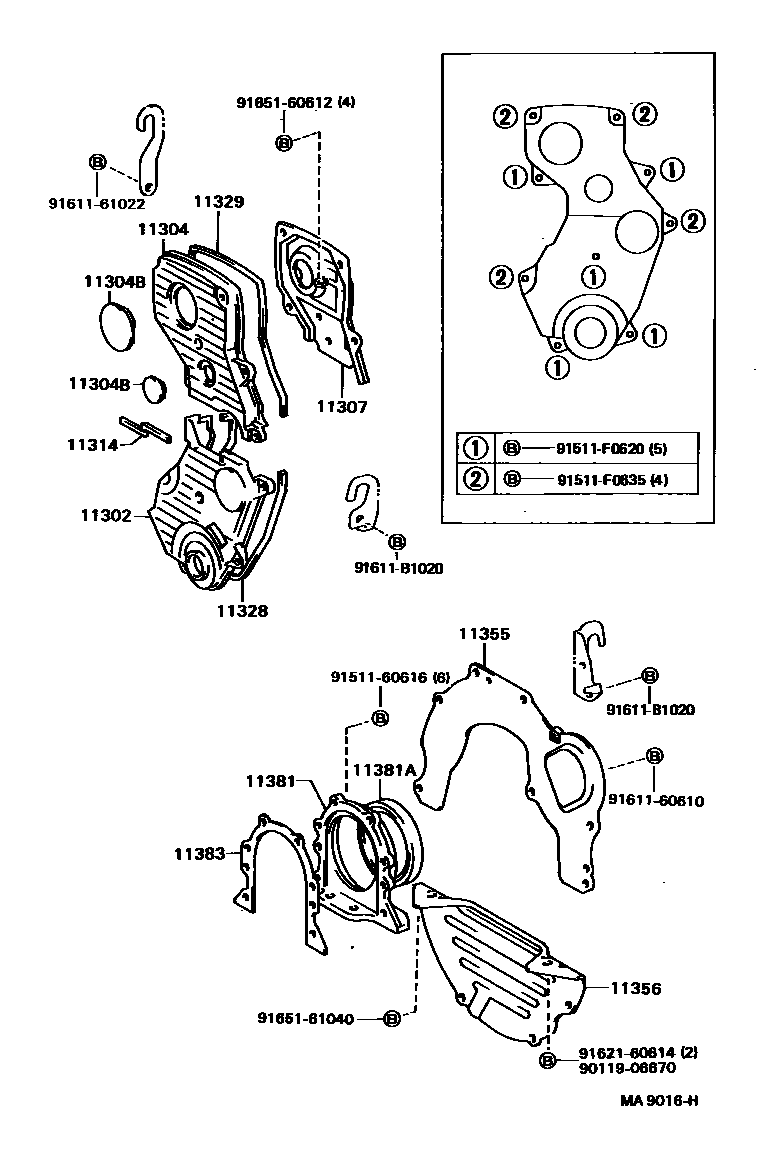

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-62020i2VZFE..VZV21198808-199106

main11302-74010i3SFE..SV2#198808-198906

sub11302-74011

main11302-74011i3SFE..SV2#198906-199106

11304COVER, TIMING CHAIN OR BELT, NO.2

main11303-62020i2VZFE..VZV21198808-199106

main11303-74010i3SFE..SV2#198808-199106

11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)

main90950-01489i3SFE..SV2#198808-199106

OD=33,OD=34

main90950-01497i3SFE..SV2#198808-199106

OD=76,OD=76

main90950-01554i2VZFE..VZV21198808-199106

sub90950-01497

11307COVER, SUB-ASSY, TIMING BELT, NO.3

main11304-74010i3SFE..SV2#198808-199106

11314GASKET, TIMING CHAIN NO.2 COVER

main11319-62010i2VZFE..VZV21198808-199105

sub11319-62020

main11319-62020i2VZFE..VZV21199105-199106

main11319-63010i3SFE..SV2#198808-199106

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-62020i2VZFE..VZV21198808-199106

main11328-74010i3SFE..SV2#198808-199106

11329GASKET, TIMING GEAR REAR COVER

main11329-62010i2VZFE..VZV21198808-199106

main11329-74010i3SFE..SV2#198808-199106

11355PLATE, REAR END

main11355-62010i2VZFE..VZV21198808-199106

main11355-74010i3SFE..SV21198808-199106

main11355-74040i3SFE..SV25198808-199106

11356PLATE, REAR END, NO.2

main11356-62010i2VZFE..VZV21198808-199106

main11356-63030i3SFE..SV2#198808-198907

sub11356-63031

main11356-63031i3SFE..SV2#198907-199106

sub11356-74030

11381RETAINER, ENGINE REAR OIL SEAL

main11381-62010i2VZFE..VZV21198808-199106

main11381-63011i3SFE..SV2#198808-198907

sub11381-63012

main11381-63012i3SFE..SV2#198907-199106

11381ASEAL, ENGINE REAR OIL

main90311-85003i3SFE..SV2#198808-199010

sub90311-85006

main90311-85006i3SFE..SV21..WG..USA199009-199106

sub90311-85009

main90311-92001i2VZFE..VZV21198808-198911

sub90311-92005

main90311-92005i2VZFE..VZV21198911-199106

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-63010i3SFE..SV2#198808-198907

sub11383-63011

main11383-63011i3SFE..SV2#198907-199106

sub11383-74021

9011906670

main90119-06670

9151160616

main91511-60616

91511F0620

main91511-F0620

91511F0635

main91511-F0635

9161160610

main91611-60610

9161161022

main91611-61022

91611B1020

main91611-B1020

9162160614

main91621-60614

9165160612

main91651-60612

9165161040

main91651-61040

22 parts on this diagram · 2 diagrams in section
