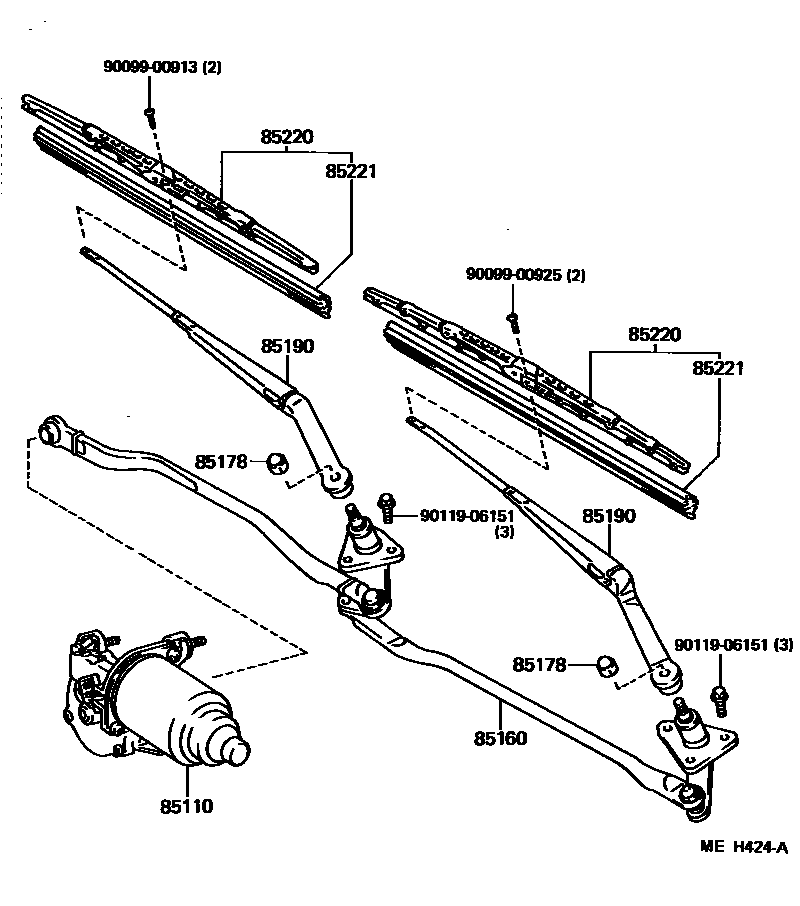

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-32240iSV2#,VZV21198710-198803

main85110-32241iSV2#,VZV21198803-198808

sub85110-32242

85160LINK ASSY, WINDSHIELD WIPER

main85160-32130iSV21198608-198710

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08033×2iSV21198608-198710

main90176-08040×2iSV2#,VZV21198807-198808

sub90176-08051

85190ARM ASSY, WINDSHIELD WIPER

main85190-32280iSV2#,VZV21198710-198808

LH

sub85190-32281

main85210-32210iSV21198608-198710

RH

sub85210-32211

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16340iSV2#,VZV21198710-198808

RH

sub85220-16640

main85220-32600iSV2#,VZV21198710-198808

LH

sub85220-32860

85221BLADE, WINDSHIELD WIPER

main85221-30100iSV21198608-198710

RH

sub85221-40040

main85221-32050iSV21198608-198710

LH

sub85214-24H90

9009900913

main90099-00913

9009900925

main90099-00925

9011906151

main90119-06151

9 parts on this diagram · 1 diagram in section
