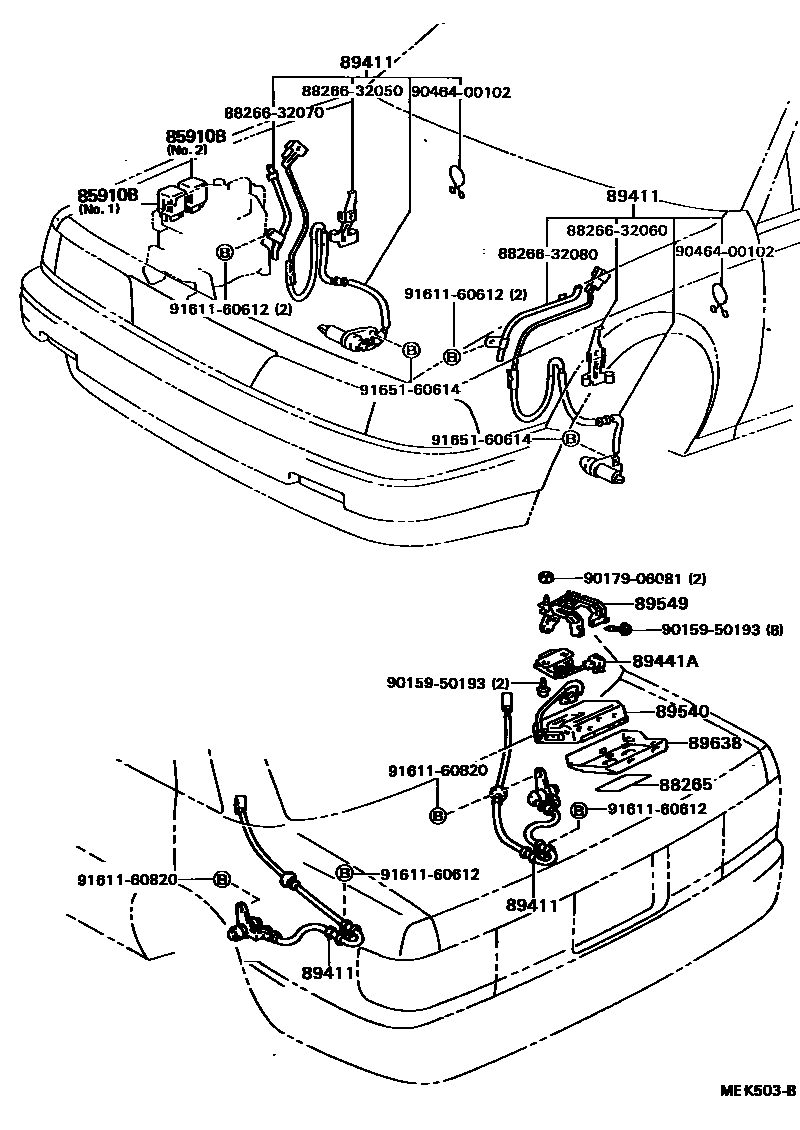

ABS & VSC
85910BRELAY ASSY, CIRCUIT OPENING (FOR ESC)
NO.1
NO.2
88265LABEL, SKID CONTROL CAUTION
89411SENSOR, SPEED
FR,RH
FR,LH
RR,RH
RR,RH
RR,LH
RR,LH
89441ASENSOR, DECELERATION
89540COMPUTER ASSY, SKID CONTROL
89549BRACKET, SKID CONTROL COMPUTER
NO.1
NO.2
NO,3
89638COVER, BRAKE CONTROL COMPUTER
8826632050CLAMP, AIR SUSPENSION SENSOR, NO.1
main88266-32050
8826632060CLAMP, AIR SUSPENSION SENSOR, NO.1
main88266-32060
8826632070CLAMP, AIR SUSPENSION SENSOR, NO.1
main88266-32070
8826632080CLAMP, AIR SUSPENSION SENSOR, NO.1
main88266-32080
9015950193
main90159-50193
9017906081
main90179-06081
9046400102
main90464-00102
9161160612
main91611-60612
9161160820
main91611-60820
9165160614
main91651-60614
17 parts on this diagram · 2 diagrams in section
