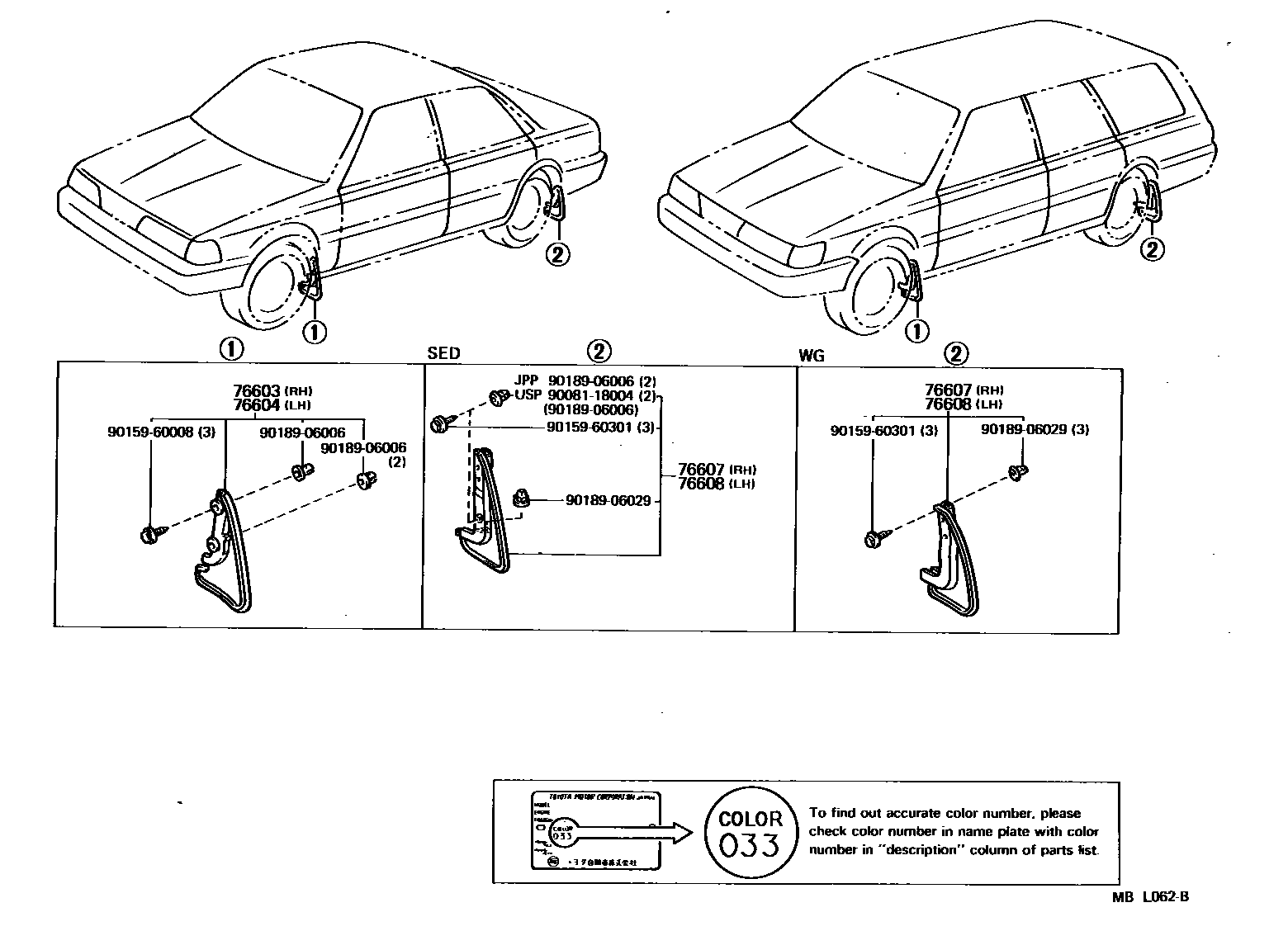

MUDGUARD & SPOILER

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-39095iSV21198608-198710

BLACK

main76621-39095iSV2#,VZV21198710-198808

main76621-39105-02iSV2#,VZV21..SED..LE198710-198808

DARK RED M,3H3

sub76621-39105

main76621-39105-03iSV2#,VZV21..SED..LE198710-198808

GRAY METALLIC,167

sub76621-39105

main76621-39105-08iSV2#,VZV21..SED..LE198710-198808

SUPER WHITE 2,040

sub76621-39105

main76621-39105-13iSV21..SED..LE198608-198710

SILVER-M,SILVER METALLIC,20C

sub76621-39105

main76621-39105-14iSV21..SED..LE198608-198710

LIGHT BLUE-M,LIGHT BLUE METALLIC,21C

sub76621-39105

main76621-39105-14iSV2#,VZV21..SED..LE198710-198808

LIGHT BLUE METALLIC,21C

sub76621-39105

main76621-39105-23iSV2#,VZV21..SED..LE198710-198808

ROSE GRAY METALLIC,26G

sub76621-39105

main76621-39105-24iSV2#,VZV21..SED..LE198710-198808

BLUE MICA,8E3

sub76621-39105

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-39095iSV21198608-198710

BLACK

main76622-39095iSV2#,VZV21198710-198808

main76622-39105-02iSV2#,VZV21..SED..LE198710-198808

DARK RED M,3H3

sub76622-39105

main76622-39105-03iSV2#,VZV21..SED..LE198710-198808

GRAY METALLIC,167

sub76622-39105

main76622-39105-08iSV2#,VZV21..SED..LE198710-198808

SUPER WHITE 2,040

sub76622-39105

main76622-39105-13iSV21..SED..LE198608-198710

SILVER-M,SILVER METALLIC,20C

sub76622-39105

main76622-39105-14iSV2#,VZV21..SED..LE198710-198808

LIGHT BLUE METALLIC,21C

sub76622-39105

main76622-39105-14iSV21..SED..LE198608-198710

LIGHT BLUE-M,LIGHT BLUE METALLIC,21C

sub76622-39105

main76622-39105-23iSV2#,VZV21..SED..LE198710-198808

ROSE GRAY METALLIC,26G

sub76622-39105

main76622-39105-24iSV2#,VZV21..SED..LE198710-198808

BLUE MICA,8E3

sub76622-39105

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-39135iSV2#,VZV21..SED198710-198808

main76625-39135iSV21..SED198608-198710

BLACK

main76625-39145iSV21..WG198608-198710

SILVER-M,20C

main76625-39145iSV21,VZV21..WG198710-198808

main76625-39175-02iSV2#,VZV21..SED..LE198710-198808

DARK RED M,3H3

sub76625-39175

main76625-39175-03iSV21..SED..LE198608-198710

LIGHT BLUE-M,SILVER METALLIC,21C

sub76625-39175

main76625-39175-04iSV2#,VZV21..SED..LE198710-198808

LIGHT BLUE METALLIC,21C

sub76625-39175

main76625-39175-04iSV21..SED..LE198608-198710

LIGHT BLUE-M(21C),LIGHT BLUE METALLIC

sub76625-39175

main76625-39175-08iSV2#,VZV21..SED..LE198710-198808

SUPER WHITE 2,040

sub76625-39175

main76625-39175-13iSV2#,VZV21..SED..LE198710-198808

GRAY METALLIC,167

sub76625-39175

main76625-39175-14iSV2#,VZV21..SED..LE198710-198808

BLUE MICA,8E3

sub76625-39175

main76625-39175-23iSV2#,VZV21..SED..LE198710-198808

ROSE GRAY METALLIC,26G

sub76625-39175

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-39125iSV21..SED198608-198710

BLACK

main76626-39125iSV2#,VZV21..SED198710-198808

main76626-39135iSV21,VZV21..WG198710-198808

main76626-39135iSV21..WG198608-198710

SILVER-M,20C

main76626-39165-02iSV2#,VZV21..SED..LE198710-198808

DARK RED M,3H3

sub76626-39165

main76626-39165-03iSV21..SED..LE198608-198710

LIGHT BLUE-M,SILVER METALLIC,21C

sub76626-39165

main76626-39165-04iSV21..SED..LE198608-198710

LIGHT BLUE-M(21C),LIGHT BLUE METALLIC

sub76626-39165

main76626-39165-04iSV2#,VZV21..SED..LE198710-198808

LIGHT BLUE METALLIC,21C

sub76626-39165

main76626-39165-08iSV2#,VZV21..SED..LE198710-198808

SUPER WHITE 2,040

sub76626-39165

main76626-39165-13iSV2#,VZV21..SED..LE198710-198808

GRAY METALLIC,167

sub76626-39165

main76626-39165-14iSV2#,VZV21..SED..LE198710-198808

BLUE MICA,8E3

sub76626-39165

main76626-39165-23iSV2#,VZV21..SED..LE198710-198808

ROSE GRAY METALLIC,26G

sub76626-39165

9008118004

main90081-18004

9015960008

main90159-60008

9015960301

main90159-60301

9018906006

main90189-06006

9018906029

main90189-06029

9 parts on this diagram · 1 diagram in section
