EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

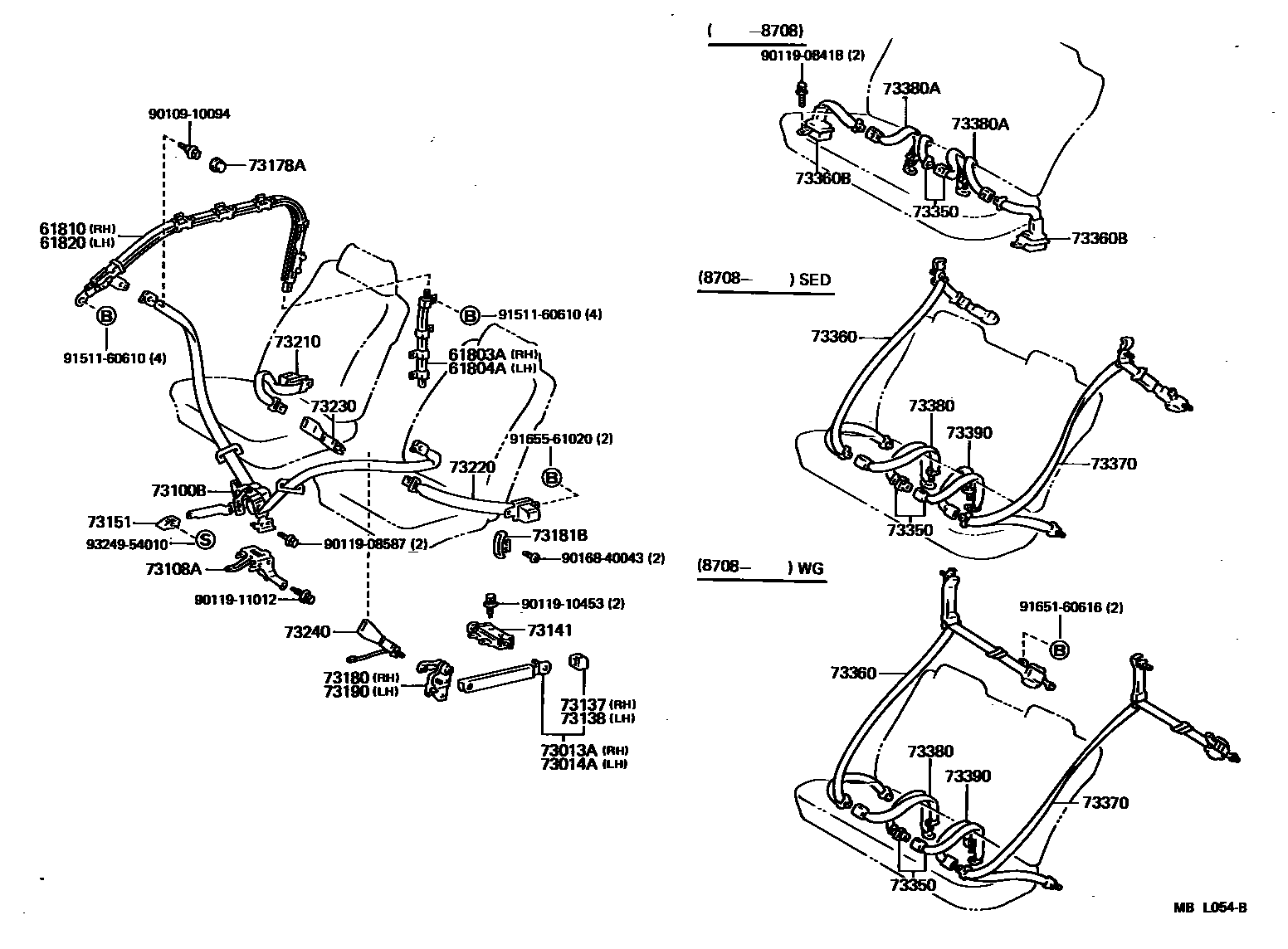

Parts diagram
61803ATRACK SUB-ASSY, BELT DRIVE TAPE, RH
main61803-32010i198608-198808
61804ATRACK SUB-ASSY, BELT DRIVE TAPE, LH
main61804-32010i198608-198808
61810RAIL ASSY, SHOULDER BELT GUIDE, RH
main61810-32010i198608-198808
61820RAIL ASSY, SHOULDER BELT GUIDE, LH
main61820-32010i198608-198808
73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
main73013-32030-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub73013-32030
main73013-32030-03i198710-198808
MEDIUM GRAY,TRIM1#
sub73013-32030
main73013-32030-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub73013-32030
main73013-32030-04i198710-198808
DARK BLUE,TRIM8#
sub73013-32030
main73013-32030-05i198710-198808
DARK BEIGE,TRIM4#
sub73013-32030
main73013-32030-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub73013-32030
main73013-32040i198710-198808
main73013-32050-02i198608-198710
MAROON,MAROON,TRIM3#
sub73013-32050
main73013-32050-02i198710-198808
MAROON,TRIM3#
sub73013-32050
main73013-32050-03i198710-198808
MEDIUM GRAY,TRIM1#
sub73013-32050
main73013-32050-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub73013-32050
main73013-32050-04i198710-198808
DARK BLUE,TRIM8#
sub73013-32050
main73013-32050-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub73013-32050
main73013-32050-05i198710-198808
DARK BEIGE,TRIM4#
sub73013-32050
main73013-32050-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub73013-32050
main73013-32060-02i198710-198808
MAROON,TRIM3#
sub73013-32060
main73013-32060-03i198710-198808
MEDIUM GRAY,TRIM1#
sub73013-32060
main73013-32060-04i198710-198808
DARK BLUE,TRIM8#
sub73013-32060
main73013-32060-05i198710-198808
DARK BEIGE,TRIM4#
sub73013-32060
73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
main73014-32030-03i198710-198808
MEDIUM GRAY,TRIM1#
sub73014-32030
main73014-32030-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub73014-32030
main73014-32030-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub73014-32030
main73014-32030-04i198710-198808
DARK BLUE,TRIM8#
sub73014-32030
main73014-32030-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub73014-32030
main73014-32030-05i198710-198808
DARK BEIGE,TRIM4#
sub73014-32030
main73014-32040i198710-198808
main73014-32050-02i198608-198710
MAROON,MAROON,TRIM3#
sub73014-32050
main73014-32050-02i198710-198808
MAROON,TRIM3#
sub73014-32050
main73014-32050-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub73014-32050
main73014-32050-03i198710-198808
MEDIUM GRAY,TRIM1#
sub73014-32050
main73014-32050-04i198710-198808
DARK BLUE,TRIM8#
sub73014-32050
main73014-32050-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub73014-32050
main73014-32050-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub73014-32050
main73014-32050-05i198710-198808
DARK BEIGE,TRIM4#
sub73014-32050
main73014-32060-02i198710-198808
MAROON,TRIM3#
sub73014-32060
main73014-32060-03i198710-198808
MEDIUM GRAY,TRIM1#
sub73014-32060
main73014-32060-04i198710-198808
DARK BLUE,TRIM8#
sub73014-32060
main73014-32060-05i198710-198808
DARK BEIGE,TRIM4#
sub73014-32060
73100BBELT ASSY, FRONT SEAT SHOULDER
main73100-32010-02i198710-198808
MAROON,TRIM3#
sub73100-32010
main73100-32010-02i198608-198710
MAROON,MAROON,TRIM3#
sub73100-32010
main73100-32010-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub73100-32010
main73100-32010-03i198710-198808
MEDIUM GRAY,TRIM1#
sub73100-32010
main73100-32010-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub73100-32010
main73100-32010-04i198710-198808
DARK BLUE,TRIM8#
sub73100-32010
main73100-32010-05i198710-198808
DARK BEIGE,TRIM4#
sub73100-32010
main73100-32010-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub73100-32010
73108ABASE SUB-ASSY, FRONT SEAT BELT ANCHOR
main73108-32010i198608-198808
main73108-32020i198710-198808
73137CAP, FRONT SEAT BELT INNER ANCHOR, RH
main73137-32030-03i198710-198808
MEDIUM GRAY,TRIM1#
sub73137-32030
main73137-32030-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub73137-32030
main73137-32030-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub73137-32030
main73137-32030-04i198710-198808
DARK BLUE,TRIM8#
sub73137-32030
main73137-32030-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub73137-32030
main73137-32030-05i198710-198808
DARK BEIGE,TRIM4#
sub73137-32030
main73137-32040-02i198710-198808
MAROON,TRIM3#
sub73137-32040
main73137-32040-03i198710-198808
MEDIUM GRAY,TRIM1#
sub73137-32040
main73137-32040-04i198710-198808
DARK BLUE,TRIM8#
sub73137-32040
main73137-32040-05i198710-198808
DARK BEIGE,TRIM4#
sub73137-32040
main73137-32050-02i198608-198710
MAROON,MAROON,TRIM3#
sub73137-32050
main73137-32050-02i198710-198808
MAROON,TRIM3#
sub73137-32050
main73137-32050-03i198710-198808
MEDIUM GRAY,TRIM1#
sub73137-32050
main73137-32050-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub73137-32050
main73137-32050-04i198710-198808
DARK BLUE,TRIM8#
sub73137-32050
main73137-32050-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub73137-32050
main73137-32050-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub73137-32050
main73137-32050-05i198710-198808
DARK BEIGE,TRIM4#
sub73137-32050
73138CAP, FRONT SEAT BELT INNER ANCHOR, LH
main73138-32030-03i198710-198808
MEDIUM GRAY,TRIM1#
sub73138-32030
main73138-32030-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub73138-32030
main73138-32030-04i198710-198808
DARK BLUE,TRIM8#
sub73138-32030
main73138-32030-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub73138-32030
main73138-32030-05i198710-198808
DARK BEIGE,TRIM4#
sub73138-32030
main73138-32030-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub73138-32030
main73138-32040-02i198710-198808
MAROON,TRIM3#
sub73138-32040
main73138-32040-03i198710-198808
MEDIUM GRAY,TRIM1#
sub73138-32040
main73138-32040-04i198710-198808
DARK BLUE,TRIM8#
sub73138-32040
main73138-32040-05i198710-198808
DARK BEIGE,TRIM4#
sub73138-32040
main73138-32050-02i198710-198808
MAROON,TRIM3#
sub73138-32050
main73138-32050-02i198608-198710
MAROON,MAROON,TRIM3#
sub73138-32050
main73138-32050-03i198710-198808
MEDIUM GRAY,TRIM1#
sub73138-32050
main73138-32050-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub73138-32050
main73138-32050-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub73138-32050
main73138-32050-04i198710-198808
DARK BLUE,TRIM8#
sub73138-32050
main73138-32050-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub73138-32050
main73138-32050-05i198710-198808
DARK BEIGE,TRIM4#
sub73138-32050
73141BASE, FRONT SEAT BELT ANCHOR
main73141-32040i198608-198808
73151KNOB, SEAT BELT LOCK RELEASE LEVER, RH
main73151-32010-02i198608-198710
MAROON,MAROON,TRIM3#
sub73151-32010
main73151-32010-02i198710-198808
MAROON,TRIM3#
sub73151-32010
main73151-32010-03i198710-198808
MEDIUM GRAY,TRIM1#
sub73151-32010
main73151-32010-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub73151-32010
main73151-32010-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub73151-32010
main73151-32010-04i198710-198808
DARK BLUE,TRIM8#
sub73151-32010
main73151-32010-05i198710-198808
DARK BEIGE,TRIM4#
sub73151-32010
main73151-32010-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub73151-32010
73178ACAP, SEAT BELT ANCHOR COVER
main73178-22020-12i198608-198710
MAROON,RED/MAROON,TRIM3#
sub73178-22020
main73178-22020-12i198710-198808
RED/MAROON,TRIM3#
sub73178-22020
main73178-22020-13i198710-198808
MEDIUM GRAY,TRIM1#
sub73178-22020
main73178-22020-13i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub73178-22020
main73178-22020-15i198710-198808
DARK BEIGE,TRIM4#
sub73178-22020
main73178-22020-15i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub73178-22020
main73178-22020-24i198608-198710
BLUE,DARK BLUE,TRIM8#
sub73178-22020
main73178-22020-24i198710-198808
DARK BLUE,TRIM8#
sub73178-22020
73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
main73011-32020i198608-198808
main73011-32030i198608-198808
73181BGUIDE, FRONT SEAT LAP BELT, OUTER
main73181-32010-02i198608-198706
MAROON,MAROON,TRIM3#
sub73181-32011
main73181-32010-03i198608-198706
GRAY,MEDIUM GRAY,TRIM1#
sub73181-32011
main73181-32010-04i198608-198706
BLUE,DARK BLUE,TRIM8#
sub73181-32011
main73181-32010-05i198608-198706
BEIGE,DARK BEIGE,TRIM4#
sub73181-32011
main73181-32011-02i198706-198710
MAROON,MAROON,TRIM3#
sub73181-32011
sub73181-32012
main73181-32011-03i198706-198710
GRAY,MIDIUM GRAY,TRIM1#
sub73181-32011
sub73181-32012
main73181-32011-04i198706-198710
BLUE,DARK BLUE,TRIM8#
sub73181-32011
sub73181-32012
main73181-32011-05i198706-198710
BEIGE,DARK BEIGE,TRIM4#
sub73181-32011
sub73181-32012
73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
main73012-32020i198608-198808
main73012-32030i198608-198808
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-32120-03i198710-198808
MEDIUM GRAY,TRIM1#
main73210-32120-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
main73210-32120-04i198710-198808
DARK BLUE,TRIM8#
main73210-32120-04i198608-198710
BLUE,DARK BLUE,TRIM8#
main73210-32120-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
main73210-32120-05i198710-198808
DARK BEIGE,TRIM4#
main73210-32130-02i198608-198706
MAROON,MAROON,TRIM3#
sub73210-32131
main73210-32130-03i198608-198706
GRAY,MEDIUM GRAY,TRIM1#
sub73210-32131
main73210-32130-04i198608-198706
BLUE,DARK BLUE,TRIM8#
sub73210-32131
main73210-32130-05i198608-198706
BEIGE,DARK BEIGE,TRIM4#
sub73210-32131
main73210-32131-02i198706-198710
MAROON,MAROON,TRIM3#
sub73210-32131
sub73210-32132
main73210-32131-02i198710-198808
MAROON,TRIM3#
sub73210-32131
sub73210-32132
main73210-32131-03i198710-198808
MEDIUM GRAY,TRIM1#
sub73210-32131
sub73210-32132
main73210-32131-03i198706-198710
GRAY,MEDIUM GRAY,TRIM1#
sub73210-32131
sub73210-32132
main73210-32131-04i198706-198710
BLUE,DARK BLUE,TRIM8#
sub73210-32131
sub73210-32132
main73210-32131-04i198710-198808
DARK BLUE,TRIM8#
sub73210-32131
sub73210-32132
main73210-32131-05i198706-198710
BEIGE,DARK BEIGE,TRIM4#
sub73210-32131
sub73210-32132
main73210-32131-05i198710-198808
DARK BEIGE,TRIM4#
sub73210-32131
sub73210-32132
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-32120-03i198710-198808
MEDIUM GRAY,TRIM1#
main73220-32120-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
main73220-32120-04i198710-198808
DARK BLUE,TRIM8#
main73220-32120-04i198608-198710
BLUE,DARK BLUE,TRIM8#
main73220-32120-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
main73220-32120-05i198710-198808
DARK BEIGE,TRIM4#
main73220-32130-02i198608-198706
MAROON,MAROON,TRIM3#
sub73220-32131
main73220-32130-03i198608-198706
GRAY,MEDIUM GRAY,TRIM1#
sub73220-32131
main73220-32130-04i198608-198706
BLUE,DARK BLUE,TRIM8#
sub73220-32131
main73220-32130-05i198608-198706
BEIGE,DARK BEIGE,TRIM4#
sub73220-32131
main73220-32131-02i198710-198808
MAROON,TRIM3#
sub73220-32131
sub73220-32132
main73220-32131-02i198706-198710
MAROON,MAROON,TRIM3#
sub73220-32131
sub73220-32132
main73220-32131-03i198706-198710
GRAY,MEDIUM GRAY,TRIM1#
sub73220-32131
sub73220-32132
main73220-32131-03i198710-198808
MEDIUM GRAY,TRIM1#
sub73220-32131
sub73220-32132
main73220-32131-04i198706-198710
BLUE,DARK BLUE,TRIM8#
sub73220-32131
sub73220-32132
main73220-32131-04i198710-198808
DARK BLUE,TRIM8#
sub73220-32131
sub73220-32132
main73220-32131-05i198710-198808
DARK BEIGE,TRIM4#
sub73220-32131
sub73220-32132
main73220-32131-05i198706-198710
BEIGE,DARK BEIGE,TRIM4#
sub73220-32131
sub73220-32132
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-32100-03i198710-198808
MEDIUM GRAY,TRIM1#
main73230-32100-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
main73230-32100-04i198710-198808
DARK BLUE,TRIM8#
main73230-32100-04i198608-198710
BLUE,DARK BLUE,TRIM8#
main73230-32100-05i198710-198808
DARK BEIGE,TRIM4#
main73230-32100-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
main73230-32110-02i198608-198706
MAROON,MAROON,TRIM3#
sub73230-32111
main73230-32110-03i198608-198706
GRAY,MEDIUM GRAY,TRIM1#
sub73230-32111
main73230-32110-04i198608-198706
BLUE,DARK BLUE,TRIM8#
sub73230-32111
main73230-32110-05i198608-198706
BEIGE,DARK BEIGE,TRIM4#
sub73230-32111
main73230-32111-02i198710-198808
MAROON,TRIM3#
sub73230-32111
main73230-32111-02i198706-198710
MAROON,MAROON,TRIM3#
sub73230-32111
main73230-32111-03i198706-198710
GRAY,MEDIUM GRAY,TRIM1#
sub73230-32111
main73230-32111-03i198710-198808
MEDIUM GRAY,TRIM1#
sub73230-32111
main73230-32111-04i198706-198710
BLUE,DARK BLUE,TRIM8#
sub73230-32111
main73230-32111-04i198710-198808
DARK BLUE,TRIM8#
sub73230-32111
main73230-32111-05i198706-198710
BEIGE,DARK BEIGE,TRIM4#
sub73230-32111
main73230-32111-05i198710-198808
DARK BEIGE,TRIM4#
sub73230-32111
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-32040-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
main73240-32040-03i198710-198802
MEDIUM GRAY,TRIM1#
main73240-32040-04i198608-198710
BLUE,DARK BLUE,TRIM8#
main73240-32040-04i198710-198802
DARK BLUE,TRIM8#
main73240-32040-05i198710-198802
DARK BEIGE,TRIM4#
main73240-32040-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
main73240-32041-03i198802-198808
MEDIUM GRAY,TRIM1#
main73240-32041-04i198802-198808
DARK BLUE,TRIM8#
main73240-32041-05i198802-198808
DARK BEIGE,TRIM4#
main73240-32050-02i198608-198706
MAROON,MAROON,TRIM3#
sub73240-32051
main73240-32050-03i198608-198706
GRAY,MEDIUM GRAY,TRIM1#
sub73240-32051
main73240-32050-04i198608-198706
BLUE,DARK BLUE,TRIM8#
sub73240-32051
main73240-32050-05i198608-198706
BEIGE,DARK BEIGE,TRIM4#
sub73240-32051
main73240-32051-02i198706-198710
MAROON,MAROON,TRIM3#
sub73240-32051
main73240-32051-02i198710-198802
MAROON,TRIM3#
sub73240-32051
main73240-32051-03i198706-198710
GRAY,MEDIUM GRAY,TRIM1#
sub73240-32051
main73240-32051-03i198710-198802
MEDIUM GRAY,TRIM1#
sub73240-32051
main73240-32051-04i198710-198802
DARK BLUE,TRIM8#
sub73240-32051
main73240-32051-04i198706-198710
BLUE,DARK BLUE,TRIM8#
sub73240-32051
main73240-32051-05i198706-198710
BEIGE,DARK BEIGE,TRIM4#
sub73240-32051
main73240-32051-05i198710-198802
DARK BEIGE,TRIM4#
sub73240-32051
main73240-32052-02i198802-198808
MAROON,TRIM3#
sub73240-32052
main73240-32052-03i198802-198808
MEDIUM GRAY,TRIM1#
sub73240-32052
main73240-32052-04i198802-198808
DARK BLUE,TRIM8#
sub73240-32052
main73240-32052-05i198802-198808
DARK BEIGE,TRIM4#
sub73240-32052
main73240-32070-03i198802-198808
W(POWER SEAT),MEDIUM GRAY,TRIM1#
main73240-32070-04i198802-198808
W(POWER SEAT),DARK BLUE,TRIM8#
main73240-32070-05i198802-198808
W(POWER SEAT),DARK BEIGE,TRIM4#
main73240-32080-02i198802-198808
W(POWER SEAT),MAROON,TRIM3#
sub73240-32080
main73240-32080-03i198802-198808
W(POWER SEAT),MEDIUM GRAY,TRIM1#
sub73240-32080
main73240-32080-04i198802-198808
W(POWER SEAT),DARK BLUE,TRIM8#
sub73240-32080
main73240-32080-05i198802-198808
W(POWER SEAT),DARK BEIGE,TRIM4#
sub73240-32080
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
main73350-32150-02i198608-198710
MAROON,MAROON,TRIM3#
sub73350-32150
main73350-32150-02i198710-198808
MAROON,TRIM3#
sub73350-32150
main73350-32150-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub73350-32150
main73350-32150-03i198710-198808
MEDIUM GRAY,TRIM1#
sub73350-32150
main73350-32150-04i198710-198808
DARK BLUE,TRIM8#
sub73350-32150
main73350-32150-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub73350-32150
main73350-32150-05i198710-198808
DARK BEIGE,TRIM4#
sub73350-32150
main73350-32150-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub73350-32150
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73360-32200-02i198708-198710
MAROON,MAROON,TRIM3#
sub73360-32200
main73360-32200-02i198710-198808
MAROON,TRIM3#
sub73360-32200
main73360-32200-03i198708-198710
GRAY,MEDIUM GRAY,TRIM1#
sub73360-32200
main73360-32200-03i198710-198808
MEDIUM GRAY,TRIM1#
sub73360-32200
main73360-32200-04i198710-198808
DARK BLUE,TRIM8#
sub73360-32200
main73360-32200-04i198708-198710
BLUE,DARK BLUE,TRIM8#
sub73360-32200
main73360-32200-05i198708-198710
BEIGE,DARK BEIGE,TRIM4#
sub73360-32200
main73360-32200-05i198710-198808
DARK BEIGE,TRIM4#
sub73360-32200
main73360-32210-02i198710-198808
MAROON,TRIM3#
sub73360-32210
main73360-32210-02i198708-198710
MAROON,MAROON,TRIM3#
sub73360-32210
main73360-32210-03i198710-198808
MIDIUM GRAY,TRIM1#
sub73360-32210
main73360-32210-03i198708-198710
GRAY,MIDIUM GRAY,TRIM1#
sub73360-32210
main73360-32210-04i198708-198710
BLUE,DARK BLUE,TRIM8#
sub73360-32210
main73360-32210-04i198710-198808
DARK BLUE,TRIM8#
sub73360-32210
main73360-32210-05i198710-198808
DARK BEIGE,TRIM4#
sub73360-32210
main73360-32210-05i198708-198710
BEIGE,DARK BEIGE,TRIM4#
sub73360-32210
73360BBELT ASSY, REAR SEAT, OUTER
main73360-32140-02i198608-198708
RH,MAROON,MAROON,TRIM3#
sub73360-32220
main73360-32140-03i198608-198708
RH,GRAY,MEDIUM GRAY,TRIM1#
sub73360-32220
main73360-32140-04i198608-198708
RH,BLUE,DARK BLUE,TRIM8#
sub73360-32220
main73360-32140-05i198608-198708
RH,BEIGE,DARK BEIGE,TRIM4#
sub73360-32220
main73370-32120-02i198608-198708
LH,MAROON,MAROON,TRIM3#
sub73370-32180
main73370-32120-03i198608-198708
LH,GRAY,MEDIUM GRAY,TRIM1#
sub73370-32180
main73370-32120-04i198608-198708
LH,BLUE,DARK BLUE,TRIM8#
sub73370-32180
main73370-32120-05i198608-198708
LH,BEIGE,DARK BEIGE,TRIM4#
sub73370-32180
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
main73370-32160-02i198708-198710
MAROON,MAROON,TRIM3#
sub73370-32160
main73370-32160-02i198710-198808
MAROON,TRIM3#
sub73370-32160
main73370-32160-03i198710-198808
MEDIUM GRAY,TRIM1#
sub73370-32160
main73370-32160-03i198708-198710
GRAY,MEDIUM GRAY,TRIM1#
sub73370-32160
main73370-32160-04i198708-198710
BLUE,DARK BLUE,TRIM8#
sub73370-32160
main73370-32160-04i198710-198808
DARK BLUE,TRIM8#
sub73370-32160
main73370-32160-05i198708-198710
BEIGE,DARK BEIGE,TRIM4#
sub73370-32160
main73370-32160-05i198710-198808
DARK BEIGE,TRIM4#
sub73370-32160
main73370-32170-02i198708-198710
MAROON,MAROON,TRIM3#
sub73370-32170
main73370-32170-02i198710-198808
MAROON,TRIM3#
sub73370-32170
main73370-32170-03i198710-198808
MIDIUM GRAY,TRIM1#
sub73370-32170
main73370-32170-03i198708-198710
GRAY,MIDIUM GRAY,TRIM1#
sub73370-32170
main73370-32170-04i198708-198710
BLUE,DARK BLUE,TRIM8#
sub73370-32170
main73370-32170-04i198710-198808
DARK BLUE,TRIM8#
sub73370-32170
main73370-32170-05i198708-198710
BEIGE,DARK BEIGE,TRIM4#
sub73370-32170
main73370-32170-05i198710-198808
DARK BEIGE,TRIM4#
sub73370-32170
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
main73380-32170-02i198710-198808
MAROON,TRIM3#
sub73380-32170
main73380-32170-02i198708-198710
MAROON,MAROON,TRIM3#
sub73380-32170
main73380-32170-03i198708-198710
GRAY,MIDIUM GRAY,TRIM1#
sub73380-32170
main73380-32170-03i198710-198808
MIDIUM GRAY,TRIM1#
sub73380-32170
main73380-32170-04i198708-198710
BLUE,DARK BLUE,TRIM8#
sub73380-32170
main73380-32170-04i198710-198808
DARK BLUE,TRIM8#
sub73380-32170
main73380-32170-05i198710-198808
DARK BEIGE,TRIM4#
sub73380-32170
main73380-32170-05i198708-198710
BEIGE,DARK BEIGE,TRIM4#
sub73380-32170
73380ABELT ASSY, REAR SEAT, INNER
main73380-32130-02i198710-198808
MAROON,TRIM3#
sub73380-32130
main73380-32130-02i198608-198708
MAROON,MAROON,TRIM3#
sub73380-32130
main73380-32130-03i198608-198708
GRAY,MEDIUM GRAY,TRIM1#
sub73380-32130
main73380-32130-03i198710-198808
MEDIUM GRAY,TRIM1#
sub73380-32130
main73380-32130-04i198608-198708
BLUE,DARK BLUE,TRIM8#
sub73380-32130
main73380-32130-04i198710-198808
DARK BLUE,TRIM8#
sub73380-32130
main73380-32130-05i198608-198708
BEIGE,DARK BEIGE,TRIM4#
sub73380-32130
main73380-32130-05i198710-198808
DARK BEIGE,TRIM4#
sub73380-32130
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
main73380-32170-02i198710-198808
MAROON,TRIM3#
sub73380-32170
main73380-32170-02i198708-198710
MAROON,MAROON,TRIM3#
sub73380-32170
main73380-32170-03i198710-198808
MIDIUM GRAY,TRIM1#
sub73380-32170
main73380-32170-03i198708-198710
GRAY,MIDIUM GRAY,TRIM1#
sub73380-32170
main73380-32170-04i198708-198710
BLUE,DARK BLUE,TRIM8#
sub73380-32170
main73380-32170-04i198710-198808
DARK BLUE,TRIM8#
sub73380-32170
main73380-32170-05i198708-198710
BEIGE,DARK BEIGE,TRIM4#
sub73380-32170
main73380-32170-05i198710-198808
DARK BEIGE,TRIM4#
sub73380-32170
9010910094
main90109-10094
9011908418
main90119-08418
9011908587
main90119-08587
9011910453
main90119-10453
9011911012
main90119-11012
9016840043
main90168-40043
9151160610
main91511-60610
9165160616
main91651-60616
9165561020
main91655-61020
9324954010
main93249-54010

37 parts on this diagram · 2 diagrams in section

SEAT BELT & CHILD RESTRAINT SEAT — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
