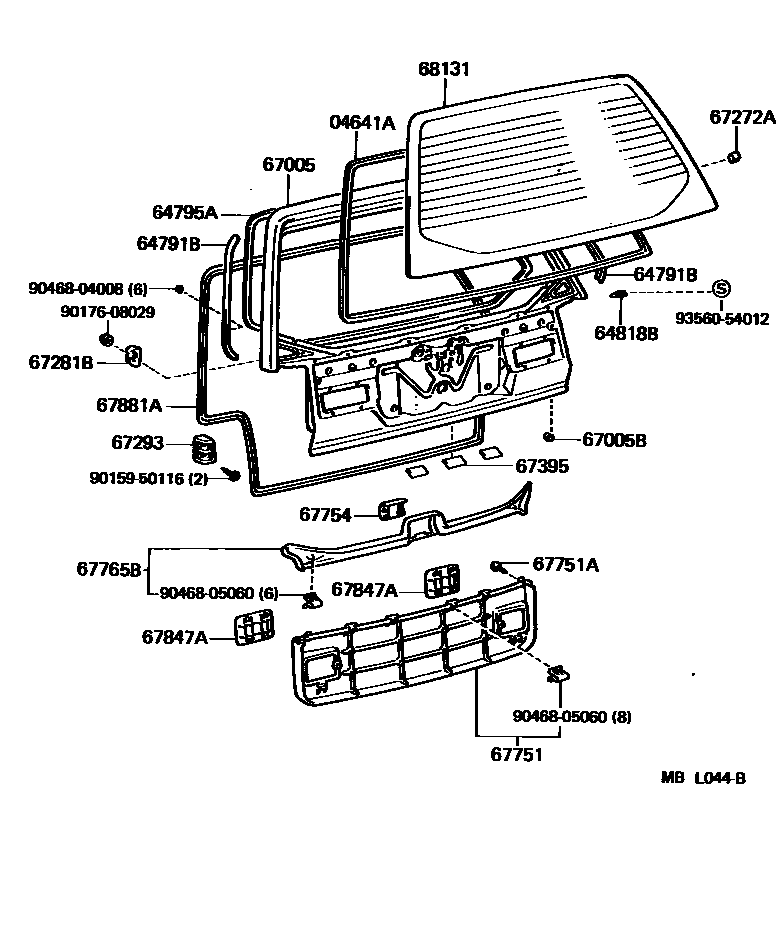

BACK DOOR PANEL & GLASS
04641ADAM KIT, BACK WINDOW GLASS ADHESIVE
64791BCOVER, BACK DOOR TRIM
RH,MAROON,MAROON,TRIM3#
MAROON,TRIM3#,RH
RH,GRAY,MEDIUM GRAY,TRIM1#
MEDIUM GRAY,TRIM1#,RH
DARK BLUE,TRIM8#,RH
RH,BLUE,DARK BLUE,TRIM8#
RH,BEIGE,DARK BEIGE,TRIM4#
DARK BEIGE,TRIM4#,RH
LH,MAROON,MAROON,TRIM3#
MAROON,TRIM3#,LH
MEDIUM GRAY,TRIM1#,LH
LH,GRAY,MEDIUM GRAY,TRIM1#
LH,BLUE,DARK BLUE,TRIM8#
DARK BLUE,TRIM8#,LH
LH,BEIGE,DARK BEIGE,TRIM4#
DARK BEIGE,TRIM4#,LH
64795ATRIM, BACK WINDOW OPENING
64818BSPACER, BACK DOOR GLASS, NO.1
67005PANEL SUB-ASSY, BACK DOOR
67005BCUSHION(FOR BACK DOOR PANEL)
67272ACUSHION, BACK DOOR STOPPER, NO.2
67281BSTOPPER, BACK DOOR, LOWER
67293CUSHION, BACK DOOR LOWER STOPPER
RH
LH
67395PROTECTOR, BACK DOOR, LOWER
67751BOARD, BACK DOOR TRIM
67751ACLIP(FOR BACK DOOR TRIM BOARD)
67754MOULDING, BACK DOOR TRIM
67765BCOVER, BACK DOOR TRIM, UPPER
67847ACOVER, BACK DOOR SERVICE HOLE
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
*EHTT,T=3.5,*EHTT,T=3.5
*EHTT,T=3.5
*EHTT,T=3.5,BRONZE,BRONZE,*EHT,T=3.5
*EHTT,T=3.5,BRONZE
9015950116
main90159-50116
9017608029
main90176-08029
9046804008
main90468-04008
9046805060
main90468-05060
9356054012
main93560-54012
22 parts on this diagram · 1 diagram in section
