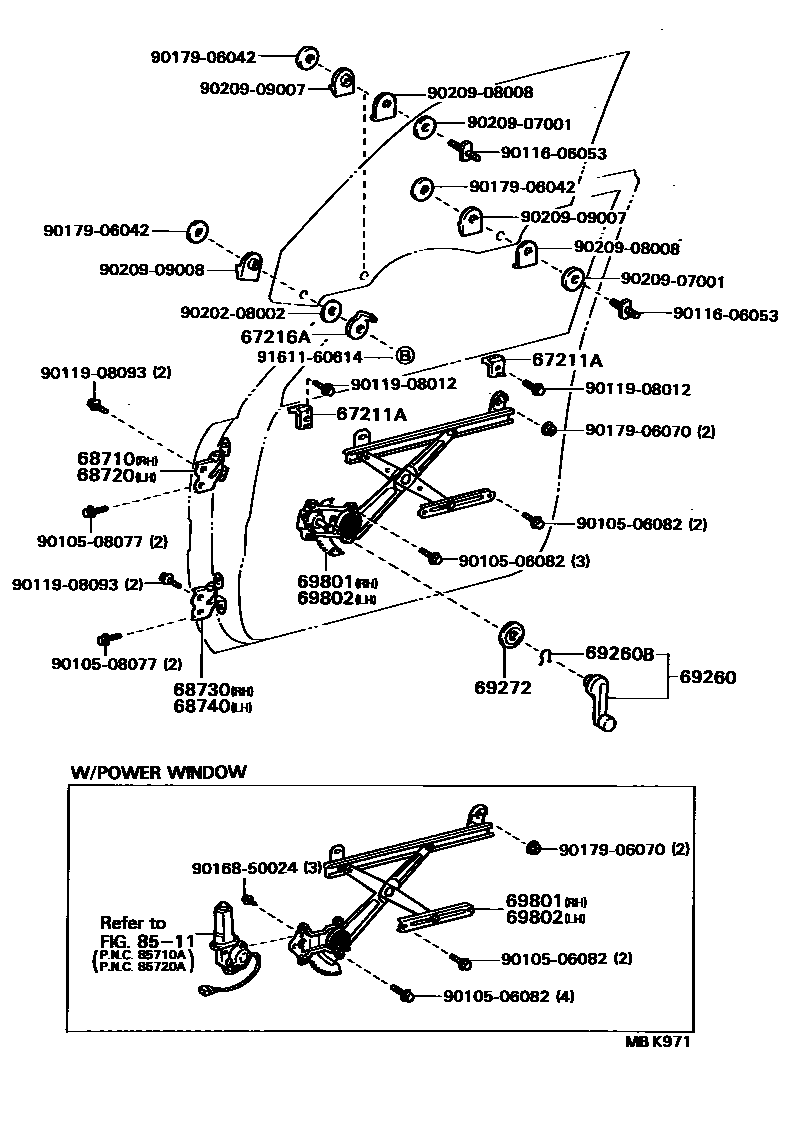

FRONT DOOR WINDOW REGULATOR & HINGE
67211ASTOP, FRONT DOOR WINDOW, UPPER
67216ASTOPPER, FRONT DOOR GLASS, UPPER NO.2
68710HINGE ASSY, FRONT DOOR, UPPER RH
68720HINGE ASSY, FRONT DOOR, UPPER LH
68730HINGE ASSY, FRONT DOOR, LOWER RH
68740HINGE ASSY, FRONT DOOR, LOWER LH
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
sub90520-01274
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
W/*PW
W(POWER WINDOW)
W/O *PW
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
W/*PW
W(POWER WINDOW)
W/O *PW
8511
9010506082
main90105-06082
9010508077
main90105-08077
9011606053
main90116-06053
9011908012
main90119-08012
9011908093
main90119-08093
9016850024
main90168-50024
9017906042
main90179-06042
9017906070
main90179-06070
9020208002
main90202-08002
9020907001
main90209-07001
9020908008
main90209-08008
9020909007
main90209-09007
9020909008
main90209-09008
9161160614
main91611-60614
26 parts on this diagram · 1 diagram in section
