INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

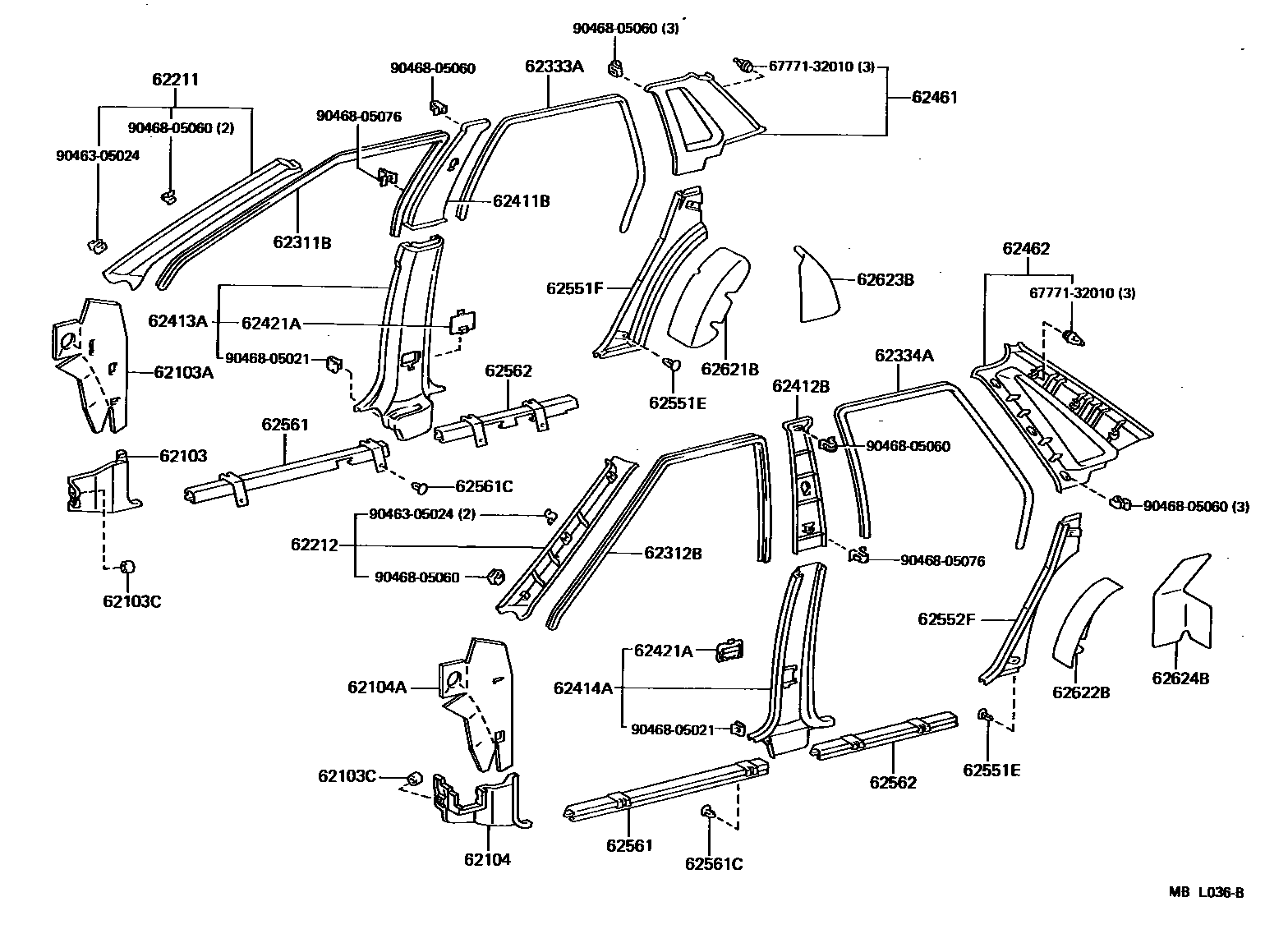

Parts diagram
62103BOARD SUB-ASSY, COWL SIDE TRIM, RH
main62101-32040-02i198608-198710
MAROON,MAROON,TRIM3#
sub62101-32040
main62101-32040-02i198710-198808
MAROON,TRIM3#
sub62101-32040
main62101-32040-03i198710-198808
MEDIUM GRAY,TRIM1#
sub62101-32040
main62101-32040-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub62101-32040
main62101-32040-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub62101-32040
main62101-32040-04i198710-198808
DARK BLUE,TRIM8#
sub62101-32040
main62101-32040-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub62101-32040
main62101-32040-05i198710-198808
DARK BEIGE,TRIM4#
sub62101-32040
62103AINSULATOR SUB-ASSY, COWL SIDE, RH
main62105-32040i198608-198808
62103CCLIP, COWL SIDE TRIM BOARD SET
main90467-06074i198608-198808
62104BOARD SUB-ASSY, COWL SIDE TRIM, LH
main62102-32070-02i198608-198710
MAROON,MAROON,TRIM3#
sub62102-32070
main62102-32070-02i198710-198808
MAROON,TRIM3#
sub62102-32070
main62102-32070-03i198710-198808
MEDIUM GRAY,TRIM1#
sub62102-32070
main62102-32070-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub62102-32070
main62102-32070-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub62102-32070
main62102-32070-04i198710-198808
DARK BLUE,TRIM8#
sub62102-32070
main62102-32070-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub62102-32070
main62102-32070-05i198710-198808
DARK BEIGE,TRIM4#
sub62102-32070
62104AINSULATOR SUB-ASSY, COWL SIDE, LH
main62106-32040i198608-198808
62211GARNISH, FRONT PILLAR, RH
main62210-32050-03i198710-198808
MEDIUM GRAY,TRIM1#
main62210-32050-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
main62210-32050-04i198608-198710
BLUE,DARK BLUE,TRIM8#
main62210-32050-04i198710-198808
DARK BLUE,TRIM8#
main62210-32050-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
main62210-32050-05i198710-198808
DARK BEIGE,TRIM4#
main62210-32070-02i198608-198710
MAROON,MAROON,TRIM3#
main62210-32070-02i198710-198808
MAROON,TRIM3#
main62210-32070-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
main62210-32070-03i198710-198808
MEDIUM GRAY,TRIM1#
main62210-32070-04i198710-198808
DARK BLUE,TRIM8#
main62210-32070-04i198608-198710
BLUE,DARK BLUE,TRIM8#
main62210-32070-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
main62210-32070-05i198710-198808
DARK BEIGE,TRIM4#
62212GARNISH, FRONT PILLAR, LH
main62220-32050-03i198710-198808
MEDIUM GRAY,TRIM1#
main62220-32050-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
main62220-32050-04i198710-198808
DARK BLUE,TRIM8#
main62220-32050-04i198608-198710
BLUE,DARK BLUE,TRIM8#
main62220-32050-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
main62220-32050-05i198710-198808
DARK BEIGE,TRIM4#
main62220-32070-02i198608-198710
MAROON,MAROON,TRIM3#
main62220-32070-02i198710-198808
MAROON,TRIM3#
main62220-32070-03i198710-198808
MEDIUM GRAY,TRIM1#
main62220-32070-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
main62220-32070-04i198608-198710
BLUE,DARK BLUE,TRIM8#
main62220-32070-04i198710-198808
DARK BLUE,TRIM8#
main62220-32070-05i198710-198808
DARK BEIGE,TRIM4#
main62220-32070-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-32030-02i198608-198710
MAROON,MAROON,TRIM3#
sub62311-32030
main62311-32030-02i198710-198808
MAROON,TRIM3#
sub62311-32030
main62311-32030-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub62311-32030
main62311-32030-03i198710-198808
MEDIUM GRAY,TRIM1#
sub62311-32030
main62311-32030-04i198710-198808
DARK BLUE,TRIM8#
sub62311-32030
main62311-32030-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub62311-32030
main62311-32030-05i198710-198808
DARK BEIGE,TRIM4#
sub62311-32030
main62311-32030-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub62311-32030
main62311-32050-03i198710-198808
MEDIUM GRAY,TRIM1#
sub62311-32050
main62311-32050-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub62311-32050
main62311-32050-04i198710-198808
DARK BLUE,TRIM8#
sub62311-32050
main62311-32050-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub62311-32050
main62311-32050-05i198710-198808
DARK BEIGE,TRIM4#
sub62311-32050
main62311-32050-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub62311-32050
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-32030-02i198710-198808
MAROON,TRIM3#
sub62312-32030
main62312-32030-02i198608-198710
MAROON,MAROON,TRIM3#
sub62312-32030
main62312-32030-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub62312-32030
main62312-32030-03i198710-198808
MEDIUM GRAY,TRIM1#
sub62312-32030
main62312-32030-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub62312-32030
main62312-32030-04i198710-198808
DARK BLUE,TRIM8#
sub62312-32030
main62312-32030-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub62312-32030
main62312-32030-05i198710-198808
DARK BEIGE,TRIM4#
sub62312-32030
main62312-32050-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub62312-32050
main62312-32050-03i198710-198808
MEDIUM GRAY,TRIM1#
sub62312-32050
main62312-32050-04i198710-198808
DARK BLUE,TRIM8#
sub62312-32050
main62312-32050-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub62312-32050
main62312-32050-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub62312-32050
main62312-32050-05i198710-198808
DARK BEIGE,TRIM4#
sub62312-32050
62333ATRIM, REAR DOOR OPENING, RH
main62333-32030-02i198608-198710
MAROON,MAROON,TRIM3#
sub62333-32030
main62333-32030-02i198710-198808
MAROON,TRIM3#
sub62333-32030
main62333-32030-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub62333-32030
main62333-32030-03i198710-198808
MEDIUM GRAY,TRIM1#
sub62333-32030
main62333-32030-04i198710-198808
DARK BLUE,TRIM8#
sub62333-32030
main62333-32030-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub62333-32030
main62333-32030-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub62333-32030
main62333-32030-05i198710-198808
DARK BEIGE,TRIM4#
sub62333-32030
62334ATRIM, REAR DOOR OPENING, LH
main62334-32010-02i198608-198710
MAROON,MAROON,TRIM3#
sub62334-32010
main62334-32010-02i198710-198808
MAROON,TRIM3#
sub62334-32010
main62334-32010-03i198710-198808
MEDIUM GRAY,TRIM1#
sub62334-32010
main62334-32010-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub62334-32010
main62334-32010-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub62334-32010
main62334-32010-04i198710-198808
DARK BLUE,TRIM8#
sub62334-32010
main62334-32010-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub62334-32010
main62334-32010-05i198710-198808
DARK BEIGE,TRIM4#
sub62334-32010
62411BGARNISH, CENTER PILLAR, UPPER RH
main62411-32090-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
main62411-32090-03i198710-198808
MEDIUM GRAY,TRIM1#
main62411-32090-04i198608-198710
BLUE,DARK BLUE,TRIM8#
main62411-32090-04i198710-198808
DARK BLUE,TRIM8#
main62411-32090-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
main62411-32090-05i198710-198808
DARK BEIGE,TRIM4#
main62411-32110-02i198710-198808
MAROON,TRIM3#
sub62411-32110
main62411-32110-02i198608-198710
MAROON,MAROON,TRIM3#
sub62411-32110
main62411-32110-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub62411-32110
main62411-32110-03i198710-198808
MEDIUM GRAY,TRIM1#
sub62411-32110
main62411-32110-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub62411-32110
main62411-32110-04i198710-198808
DARK BLUE,TRIM8#
sub62411-32110
main62411-32110-05i198710-198808
DARK BEIGE,TRIM4#
sub62411-32110
main62411-32110-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub62411-32110
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-32090-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
main62412-32090-03i198710-198808
MEDIUM GRAY,TRIM1#
main62412-32090-04i198608-198710
BLUE,DARK BLUE,TRIM8#
main62412-32090-04i198710-198808
DARK BLUE,TRIM8#
main62412-32090-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
main62412-32090-05i198710-198808
DARK BEIGE,TRIM4#
main62412-32110-02i198608-198710
MAROON,MAROON,TRIM3#
sub62412-32110
main62412-32110-02i198710-198808
MAROON,TRIM3#
sub62412-32110
main62412-32110-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub62412-32110
main62412-32110-03i198710-198808
MEDIUM GRAY,TRIM1#
sub62412-32110
main62412-32110-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub62412-32110
main62412-32110-04i198710-198808
DARK BLUE,TRIM8#
sub62412-32110
main62412-32110-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub62412-32110
main62412-32110-05i198710-198808
DARK BEIGE,TRIM4#
sub62412-32110
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-32020-03i198710-198808
MEDIUM GRAY,TRIM1#
sub62413-32020
main62413-32020-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub62413-32020
main62413-32020-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub62413-32020
main62413-32020-04i198710-198808
DARK BLUE,TRIM8#
sub62413-32020
main62413-32020-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub62413-32020
main62413-32020-05i198710-198808
DARK BEIGE,TRIM4#
sub62413-32020
main62413-32030-02i198710-198808
MAROON,TRIM3#
sub62413-32030
main62413-32030-02i198608-198710
MAROON,MAROON,TRIM3#
sub62413-32030
main62413-32030-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub62413-32030
main62413-32030-03i198710-198808
MEDIUM GRAY,TRIM1#
sub62413-32030
main62413-32030-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub62413-32030
main62413-32030-04i198710-198808
DARK BLUE,TRIM8#
sub62413-32030
main62413-32030-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub62413-32030
main62413-32030-05i198710-198808
DARK BEIGE,TRIM4#
sub62413-32030
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-32020-03i198710-198808
MEDIUM GRAY,TRIM1#
sub62414-32020
main62414-32020-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub62414-32020
main62414-32020-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub62414-32020
main62414-32020-04i198710-198808
DARK BLUE,TRIM8#
sub62414-32020
main62414-32020-05i198710-198808
DARK BEIGE,TRIM4#
sub62414-32020
main62414-32020-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub62414-32020
main62414-32030-02i198608-198710
MAROON,MAROON,TRIM3#
sub62414-32030
main62414-32030-02i198710-198808
MAROON,TRIM3#
sub62414-32030
main62414-32030-03i198710-198808
MEDIUM GRAY,TRIM1#
sub62414-32030
main62414-32030-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub62414-32030
main62414-32030-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub62414-32030
main62414-32030-04i198710-198808
DARK BLUE,TRIM8#
sub62414-32030
main62414-32030-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub62414-32030
main62414-32030-05i198710-198808
DARK BEIGE,TRIM4#
sub62414-32030
62421ACOVER, CENTER PILLAR GARNISH, NO.1
main62421-32010-02i198710-198808
MAROON,TRIM3#
sub62421-32010
main62421-32010-02i198608-198710
MAROON,MAROON,TRIM3#
sub62421-32010
main62421-32010-03i198710-198808
MEDIUM GRAY,TRIM1#
sub62421-32010
main62421-32010-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub62421-32010
main62421-32010-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub62421-32010
main62421-32010-04i198710-198808
DARK BLUE,TRIM8#
sub62421-32010
main62421-32010-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub62421-32010
main62421-32010-05i198710-198808
DARK BEIGE,TRIM4#
sub62421-32010
62461GARNISH, ROOF SIDE TRIM, RH
main62470-32100-02i198608-198708
MAROON,MAROON,TRIM3#
main62470-32100-03i198608-198708
GRAY,MEDIUM GRAY,TRIM1#
main62470-32100-04i198608-198708
BLUE,DARK BLUE,TRIM8#
main62470-32100-05i198608-198708
BEIGE,DARK BEIGE,TRIM4#
main62470-32120-02i198708-198710
MAROON,MAROON,TRIM3#
main62470-32120-02i198710-198808
MAROON,TRIM3#
main62470-32120-03i198710-198808
MEDIUM GRAY,TRIM1#
main62470-32120-03i198708-198710
GRAY,MEDIUM GRAY,TRIM1#
main62470-32120-04i198708-198710
BLUE,DARK BLUE,TRIM8#
main62470-32120-04i198710-198808
DARK BLUE,TRIM8#
main62470-32120-05i198708-198710
BEIGE,DARK BEIGE,TRIM4#
main62470-32120-05i198710-198808
DARK BEIGE,TRIM4#
main62470-32140-02i198608-198708
MAROON,MAROON,TRIM3#
main62470-32140-03i198608-198708
GRAY,MEDIUM GRAY,TRIM1#
main62470-32140-04i198608-198708
BLUE,DARK BLUE,TRIM8#
main62470-32140-05i198608-198708
BEIGE,DARK BEIGE,TRIM4#
main62470-32160-02i198708-198710
MAROON,MAROON,TRIM3#
main62470-32160-02i198710-198808
MAROON,TRIM3#
main62470-32160-03i198708-198710
GRAY,MEDIUM GRAY,TRIM1#
main62470-32160-03i198710-198808
MEDIUM GRAY,TRIM1#
main62470-32160-04i198710-198808
DARK BLUE,TRIM8#
main62470-32160-04i198708-198710
BLUE,DARK BLUE,TRIM8#
main62470-32160-05i198708-198710
BEIGE,DARK BEIGE,TRIM4#
main62470-32160-05i198710-198808
DARK BEIGE,TRIM4#
62462GARNISH, ROOF SIDE TRIM, LH
main62480-32100-02i198608-198708
MAROON,MAROON,TRIM3#
main62480-32100-03i198608-198708
GRAY,MEDIUM GRAY,TRIM1#
main62480-32100-04i198608-198708
BLUE,DARK BLUE,TRIM8#
main62480-32100-05i198608-198708
BEIGE,DARK BEIGE,TRIM4#
main62480-32120-02i198710-198808
MAROON,TRIM3#
main62480-32120-02i198708-198710
MAROON,MAROON,TRIM3#
main62480-32120-03i198708-198710
GRAY,MEDIUM GRAY,TRIM1#
main62480-32120-03i198710-198808
MEDIUM GRAY,TRIM1#
main62480-32120-04i198710-198808
DARK BLUE,TRIM8#
main62480-32120-04i198708-198710
BLUE,DARK BLUE,TRIM8#
main62480-32120-05i198708-198710
BEIGE,DARK BEIGE,TRIM4#
main62480-32120-05i198710-198808
DARK BEIGE,TRIM4#
main62480-32140-02i198608-198708
MAROON,MAROON,TRIM3#
main62480-32140-03i198608-198708
GRAY,MEDIUM GRAY,TRIM1#
main62480-32140-04i198608-198708
BLUE,DARK BLUE,TRIM8#
main62480-32140-05i198608-198708
BEIGE,DARK BEIGE,TRIM4#
main62480-32160-02i198708-198710
MAROON,MAROON,TRIM3#
main62480-32160-02i198710-198808
MAROON,TRIM3#
main62480-32160-03i198710-198808
MEDIUM GRAY,TRIM1#
main62480-32160-03i198708-198710
GRAY,MEDIUM GRAY,TRIM1#
main62480-32160-04i198708-198710
BLUE,DARK BLUE,TRIM8#
main62480-32160-04i198710-198808
DARK BLUE,TRIM8#
main62480-32160-05i198708-198710
BEIGE,DARK BEIGE,TRIM4#
main62480-32160-05i198710-198808
DARK BEIGE,TRIM4#
62551ECLIP(FOR REAR SEAT SIDE GARNISH)
main90467-06018-01i198608-198710
BLACK,BLACK
sub90467-06018
main90467-06018-01i198710-198808
BLACK,TRIM1#,3#,4#,8#
sub90467-06018
62551FGARNISH, REAR SEAT SIDE, RH
main62551-32020-02i198710-198808
MAROON,TRIM3#
sub62551-32020
main62551-32020-02i198608-198710
MAROON,MAROON,TRIM3#
sub62551-32020
main62551-32020-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub62551-32020
main62551-32020-03i198710-198808
MEDIUM GRAY,TRIM1#
sub62551-32020
main62551-32020-04i198710-198808
DARK BLUE,TRIM8#
sub62551-32020
main62551-32020-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub62551-32020
main62551-32020-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub62551-32020
main62551-32020-05i198710-198808
DARK BEIGE,TRIM4#
sub62551-32020
62552FGARNISH, REAR SEAT SIDE, LH
main62552-32020-02i198608-198710
MAROON,MAROON,TRIM3#
sub62552-32020
main62552-32020-02i198710-198808
MAROON,TRIM3#
sub62552-32020
main62552-32020-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub62552-32020
main62552-32020-03i198710-198808
MEDIUM GRAY,TRIM1#
sub62552-32020
main62552-32020-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub62552-32020
main62552-32020-04i198710-198808
DARK BLUE,TRIM8#
sub62552-32020
main62552-32020-05i198710-198808
DARK BEIGE,TRIM4#
sub62552-32020
main62552-32020-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub62552-32020
62561PROTECTOR, ROCKER PANEL, INNER FRONT
main62561-32020i198608-198808
RH
main62561-32030i198608-198808
RH
main62562-32020i198608-198808
LH
main62562-32030i198608-198808
LH
62561CCLIP (FOR ROCKER PANEL INNER PROTECTOR)
main90467-11021-01i198608-198710
BLACK,BLACK
sub90467-11068
main90467-11021-01i198710-198808
BLACK,TRIM1#,3#,4#,8#
sub90467-11068
62562PROTECTOR, ROCKER PANEL, INNER REAR
main62563-32020i198608-198808
RH
main62564-32020i198608-198808
LH
62621BPAD, QUARTER WHEEL HOUSE, INNER FRONT RH
main67812-12010i198608-198808
62622BPAD, QUARTER WHEEL HOUSE, INNER FRONT LH
main67812-12010i198608-198808
62623BPAD, QUARTER WHEEL HOUSE, INNER REAR RH
main62623-32010i198608-198808
62624BPAD, QUARTER WHEEL HOUSE, INNER REAR LH
main62624-20030i198710-198808
main62624-32010i198608-198808
6777132010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-32010
9046305024
main90463-05024
9046805021
main90468-05021
9046805060
main90468-05060
9046805076
main90468-05076

33 parts on this diagram · 2 diagrams in section

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
