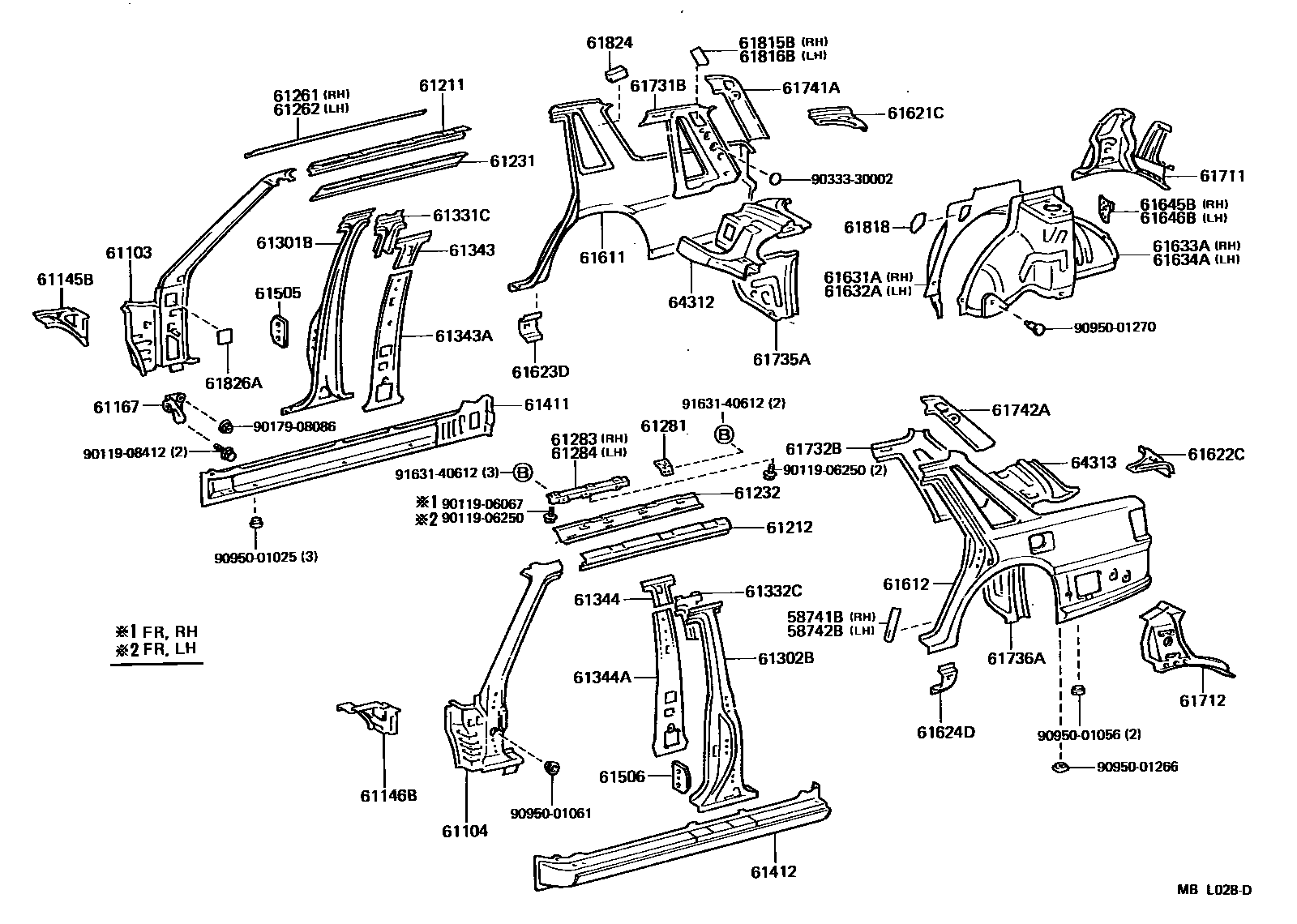

SIDE MEMBER

0001 1 0002 1

58741BPROTECTOR, QUARTER PANEL, RH

main58741-12060iSV2#,VZV21¥860198712-198808

58742BPROTECTOR, QUARTER PANEL, LH

main58741-12060iSV2#,VZV21¥860198712-198808

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-32230iSV21..STD..CND;SV2#,VZV21..USA¥52,100198608-198808

main61021-32330iSV2#,VZV21..(DX,LE)..CND¥52,100198608-198808

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-32260iSV21..STD..CND;SV2#..(DX,STD)..USA¥52,100198608-198808

main61022-32270iVZV21..USA;SV2#..LE..USA¥52,100198608-198808

main61022-32340iSV21..(DX,STD)..CND¥52,100198608-198808

main61022-32350iSV21..LE..CND¥52,100198608-198808

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-32010iSV21¥1,840198608-198808

61146BGUSSET, FRONT BODY PILLAR, LOWER LH

main61146-32010iSV21¥1,840198608-198808

61167BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH

main61165-32010iSV2#,VZV21¥1,670198608-198808

61211RAIL, ROOF SIDE, OUTER RH

main61211-32030iSV21..SED¥6,000198608-198808

main61211-32040iSV21..WG¥5,900198608-198808

61212RAIL, ROOF SIDE, OUTER LH

main61212-32030iSV21..SED¥6,000198608-198808

main61212-32040iSV21,VZV21..WG¥5,900198608-198808

61231RAIL, ROOF SIDE, INNER RH

main61231-32100iSV21..SED..USA¥5,600198608-198808

main61231-32140iSV21..SED..CND¥4,330198608-198808

main61231-32160iSV21,VZV21..WG..CND¥6,300198708-198808

main61231-32170iSV21..WG..CND¥4,250198608-198708

sub61231-32160¥6,300

main61231-32190iSV21..WG..USA¥4,330198608-198808

61232RAIL, ROOF SIDE, INNER LH

main61232-32100iSV2#,VZV21..SED..USA¥5,600198608-198808

main61232-32140iSV21..SED..CND¥4,330198608-198808

main61232-32160iSV21,VZV21..WG..CND¥6,300198708-198808

main61232-32170iSV21..WG..CND¥4,250198608-198708

sub61232-32160¥6,300

main61232-32190iSV21..WG..USA¥4,330198608-198808

61261CHANNEL, ROOF DRIP, RH

main61261-32030iSV2#,VZV21..SED¥3,250198608-198808

main61261-32040iSV21..WG¥3,250198608-198808

61262CHANNEL, ROOF DRIP, LH

main61262-32030iSV2#,VZV21..SED¥3,250198608-198808

main61262-32040iSV21,VZV21..WG¥3,250198608-198808

61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1

main61281-32030iSV21..SED..LE¥1,000198608-198808

main61281-32040iSV21..WG..LE..USA¥1,000198608-198808

61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH

main61283-32030iSV21..SED..(DX,LE)¥1,400198608-198808

main61283-32040iSV21..WG¥1,300198608-198808

61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH

main61284-32030iSV21..SED..LE¥1,400198608-198808

main61284-32040iSV21..WG..LE..USA¥1,300198608-198808

61301BPILLAR, CENTER BODY, OUTER RH

main61301-32900iSV21¥31,900198608-198808

61302BPILLAR, CENTER BODY, OUTER LH

main61302-32900iSV21¥31,900198608-198808

61331CREINFORCEMENT, CENTER PILLAR, UPPER OUTER RH

main61331-32010iSV2#,VZV21¥1,400198608-198808

61332CREINFORCEMENT, CENTER PILLAR, UPPER OUTER LH

main61332-32010iSV21¥1,400198608-198808

61343PILLAR, CENTER BODY, INNER UPPER RH

main61341-32030iSV2#,VZV21..USA¥1,900198608-198808

main61341-32040iSV21..CND¥1,880198608-198808

61343APILLAR, CENTER BODY, INNER RH

main61343-32900iSV21..CND¥13,200198608-198808

main61343-32901iVZV21;SV2#..USA¥13,200198608-198808

61344PILLAR, CENTER BODY, INNER UPPER LH

main61342-32030iSV2#,VZV21..USA¥1,900198608-198808

main61342-32040iSV21..CND¥1,880198608-198808

61344APILLAR, CENTER BODY, INNER LH

main61344-32900iSV21..CND¥13,200198608-198808

main61344-32901iSV2#,VZV21..USA¥13,200198608-198808

61411PANEL, ROCKER, OUTER RH

main61401-32060iSV21¥35,000198608-198808

sub61401-32080¥34,200

61412PANEL, ROCKER, OUTER LH

main61402-32080iSV21¥35,000198608-198808

sub61402-32060¥34,200

61505REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, RH

main61505-32020iSV21¥640198608-198808

61506REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH

main61505-32020iSV21¥640198608-198808

61611PANEL, QUARTER, RH

main61601-32903iSV21..SED¥50,800198608-198710

W/O MUDGUARD

sub61601-32923¥51,200

sub90950-01266¥220

main61601-32903iSV2#,VZV21..SED..CND¥50,800198710-198808

sub61601-32923¥51,200

sub90950-01266¥220

main61601-32904iSV2#,VZV21..SED..USA¥50,800198710-198808

W(MUD GUARD)

sub61601-32923¥51,200

sub90950-01266¥220

main61601-32904iSV21..SED¥50,800198608-198710

W/MUDGUARD

sub61601-32923¥51,200

sub90950-01266¥220

main61601-32909iSV21..WG¥59,400198608-198808

main61601-32916iSV2#,VZV21..SED..USA¥50,800198808-198808

W(MUD GUARD)

61612PANEL, QUARTER, LH

main61602-32904iSV21..SED..(DX,STD)..CND¥50,800198710-198808

sub61602-32939¥51,200

sub90950-01266¥220

main61602-32904iSV21..SED..(DX,STD)¥50,800198608-198710

W/O MUDGUARD

sub61602-32939¥51,200

sub90950-01266¥220

main61602-32905iSV21..SED..(DX,STD)..CND¥50,800198710-198808

W(MUD GUARD)

sub61602-32939¥51,200

sub90950-01266¥220

main61602-32905iSV21..SED..(DX,STD)¥50,800198608-198710

W/MUDGUARD

sub61602-32939¥51,200

sub90950-01266¥220

main61602-32906iSV21..SED..LE¥50,800198608-198710

W/MUD GUARD

sub61602-32941¥51,200

sub90950-01266¥220

main61602-32906iSV2#,VZV21..SED..LE..USA¥50,800198710-198808

W(MUD GUARD)

sub61602-32941¥51,200

sub90950-01266¥220

main61602-32914iSV21..WG..DX¥59,400198608-198808

main61602-32916iSV21,VZV21..WG..LE¥59,400198608-198808

main61602-32923iSV21..SED..LE198608-198710

W/O MUDGUARD

sub61602-32941¥51,200

sub90950-01266¥220

main61602-32923iSV2#,VZV21..SED..LE..CND198710-198808

sub61602-32941¥51,200

sub90950-01266¥220

main61602-32926iSV21..SED..(DX,STD)..CND¥51,200198808-198808

W(MUD GUARD)

main61602-32927iSV2#,VZV21..SED..LE..USA¥51,200198808-198808

W(MUD GUARD)

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-32030iSV2#,VZV21..SED¥1,460198608-198808

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-32030iSV21..SED¥1,460198608-198808

61623DEXTENSION, QUARTER PANEL, FRONT RH

main61623-32020iSV2#,VZV21¥1,120198608-198808

sub61623-32021¥1,090

61624DEXTENSION, QUARTER PANEL, FRONT LH

main61624-32020iSV21¥1,120198608-198808

sub61624-32021¥1,090

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-32030iSV2#,VZV21..SED¥11,900198710-198808

main61631-32050iSV21,VZV21..WG¥11,800198710-198808

main61631-32900iSV21..SED¥11,900198608-198710

sub61631-32030¥11,900

sub61645-32030¥750

main61631-32901iSV21..WG¥11,900198608-198710

sub61631-32050¥11,800

sub61645-32030¥750

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-32030iSV2#,VZV21..SED¥11,900198710-198808

main61632-32050iSV21,VZV21..WG¥11,800198710-198808

main61632-32900iSV21..SED¥11,900198608-198710

sub61632-32030¥11,900

sub61646-32020¥750

main61632-32901iSV21..WG¥11,900198608-198710

sub61632-32050¥11,800

sub61646-32020¥750

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61603-32902iSV21..SED..(DX,STD)¥17,300198708-198808

main61603-32903iSV21..SED..LE¥17,300198708-198808

main61603-32904iSV21..SED..DX¥17,200198608-198708

sub61603-32902¥17,300

sub90333-25001¥140

main61603-32905iSV21..SED..LE¥17,200198608-198708

sub61603-32903¥17,300

sub90333-25001¥140

main61603-32906iSV21,VZV21..WG¥17,300198708-198808

main61603-32907iSV21..WG¥17,200198608-198708

sub61603-32906¥17,300

sub90333-25001¥140

main61603-32908iSV25¥17,200198710-198808

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61604-32902iSV21,VZV21..SED..(DX,STD)¥17,300198708-198808

main61604-32903iSV21..SED..LE¥17,300198708-198808

main61604-32904iSV21..SED..DX¥17,200198608-198708

sub61604-32902¥17,300

sub90333-25001¥140

main61604-32905iSV21..SED..LE¥17,200198608-198708

sub61604-32903¥17,300

sub90333-25001¥140

main61604-32906iSV21,VZV21..WG¥17,300198708-198808

main61604-32907iSV21..WG¥17,200198608-198708

sub61604-32906¥17,300

sub90333-25001¥140

main61604-32908iSV25¥17,200198710-198808

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-32030iSV21,VZV21¥750198710-198808

main61645-32040iSV25¥1,740198710-198808

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-32020iSV21,VZV21¥750198710-198808

main61646-32030iSV25¥870198710-198808

61711PANEL, ROOF SIDE, OUTER RH

main61711-32900iSV21..SED¥6,600198608-198808

main61711-32901iSV21..WG¥7,900198608-198808

61712PANEL, ROOF SIDE, OUTER LH

main61712-32900iSV21..SED¥6,600198608-198808

main61712-32901iSV21..WG¥7,900198608-198808

61731BPANEL, ROOF SIDE, INNER RH

main61731-32030iSV2#,VZV21..SED¥11,300198710-198808

main61731-32030iSV21..SED¥11,300198608-198710

W/O SUN ROOF

main61731-32040iSV21..SED..LE¥11,300198608-198710

W/SUN ROOF

main61731-32040iSV2#,VZV21..SED..(DX,LE)¥11,300198710-198808

W(MOON ROOF)

main61731-32901iSV21,VZV21..WG¥18,100198608-198808

61732BPANEL, ROOF SIDE, INNER LH

main61732-32030iSV21..SED¥11,300198608-198710

W/O SUN ROOF

main61732-32030iSV2#..SED..LE¥11,300198710-198808

main61732-32040iSV21..SED..LE¥11,300198608-198710

W/SUN ROOF

main61732-32040iSV25;SV21..SED..5F..DX;SV21..5F..LE..CND;SV21..SED..4FC..(DX,LE)¥11,300198710-198808

W(MOON ROOF)

main61732-32901iSV21..WG¥18,100198608-198808

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-32030iSV21..WG¥5,900198608-198808

main61735-32901iSV21..SED¥5,900198608-198808

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-32030iSV21..WG¥5,900198608-198808

main61736-32901iSV2#,VZV21..SED¥5,900198608-198808

61741AREINFORCEMENT, BACK DOOR OPENING, UPPER RH

main61741-32040iSV21..WG¥1,650198608-198808

main61741-32900iSV21..SED¥2,260198608-198808

61742AREINFORCEMENT, BACK DOOR OPENING, UPPER LH

main61742-32030iSV21,VZV21..WG¥1,650198608-198808

main61742-32900iSV21..SED..5F;SV21..4FC..STD;SV25,VZV21..SED¥2,260198608-198808

61815BCOVER, ROOF SIDE, INNER UPPER RH

main61815-32020iSV21..SED¥760198608-198808

61816BCOVER, ROOF SIDE, INNER UPPER LH

main61815-32020iSV21..SED¥760198608-198808

61818COVER, ROOF SIDE, INNER UPPER

main61817-32020iSV21¥790198608-198808

61824PLATE, NOISE CONTROL, NO.1

main61824-12010iSV21..WG¥460198608-198808

sub62939-23010¥370

61826APLATE, NOISE CONTROL, NO.3

main61826-32010iSV21¥280198608-198701

sub62939-23010¥370

main62939-23010iSV21¥370198701-198808

sub61824-12110¥1,160

64312BRACKET, PACKAGE TRAY, RH

main64312-32900iSV21..SED¥4,510198608-198808

64313BRACKET, PACKAGE TRAY, LH

main64313-32900iSV21..SED¥4,510198608-198808

9011906067

main90119-06067¥90

9011906250

main90119-06250¥120

9011908412

main90119-08412

9017908086

main90179-08086¥160

9033330002

main90333-30002¥70

9095001025

main90950-01025¥240

9095001056

main90950-01056¥230

9095001061

main90950-01061¥240

9095001266

main90950-01266¥220

9095001270

main90950-01270¥230

9163140612

main91631-40612¥120

66 parts on this diagram · 2 diagrams in section
