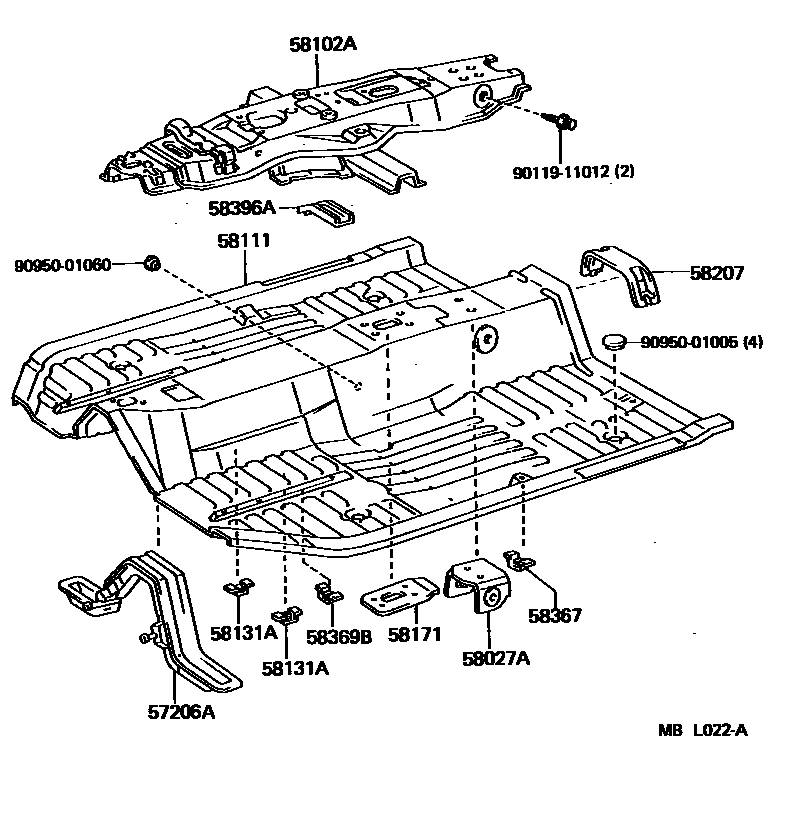

FLOOR PAN & LOWER BACK PANEL
57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2
58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
58111PAN, FRONT FLOOR
58131ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58171REINFORCEMENT, PARKING BRAKE BASE
58207BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1
58367BRACKET, FUEL TUBE CLAMP
58369BBRACKET, FUEL TUBE, NO.3
58396ABRACKET, WIRE HARNESS CLAMP
9011911012
9095001005
9095001060
13 parts on this diagram · 5 diagrams in section
