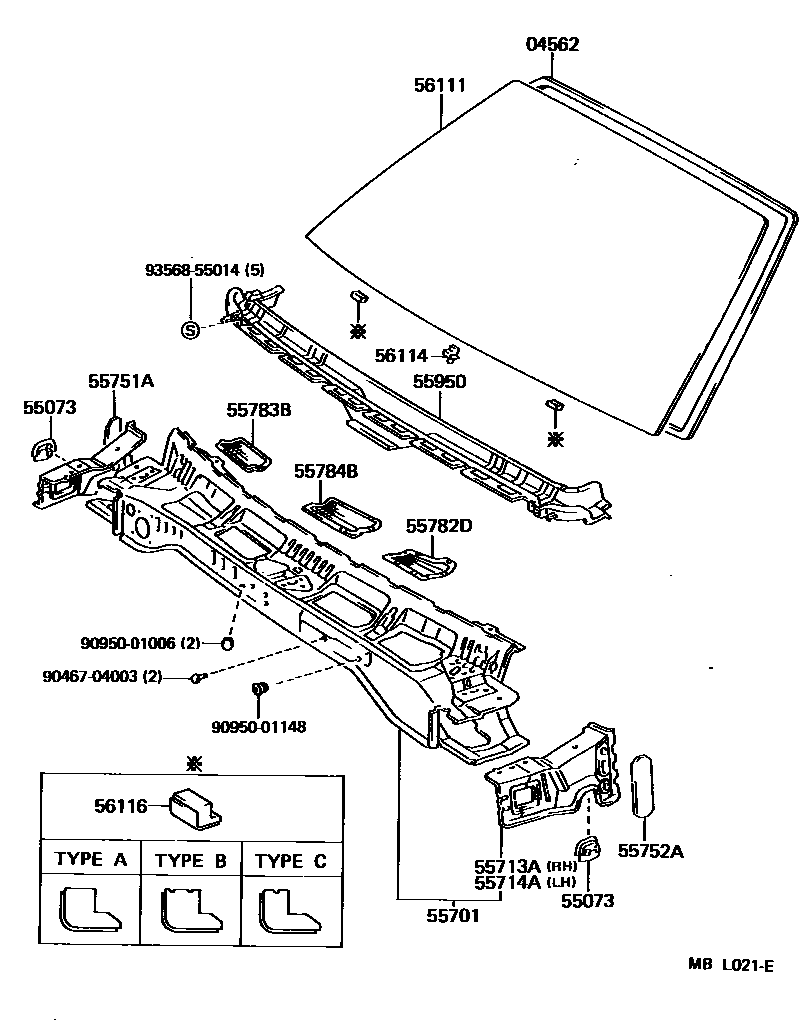

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30040iSV21198608-198808

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-20020iSV21198608-198701

main55073-32020iSV21198701-198703

55701PANEL SUB-ASSY, COWL

main55700-32130iSV21198608-198808

sub55700-32131

main55700-32310iSV25198710-198808

sub55700-32311

55713APANEL, COWL TOP SIDE, RH

main55713-32020iSV21198608-198808

55714APANEL, COWL TOP SIDE, LH

main55714-32020iSV21198608-198808

55751ASHIELD, COWL VENTILATOR SPLASH, RH

main55751-32010iSV21198608-198808

55752ASHIELD, COWL VENTILATOR SPLASH, LH

main55751-32010iSV21198608-198808

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-32030iSV21198608-198808

main55782-32040iVZV21198802-198808

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-32030iSV21198608-198808

main55783-32040iVZV21198802-198808

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-32030iSV21198608-198808

main55784-32040iVZV21198802-198808

55950NOZZLE ASSY, DEFROSTER

main55950-32040iSV21198608-198808

56111GLASS, WINDSHIELD

main56111-32200iSV21..DX,STD198608-198710

*TL,T=5.3,*TL,T=5.3

main56111-32200iSV2#,VZV21..DX,STD198710-198808

*TL,T=5.3

main56111-32210iSV2#,VZV21..LE198710-198808

*TL,T=5.3

sub56111-32211

main56111-32210iSV21..LE198608-198710

*TL,T=5.3,*TL,T=5.3

sub56111-32211

main56111-32220iSV2#,VZV21..LE198710-198808

*TL,T=5.3,BRONZE

main56111-32220iSV21..LE198608-198710

*TL,T=5.3,BRONZE,BRONZE,*TL,T=5.3

56114RETAINER, WINDSHIELD GLASS

main56114-32010iSV21198608-198808

56116SPACER, WINDSHIELD GLASS

main56116-32040iSV2#,VZV21198608-198808

TYPE A

sub56116-32060

main56116-32050iSV21198608-198808

TYPE B

sub56116-32060

main56116-32060iSV2#,VZV21198608-198808

TYPE C

9046704003

main90467-04003

9095001006

main90950-01006

9095001148

main90950-01148

9356855014

main93568-55014

18 parts on this diagram · 1 diagram in section
