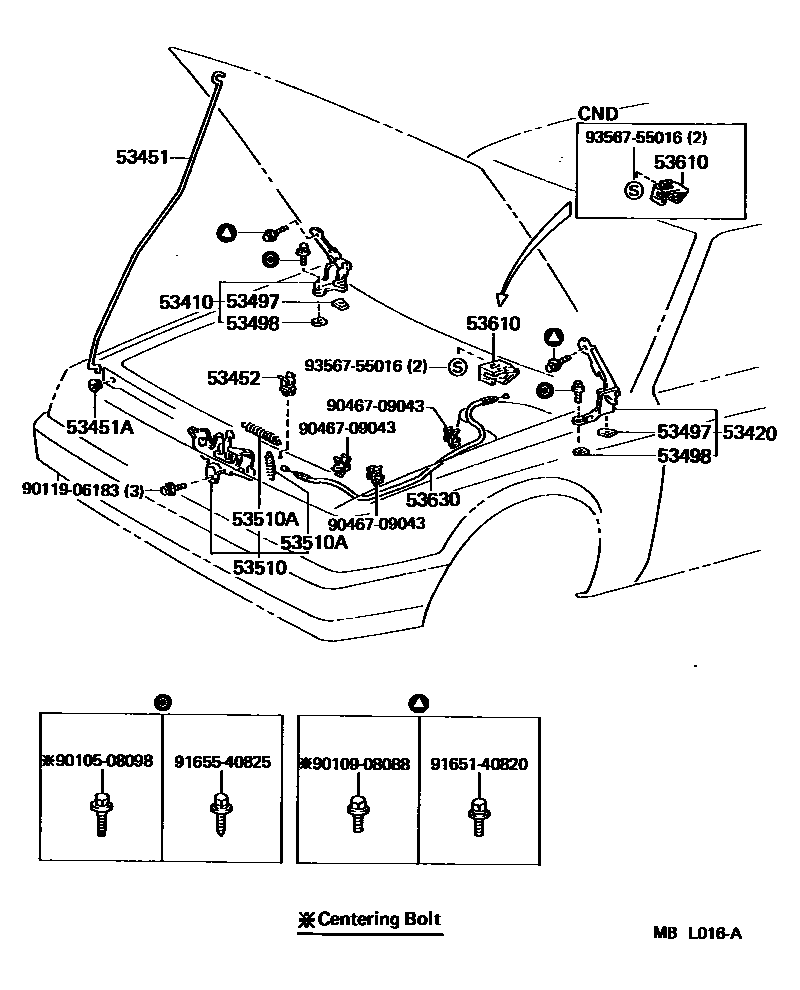

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-32030iSV2#,VZV21198608-198808

sub53410-32031

main53410-32031iSV2#,VZV21198808-198808

53420HINGE ASSY, HOOD, LH

main53420-32030iSV21198608-198808

sub53420-32031

main53420-32031iSV2#,VZV21198808-198808

53451ROD, HOOD SUPPORT

main53451-32030iSV21198608-198808

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15011iSV21198608-198808

53452HOLDER, HOOD STAY

main53452-32010iSV2#,VZV21198608-198808

53497PAD, HOOD HINGE, NO.1

main53497-17010iSV21198608-198808

sub53497-17011

main53497-17011iSV2#,VZV21198808-198808

53498PAD, HOOD HINGE, NO.2

main53498-12010iSV21198608-198808

sub53498-12011

main53498-12011iSV2#,VZV21198808-198808

53510LOCK ASSY, HOOD

main53510-32050iSV21198608-198808

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09029iSV21198608-198808

WD=0.9,WD=0.9

main90506-20008iSV21198608-198701

WD=2.0,CW=17,WD=2.0

main90506-20054iSV21198701-198808

WD=2.0,CW=17,WD=2.0

53610LEVER ASSY, HOOD LOCK RELEASE

main53601-10020-05iSV21..CND198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub53601-10020

sub53601-20060

main53601-10020-05iSV2#,VZV21..CND198710-198808

DARK BEIGE,TRIM4#

sub53601-10020

sub53601-20060

main53601-10020-13iSV21..CND198608-198710

GRAY,MEDIUM GRAY,TRIM1#

sub53601-10020

sub53601-20060

main53601-10020-13iSV2#,VZV21..CND198710-198808

MEDIUM GRAY,TRIM1#

sub53601-10020

sub53601-20060

main53601-10020-24iSV21..CND198608-198710

BLUE,DARK BLUE,TRIM8#

sub53601-10020

sub53601-20060

main53601-10020-24iSV2#,VZV21..CND198710-198808

DARK BLUE,TRIM8#

sub53601-10020

sub53601-20060

main53601-32010-02iSV21..USA198608-198710

MAROON,MAROON,TRIM3#

sub53601-32010

main53601-32010-02iSV2#,VZV21..(DX,LE)..USA198710-198807

MAROON,TRIM3#

sub53601-32010

main53601-32010-03iSV2#,VZV21..(DX,LE)..USA198710-198807

MEDIUM GRAY,TRIM1#

sub53601-32010

main53601-32010-03iSV21..USA198608-198710

GRAY,MEDIUM GRAY,TRIM1#

sub53601-32010

main53601-32010-04iSV2#,VZV21..(DX,LE)..USA198710-198807

DARK BLUE,TRIM8#

sub53601-32010

main53601-32010-04iSV21..USA198608-198710

BLUE,DARK BLUE,TRIM8#

sub53601-32010

main53601-32010-05iSV25..LE..USA;SV21,VZV21..(DX,LE)..USA198710-198808

DARK BEIGE,TRIM4#

sub53601-32010

main53601-32010-05iSV21..USA198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub53601-32010

main53601-32010-B0iSV2#,VZV21..USA198807-198808

MEDIUM GRAY,TRIM1#

sub53601-32010

main53601-32010-D0iSV2#,VZV21..USA198807-198808

MAROON,TRIM3#

sub53601-32010

main53601-32010-J0iSV2#,VZV21..USA198807-198808

DARK BLUE,TRIM8#

sub53601-32010

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-32060iSV21198608-198808

9010508098

main90105-08098

9010908088

main90109-08088

9011906183

main90119-06183

9046709043

main90467-09043

9165140820

main91651-40820

9165540825

main91655-40825

9356755016

main93567-55016

18 parts on this diagram · 1 diagram in section
