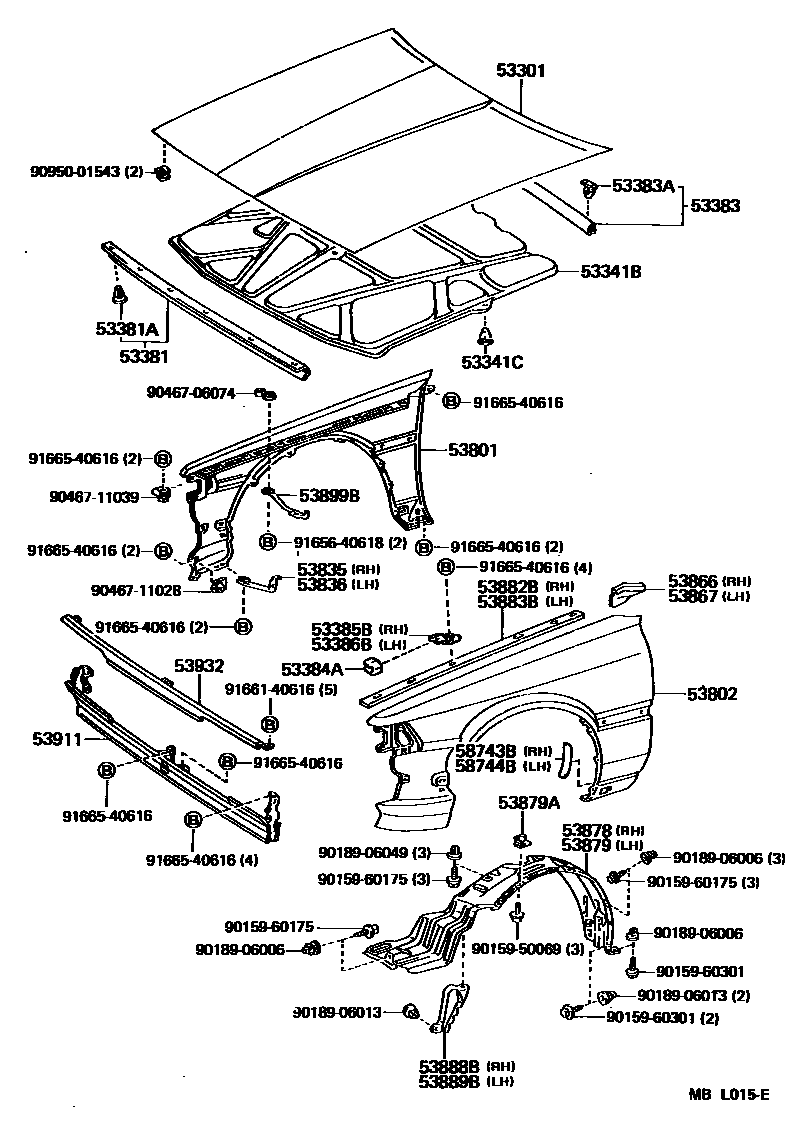

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
sub85035-32120
sub85035-32140
sub85035-32150
sub85035-32160
sub85035-32170
sub85035-32180
sub85035-32190
sub85035-32200
sub85370-32170
sub85370-32180
sub85370-32190
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53383SEAL, HOOD TO COWL TOP
53383ACLIP(FOR HOOD TO COWL TOP SEAL)
53384ABUMPER, FENDER TO HOOD
53385BBRACKET, FENDER TO HOOD BUMPER, RH
53386BBRACKET, FENDER TO HOOD BUMPER, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53835BRACE, FRONT FENDER TO EXTENSION, RH
53836BRACE, FRONT FENDER TO EXTENSION, LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53878LINER, FRONT FENDER, RH
53879LINER, FRONT FENDER, LH
53879ARETAINER, FRONT FENDER LINER
53882BSEAL, FRONT FENDER, RH
53883BSEAL, FRONT FENDER, LH
53888BSEAL, FRONT FENDER SPLASH SHIELD, RH NO.2
53889BSEAL, FRONT FENDER SPLASH SHIELD, LH NO.2
53899BSUPPORT, FRONT FENDER PANEL
53911PANEL, FRONT VALANCE
53932PANEL SUB-ASSY, FRONT END
58743BPROTECTER, FRONT FENDER PANEL, RH
58744BPROTECTER, FRONT FENDER PANEL, LH
9015950069
9015960175
9015960301
9018906006
9018906013
9018906049
9046706074
9046711028
9046711039
9095001543
9165640618
9166140616
9166540616
41 parts on this diagram · 1 diagram in section
