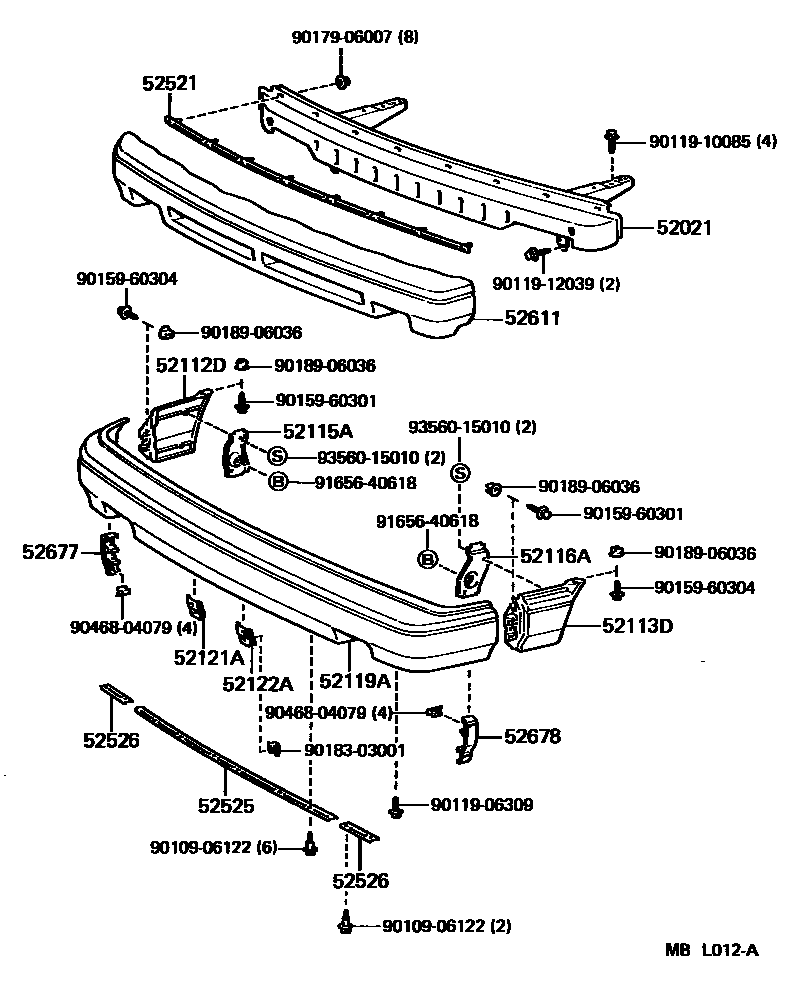

FRONT BUMPER & BUMPER STAY

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-32040iSV21198608-198710

52112DEXTENSION, FRONT BUMPER, RH

main52112-32030iSV21198608-198710

52113DEXTENSION, FRONT BUMPER, LH

main52113-32030iSV21198608-198710

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-32020iSV2#,VZV21198710-198808

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-32020iSV21198608-198710

52119ACOVER, FRONT BUMPER

main52119-32180iSV21..DX,STD198608-198710

main52119-32907iSV21..LE198608-198710

52121ABRACKET, FRONT LICENSE PLATE MOUNTING, RH

main52121-32040iSV2#,VZV21198710-198808

52122ABRACKET, FRONT LICENSE PLATE MOUNTING, LH

main52122-32010iSV21198608-198710

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-32060iSV21198608-198710

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52525-32020iSV21198608-198710

52526RETAINER, FRONT BUMPER, LOWER SIDE

main52526-32040×2iSV21198608-198710

52611ABSORBER, FRONT BUMPER ENERGY

main52611-32070iSV21198608-198710

52677SUPPORT, FRONT BUMPER SIDE, NO.2, RH

main52677-32020iSV21198608-198710

52678SUPPORT, FRONT BUMPER SIDE, NO.2, LH

main52678-32020iSV21198608-198710

9010906122

main90109-06122

9011906309

main90119-06309

9011910085

main90119-10085

9011912039

main90119-12039

9015960301

main90159-60301

9015960304

main90159-60304

9017906007

main90179-06007

9018303001

main90183-03001

9018906036

main90189-06036

9046804079

main90468-04079

9165640618

main91656-40618

9356015010

main93560-15010

26 parts on this diagram · 1 diagram in section
