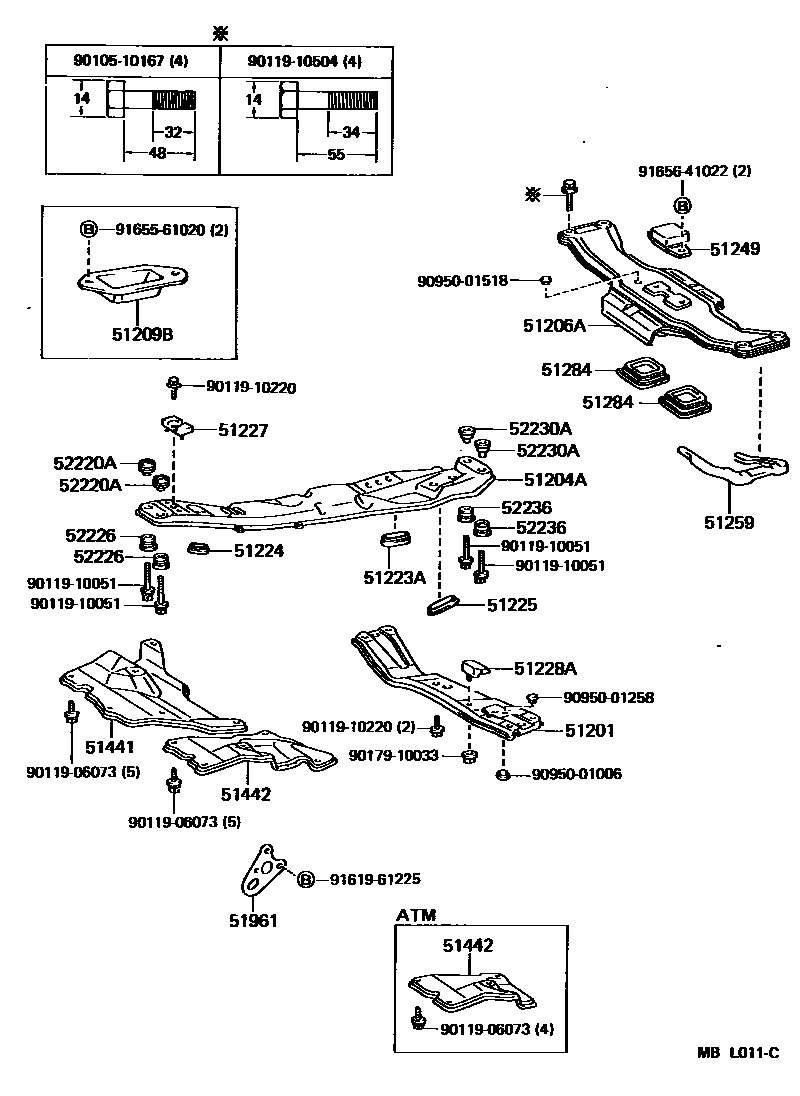

SUSPENSION CROSSMEMBER & UNDER COVER
51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT
51223ACOVER, ENGINE MOUNTING HOLE
51224COVER, ENGINE MOUNTING HOLE, NO.2
51225COVER, ENGINE MOUNTING HOLE, NO.3
51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER
51228AWEIGHT, FRONT SUSPENSION MEMBER DAMPER, LH
51249DAMPER, REAR SUSPENSION MEMBER
51259PROTECTOR, REAR SUSPENSION MEMBER EDGE
51284COVER, REAR SUSPENSION MEMBER HOLE
51441COVER, ENGINE UNDER, NO.1
51442COVER, ENGINE UNDER, NO.2
51961HOOK, NO.1
52220ACUSHION ASSY, CENTER MEMBER MOUNTING, FRONT UPPER
52226CUSHION, CENTER MEMBER MOUNTING, FRONT LOWER
52230ACUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER
52236CUSHION, CENTER MEMBER MOUNTING, REAR LOWER
9010510167
main90105-10167
9011906073
main90119-06073
9011910051
main90119-10051
9011910220
main90119-10220
9011910504
main90119-10504
9017910033
main90179-10033
9095001006
main90950-01006
9095001258
main90950-01258
9095001518
main90950-01518
9161961225
main91619-61225
9165561020
main91655-61020
9165641022
main91656-41022
31 parts on this diagram · 2 diagrams in section
