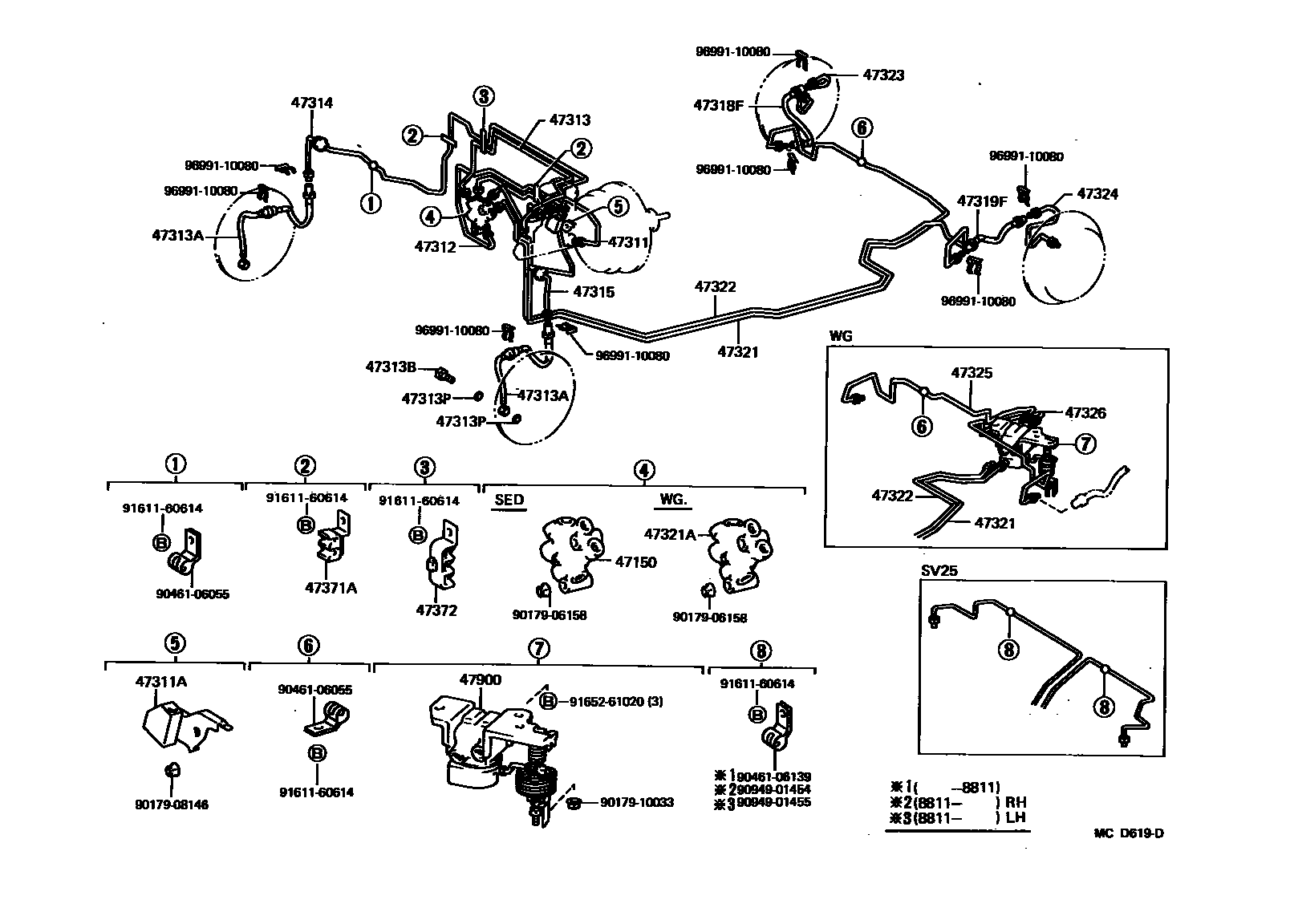

BRAKE TUBE & CLAMP

0001 1 0002 1W/ANTI-LOCK BRAKE SYSTEM 0003 1

47150VALVE ASSY, PROPORTIONING

main47150-16040iSV25¥16,800198705-198808

sub47150-12260¥13,500

main47150-20130iSV21..SED..(DX,LE)..CND¥14,100198608-198808

sub47150-12240¥16,800

main47150-20140iVZV21..SED¥16,800198802-198808

main47150-32040iVZV21..SED..LE..USA¥16,700198805-198808

W(ANTI-LOCK BRAKE SYSTEM)

main47150-32060iVZV21..SED..LE¥16,700198802-198808

W(ANTI-LOCK BRAKE SYSTEM)

main47150-32070iSV25..CND;VZV21..WG..LE¥16,700198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

47311TUBE, FRONT BRAKE, NO.1

main47311-32060iSV2#,VZV21¥410198608-198808

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10147iSV25,VZV21..LE¥1,000198802-198808

W(ANTI-LOCK BRAKE SYSTEM)

main90413-10165iSV2#,VZV21¥1,240198608-198808

47312TUBE, FRONT BRAKE, NO.2

main47312-32100iSV21¥1,340198608-198801

sub47312-32101¥1,340

main47312-32101iSV2#,VZV21¥1,340198802-198808

47313TUBE, FRONT BRAKE, NO.3

main47313-32090iSV2#,VZV21¥1,120198608-198808

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02496iSV21¥2,650198608-198808

sub90947-02987

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iSV21¥200198608-198808

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iSV21¥100198608-198808

47314TUBE, FRONT BRAKE, NO.4

main47314-32090iSV21¥1,880198608-198801

sub47314-32091¥1,830

main47314-32091iSV2#,VZV21¥1,830198802-198808

47315TUBE, FRONT BRAKE, NO.5

main47315-32070iSV2#,VZV21¥1,120198608-198808

47318TUBE, FRONT BRAKE, NO.8

main47318-32010iSV25,VZV21..LE¥1,680198710-198808

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02497iSV21¥1,960198608-198808

main90947-02498iVZV21¥2,870198802-198808

main90947-02549iSV25¥2,470198710-198808

sub90947-02939

47319TUBE, FRONT BRAKE, NO.9

main47319-32020iSV25,VZV21..LE¥1,120198710-198808

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02497iSV21¥1,960198608-198808

main90947-02498iVZV21¥2,870198802-198808

main90947-02549iSV25¥2,470198710-198808

sub90947-02939

47321TUBE, REAR BRAKE, NO.1

main47321-32050iSV21..SED¥5,700198608-198710

main47321-32060iSV21,VZV21..WG¥4,540198608-198808

main47321-32100iSV25¥4,810198710-198808

main47321-32110iSV21,VZV21..SED¥5,700198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

47321AWAY(FOR REAR BRAKE TUBE)

main90413-10205iSV21,VZV21..WG¥1,440198608-198808

47322TUBE, REAR BRAKE, NO.2

main47322-32040iSV21..SED¥4,350198608-198710

main47322-32050iSV21..WG¥4,050198608-198808

main47322-32090iSV25¥4,650198710-198808

main47322-32100iSV21,VZV21..SED¥4,430198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

47323TUBE, REAR BRAKE, NO.3

main47323-32050iSV21¥600198608-198808

47324TUBE, REAR BRAKE, NO.4

main47324-32050iSV21¥600198608-198808

47325TUBE, REAR BRAKE, NO.5

main47325-32030iSV21..WG¥1,680198608-198808

47326TUBE, REAR BRAKE, NO.6

main47326-32010iSV21..WG¥1,490198608-198808

47371ACLAMP, BRAKE TUBE, NO.1

main47371-30010iSV21¥880198608-198710

main47371-30010iSV25,VZV21..LE¥880198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

47372CLAMP, BRAKE TUBE, NO.2

main47371-30030iSV21¥1,080198608-198808

47900VALVE ASSY, LOAD SENSING W/SPRING

main47900-32010iSV21..WG¥19,000198608-198710

sub47900-32011

9017906158

main90179-06158¥70

9017908146

main90179-08146¥180

9017910033

main90179-10033¥130

9046106055

main90461-06055¥220

9046106139

main90461-06139¥620

9094901454

main90949-01454¥340

9094901455

main90949-01455¥340

9161160614

main91611-60614¥180

9165261020

main91652-61020¥180

9699110080

main96991-10080¥100

34 parts on this diagram · 3 diagrams in section
