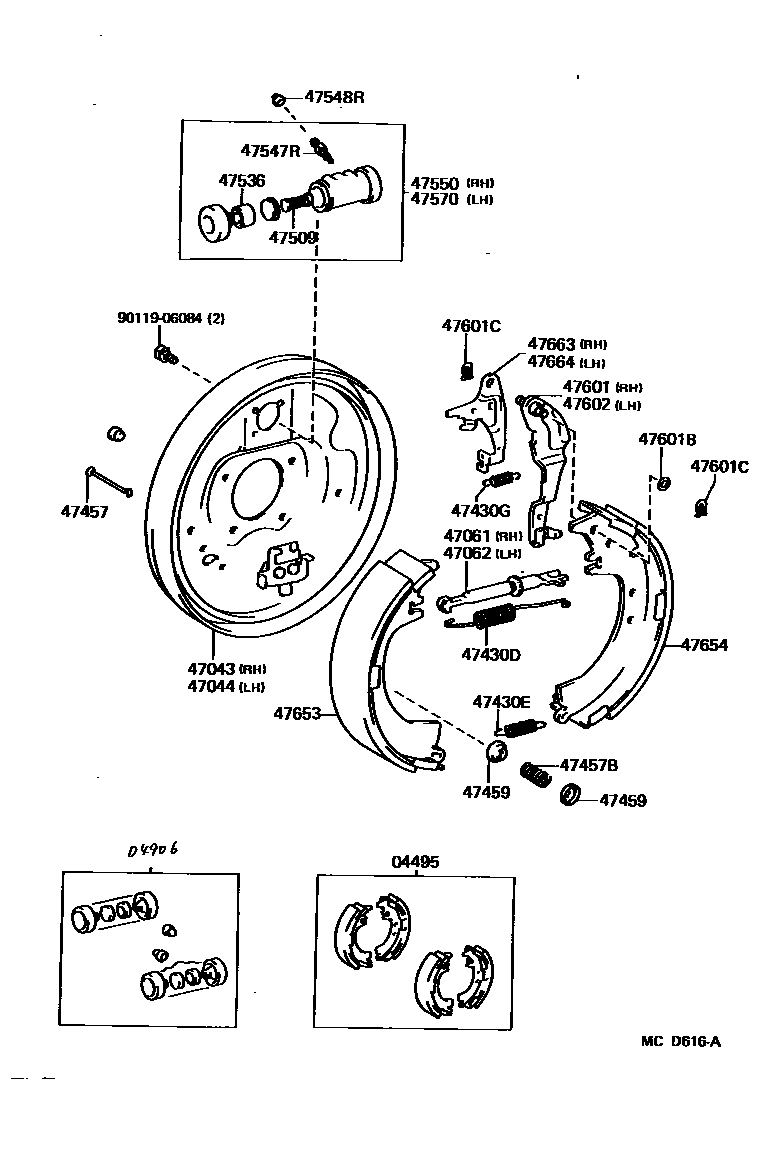

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04495SHOE KIT, REAR BRAKE
sub04495-32021
04906CUP KIT, REAR WHEEL CYLINDER
47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47061STRUT SET, PARKING BRAKE SHOE, RH
sub47061-43010
47062STRUT SET, PARKING BRAKE SHOE, LH
sub47062-43010
47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
RH
LH
47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47457BSPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN)
47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47509SPRING SUB-ASSY, REAR WHEEL CYLINDER PISTON
47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47601BSHIM, REAR PARKING BRAKE SHOE LEVER
T=0.3
T=0.3,T=0.3
T=0.6
T=0.6,T=0.6
T=0.9,T=0.9
T=0.9
T=0.2,T=0.2
T=0.2
T=0.4
T=0.4,T=0.4
T=0.5
T=0.5,T=0.5
47601CWASHER, C(FOR REAR BRAKE)
T=1.2
47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)
47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)
47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)
47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)
9011906084
main90119-06084
