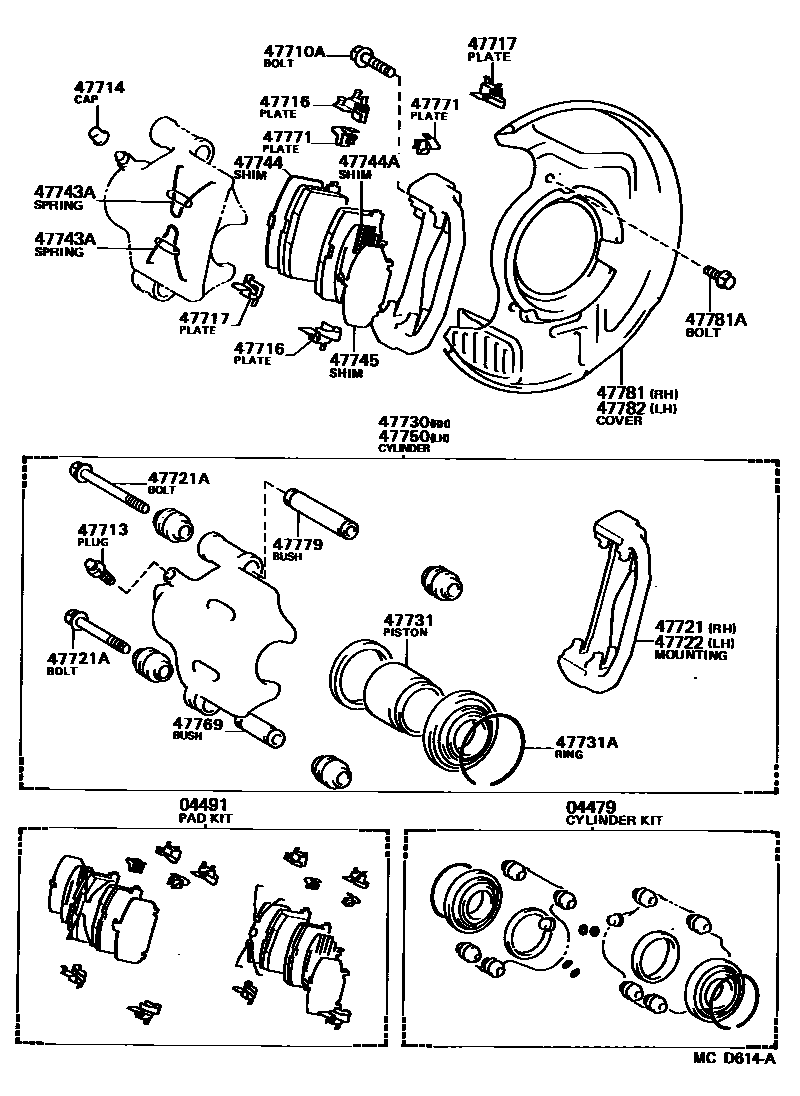

FRONT DISC BRAKE CALIPER & DUST COVER
04479CYLINDER KIT, DISC BRAKE, FRONT
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
*12-1.25PX25.5-23
*12-1.25PX25.8-19.5,W(ANTI-LOCK BRAKE SYSTEM)
47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
sub47716-32041
47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
sub47717-32041
47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
*10-1.25PX65.5-30
*10-1.25PX65.5-30,*10-1.25PX65.5-30
*10-1.25PX95.5-30
*10-1.25PX95.5-30,*10-1.25PX95.5-30
47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
47731PISTON, FRONT DISC BRAKE
47731ARING, SET(FOR FRONT DISC BRAKE PISTON)
47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47750CYLINDER ASSY, DISC BRAKE, LH
47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47771PLATE, PAD WEAR INDICATOR, NO.1
47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
24 parts on this diagram · 2 diagrams in section
