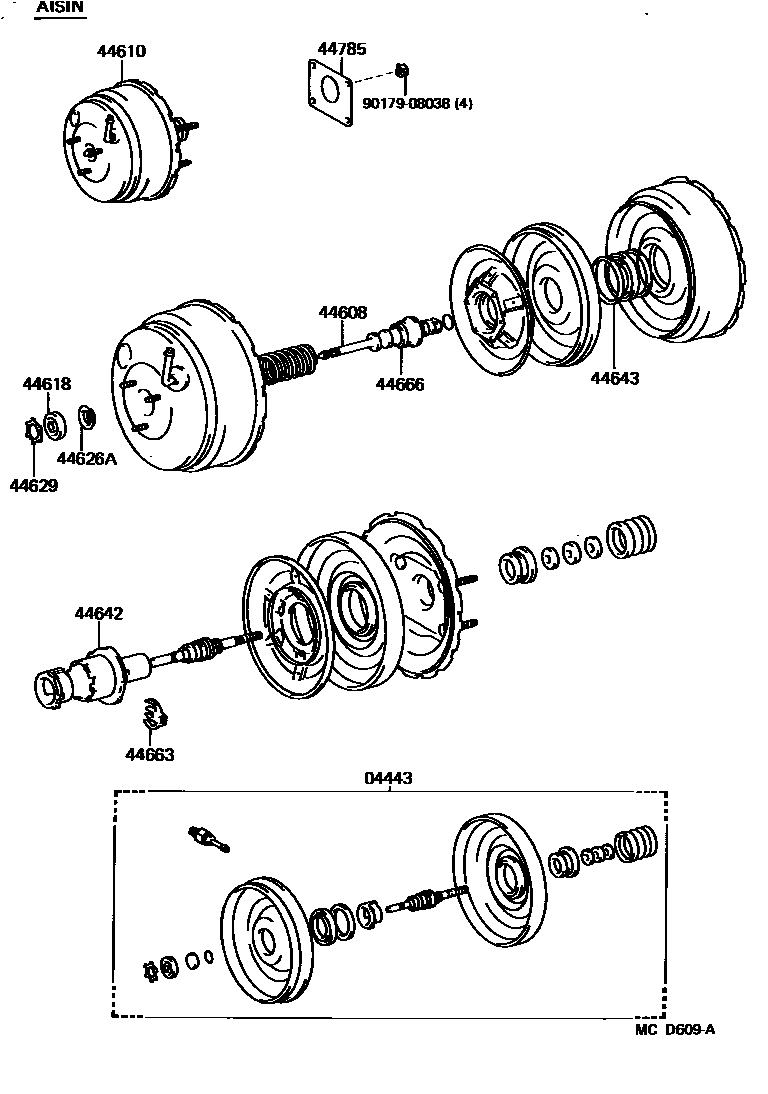

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

04443BOOSTER KIT, BRAKE

main04443-32170iSV2#¥15,500198710-198802

main04443-32200iSV21¥14,000198608-198802

main04443-32270iSV2#,VZV21¥13,200198802-198808

main04443-32280iSV2#,VZV21¥14,000198802-198808

main04443-32360iSV25,VZV21..LE¥14,600198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-20800iSV25,VZV21..LE¥1,260198802-198808

main44606-20800iSV21¥1,260198608-198808

AISIN

main44608-17090iSV2#,VZV21¥2,010198708-198808

JKC

main44608-20810iSV21¥2,010198608-198708

JKC

44610BOOSTER ASSY, BRAKE

main44610-32190iSV21¥63,300198608-198802

main44610-32260iSV2#,VZV21¥63,100198802-198808

sub44610-32300¥69,200

main44610-32300iSV25,VZV21..LE¥69,200198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

44618SEAL, BOOSTER BODY

main44621-14030iSV21¥400198608-198808

44626ARETAINER, BOOSTER BODY SEAL

main44626-60010iSV21¥160198608-198808

44629RING, CIRCULAR INTERNAL

main44628-60010iSV21¥440198608-198808

44642PISTON, BRAKE BOOSTER

main44642-20800iSV21¥2,740198608-198808

44643RETAINER, DIAPHRAGM

main44643-20800iSV21¥350198608-198808

44663KEY, VALVE STOPPER

main44635-20800iSV21¥230198608-198808

44666CASE, REACTION DISC

main44657-20800iSV21¥1,430198608-198802

main44657-30560iSV2#,VZV21¥1,430198802-198808

44785GASKET, BRAKE BOOSTER

main44785-32010iSV21¥220198608-198808

9017908038

main90179-08038¥130

12 parts on this diagram · 4 diagrams in section
