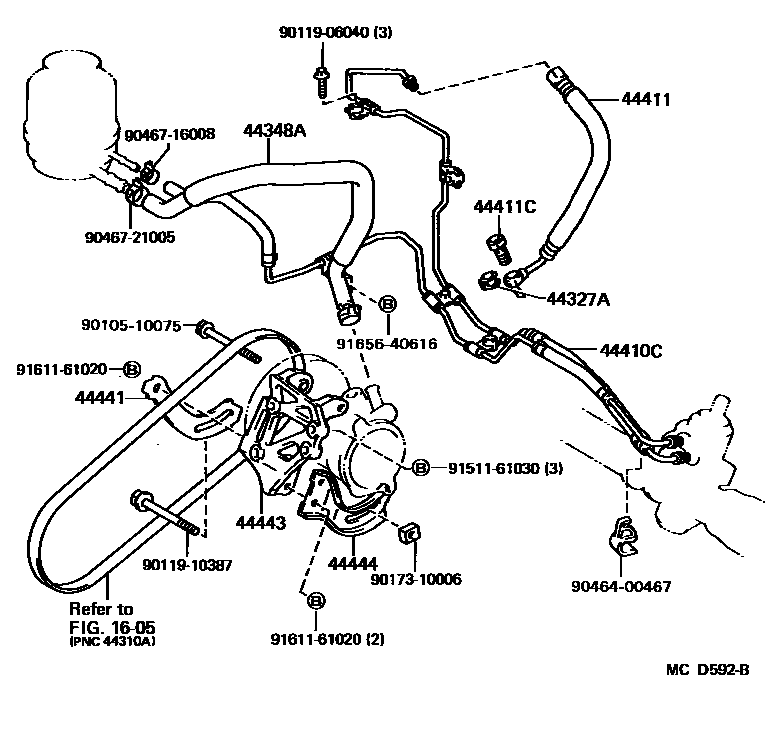

POWER STEERING TUBE

0001 1 0002 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iSV21¥260198608-198808

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-32050iSV21¥6,300198608-198808

44410TUBE ASSY, PRESSURE FEED

main44410-32320iVZV21¥24,300198802-198808

sub44410-32321¥24,300

44410CTUBE ASSY, PRESSURE FEED, NO.1

main44410-32150iSV21¥27,400198608-198808

main44410-32230iSV25..LE¥30,300198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

44411HOSE, PRESSURE FEED

main44411-32050iSV21¥10,800198608-198808

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16008iSV21¥610198608-198808

44441BRACKET, PUMP, FRONT

main44441-32010iSV21¥1,130198608-198808

44443BRACKET, PUMP

main44443-20050iSV21¥5,300198608-198808

44444STAY, PUMP, REAR

main44444-20030iSV21¥1,300198608-198808

9010510075

main90105-10075¥180

9011906040

main90119-06040¥130

9011910387

main90119-10387¥260

9017310006

main90173-10006¥160

9046400467

main90464-00467¥410

9046716008

main90467-16008¥240

9046721005

main90467-21005¥330

9151161030

main91511-61030¥240

9161161020

main91611-61020¥240

9165640616

main91656-40616¥100

20 parts on this diagram · 2 diagrams in section
