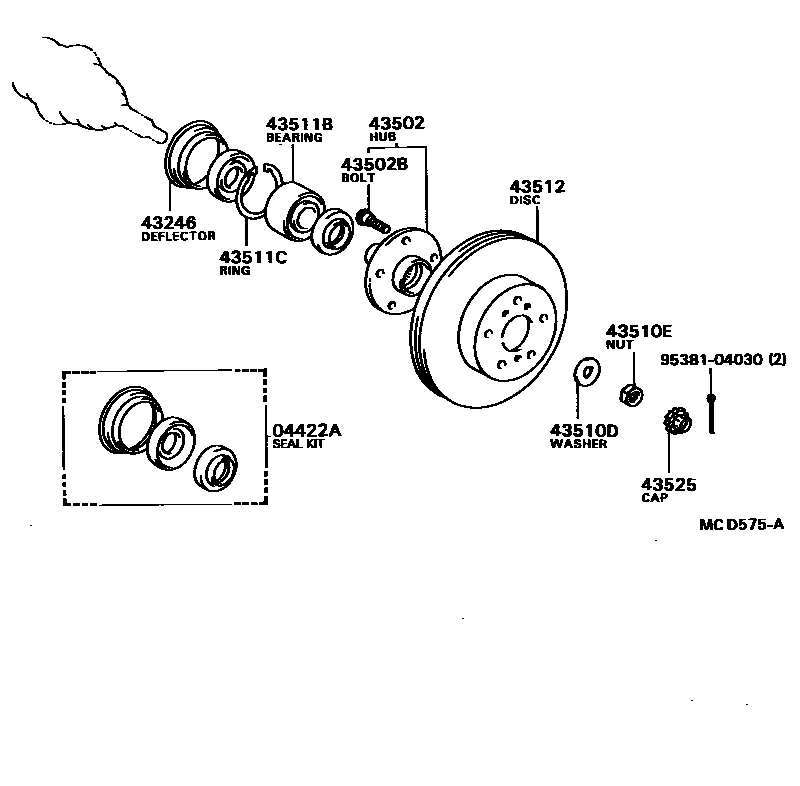

FRONT AXLE HUB

04422ASEAL KIT, FRONT AXLE OIL

main04422-32010iSV21198608-198808

43246DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1

main43246-32011iSV21198608-198808

43502HUB SUB-ASSY, FRONT AXLE

main43502-20040iSV2#198608-198711

sub43502-32040

main43502-32040iSV2#,VZV21198711-198808

sub43502-32050

main43503-32010iSV21198708-198710

W/*66

sub43503-32020

main43503-32010iSV25,VZV21..LE198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

sub43503-32020

43502BBOLT, HUB (FOR FRONT AXLE)

main90942-02047iSV21198608-198808

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90201-20012iSV21198608-198808

43510ENUT (FOR STEERING KNUCKLE)

main90170-19001iSV2#,VZV21198608-198808

43511BBEARING (FOR FRONT AXLE HUB)

main90369-38003iSV21198608-198808

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-79002iSV21198608-198808

OD=79

main90521-79003iVZV21;SV21..STD198710-198808

T=2.50-2.57,T=2.50-2.57

main90521-79004iVZV21;SV21..STD198710-198808

T=2.57-2.62,T=2.57-2.62

main90521-79005iVZV21;SV21..STD198710-198808

T=2.62-2.67,T=2.62-2.67

main90521-79006iVZV21;SV21..STD198710-198808

T=2.67-2.72,T=2.67-2.72

43512DISC, FRONT

main43512-32090iSV21198608-198705

sub43512-32170

main43512-32120iSV21198705-198808

sub43512-32200

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-16010iSV21198608-198808

9538104030

main95381-04030

11 parts on this diagram · 1 diagram in section
