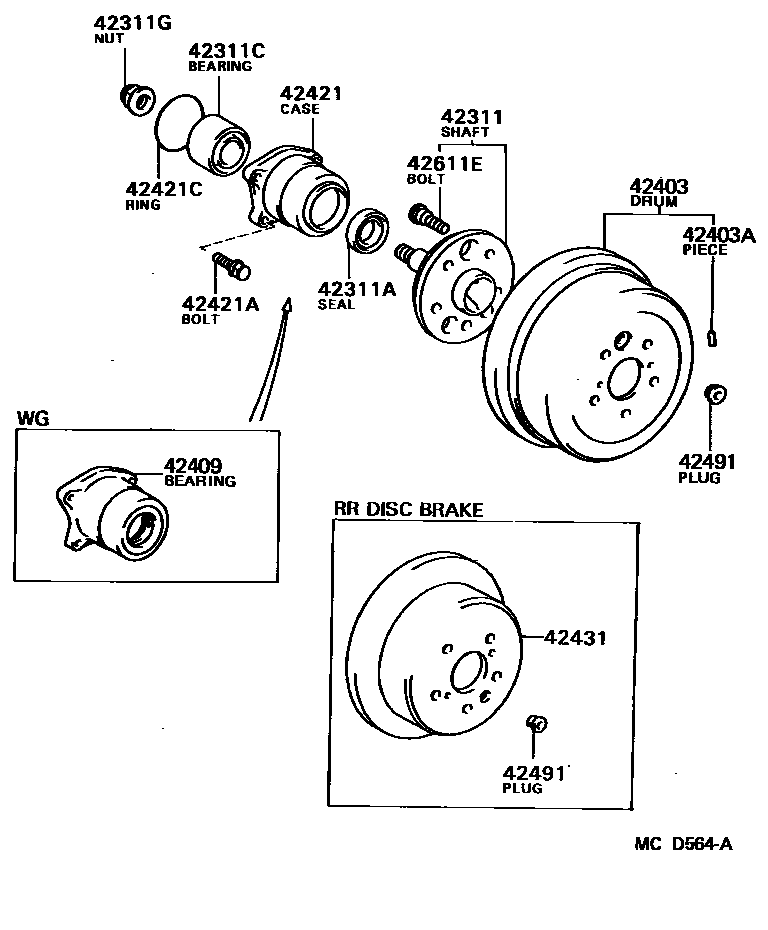

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311SHAFT, REAR AXLE

main42301-20070iSV25¥14,900198710-198808

main42301-32020iVZV21..LE¥14,200198802-198808

W(ANTI-LOCK BRAKE SYSTEM)

sub42410-32050¥24,400

main42301-32030iSV21¥13,900198608-198702

sub42301-32031¥13,600

main42301-32031iSV21¥13,600198702-198808

sub42410-20140¥24,300

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-42018iSV21..SED¥270198608-198808

main90311-52005iSV25¥520198710-198808

OUTER

main90311-56007iSV25¥520198710-198808

INNER

42311CBEARING(FOR REAR AXLE SHAFT)

main90369-30044iSV21..SED¥6,900198608-198808

main90369-38003iSV25¥7,000198710-198808

42311GNUT(FOR REAR AXLE SHAFT)

main90170-19001iSV25¥320198710-198808

main90179-20003iSV21¥510198608-198808

42403DRUM SUB-ASSY, REAR BRAKE

main42431-32030iSV21¥12,000198608-198808

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117iSV21¥130198608-198703

10G,10G

main90937-01118iSV21¥130198608-198703

20G,20G

main90937-01119iSV21¥130198608-198703

30G,30G

main90937-01195iSV21¥170198608-198703

40G,40G

main90937-01196iSV21¥190198608-198703

50G,50G

main90937-01197iSV21¥270198608-198703

60G,60G

main90937-01287iSV21¥250198710-198808

10G

main90937-01287iSV21¥250198703-198710

10G,10G

main90937-01288iSV21¥330198703-198710

20G,20G

main90937-01288iSV21¥330198710-198808

20G

main90937-01289iSV21¥430198703-198710

30G,30G

main90937-01289iSV21¥430198710-198808

30G

42409BEARING SUB-ASSY, REAR AXLE

main42409-32010iSV21..WG¥16,000198608-198808

sub42409-33020¥16,100

42421CASE, REAR AXLE BEARING

main42421-20020iSV21..SED¥7,500198608-198808

sub42409-20010¥16,100

42421ABOLT (FOR REAR AXLE BEARING CASE)

main90105-10124iSV21¥200198608-198808

42421CRING, O (FOR REAR AXLE BEARING CASE)

main90301-63003iSV21¥350198608-198808

sub90301-63006¥350

42431DISC, REAR

main42431-20090iVZV21¥10,200198802-198808

sub42431-20160¥10,200

main42431-20100iSV25¥10,200198710-198808

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-14010iSV21¥230198608-198808

main47491-22020iSV25,VZV21¥140198710-198808

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047iSV21¥230198608-198808

main90942-02047iVZV21..SED..LE¥230198802-198808

W(ANTI-LOCK BRAKE SYSTEM)

13 parts on this diagram · 3 diagrams in section
