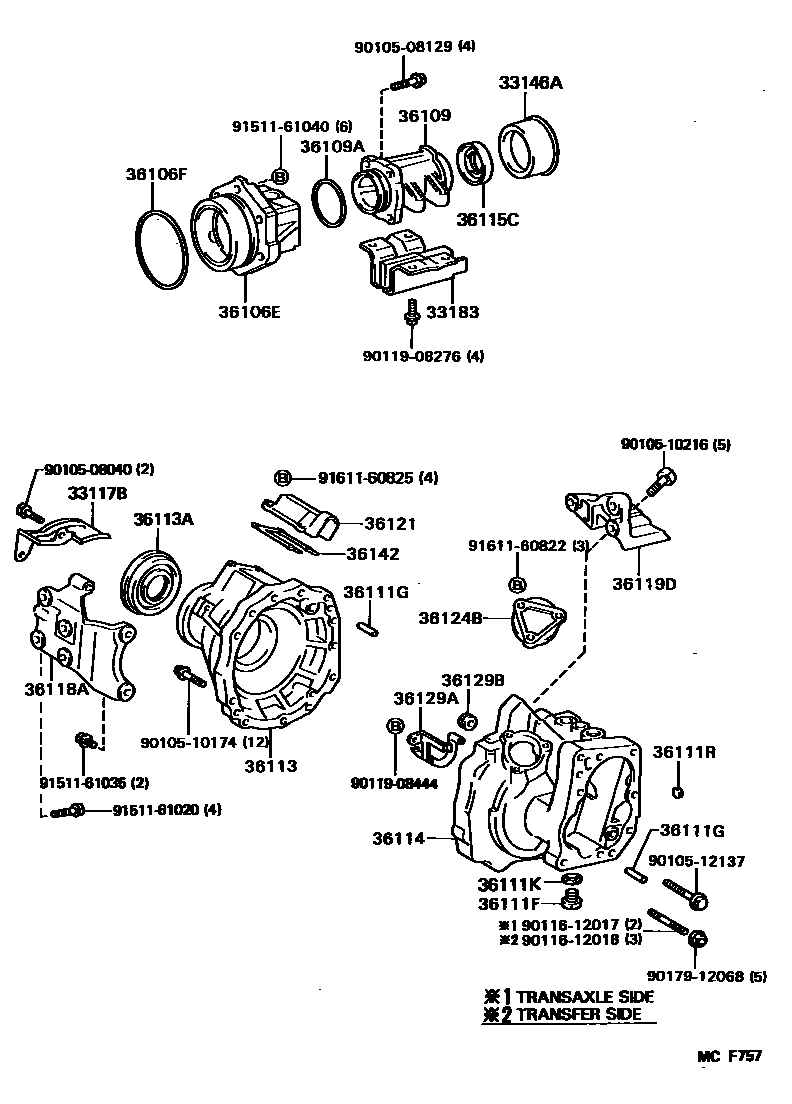

TRANSFER CASE & EXTENSION HOUSING
33117BPROTECTOR, TRANSFER CASE
W(ANTI-LOCK BRAKE SYSTEM)
33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST
sub33146-30020
33183DAMPER, TRANSFER DYNAMIC
W(ANTI-LOCK BRAKE SYSTEM)
36106ECAGE SUB-ASSY, TRANSFER PINION BEARING
W(ANTI-LOCK BRAKE SYSTEM)
36106FRING, O (FOR TRANSFER PINION BEARING CAGE)
36109HOUSING SUB-ASSY, TRANSFER EXTENSION
sub36109-20012
36109ARING, O (FOR TRANSFER EXTENSION HOUSING)
36111FPLUG (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=20,OD=10,L=20, OD=8
L=20,OD=10,L=20,OD=8
L=24,OD=12,L=24, OD=12
L=24,OD=12,L=24,OD=12
36111KGASKET (FOR TRANSFER CASE)
36111RPLUG, TIGHT (FOR TRANSFER CASE)
36113CASE, TRANSFER, RH
W(ANTI-LOCK BRAKE SYSTEM)
36113ASEAL, OIL (FOR TRANSFER CASE RH)
36114CASE, TRANSFER, LH
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
W(ANTI-LOCK BRAKE SYSTEM)
36118APLATE, TRANSFER STIFFENER, RH
W(ANTI-LOCK BRAKE SYSTEM)
36119DPLATE, TRANSFER STIFFENER, CENTER
W(ANTI-LOCK BRAKE SYSTEM)
36121COVER, TRANSFER CASE, NO.1
36124BCOVER, TRANSFER INSPECTION HOLE
W(ANTI-LOCK BRAKE SYSTEM)
36129ATUBE, TRANSFER OIL
36129BCUSHION (FOR TRANSFER OIL TUBE)
36142GASKET, TRANSFER COVER
9010508040
main90105-08040
9010508129
main90105-08129
9010510174
main90105-10174
9010510216
main90105-10216
9010512137
main90105-12137
9011612017
main90116-12017
9011612018
main90116-12018
9011908276
main90119-08276
9011908444
main90119-08444
9017912068
main90179-12068
9151161020
main91511-61020
9151161035
main91511-61035
9151161040
main91511-61040
9161160822
main91611-60822
9161160825
main91611-60825
37 parts on this diagram · 2 diagrams in section
