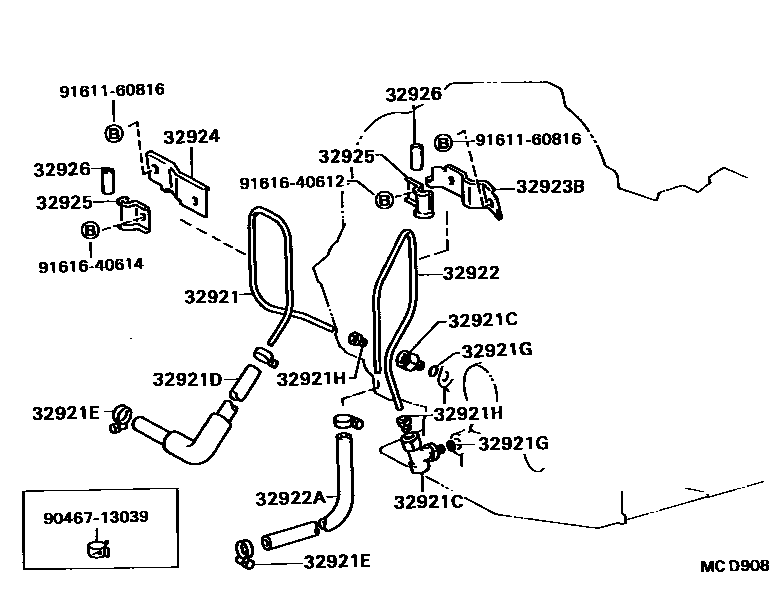

OIL COOLER & TUBE (ATM)

0001 1 0002 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-32050iSV21..4FC198608-198808

HOSE L=360

main32921-32051iSV21..4FC198710-198808

HOSE L=415

main32921-32071iVZV21..4FC198807-198808

sub32921-32072

32921CUNION(FOR OIL COOLER TUBE)

main32901-32010iSV21..4FC198608-198808

OUTLET

main32901-32020iVZV21..4FC198802-198808

OUTLET

main90404-14007iSV21..4FC198608-198808

INLET

main90404-16021iVZV21..4FC198802-198808

INLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-32030iSV21..4FC198608-198710

main32941-32030iSV21..4FC198710-198808

L=360

main32941-32051iSV21..4FC198710-198808

L=415

sub32941-32140

main32941-32060iVZV21..4FC198802-198808

sub32941-32150

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-18002iSV21..4FC198608-198808

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iSV25198608-198808

32921HNUT, FLARE(FOR OIL COOLER TUBE)

main90402-14004iSV21..4FC198608-198808

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-32020iVZV21..4FC198802-198808

sub32922-32021

main32922-32040iSV21..4FC198608-198808

sub32922-32041

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-16026iSV21..4FC198608-198808

main90445-17076iVZV21..4FC198802-198808

sub90445-17105

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-20090iSV21..4FC198608-198808

main32923-32040iVZV21..4FC198802-198808

32924CLAMP, OIL COOLER TUBE, NO.2

main32923-32020iSV21..4FC198608-198709

sub32923-32021

main32923-32021iSV21..4FC198709-198808

main90462-12044iVZV21..4FC198802-198808

32925CLAMP, OIL COOLER TUBE, NO.3

main90461-06207iVZV21..4FC198802-198808

sub96221-24914

main90462-10082iSV21..4FC198608-198808

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30011iSV21..4FC198608-198808

L=25,ID=8

main32926-30020iVZV21..4FC198802-198808

L=35,ID=10

9046713039

main90467-13039

9161160816

main91611-60816

9161640612

main91616-40612

9161640614

main91616-40614

16 parts on this diagram · 2 diagrams in section
