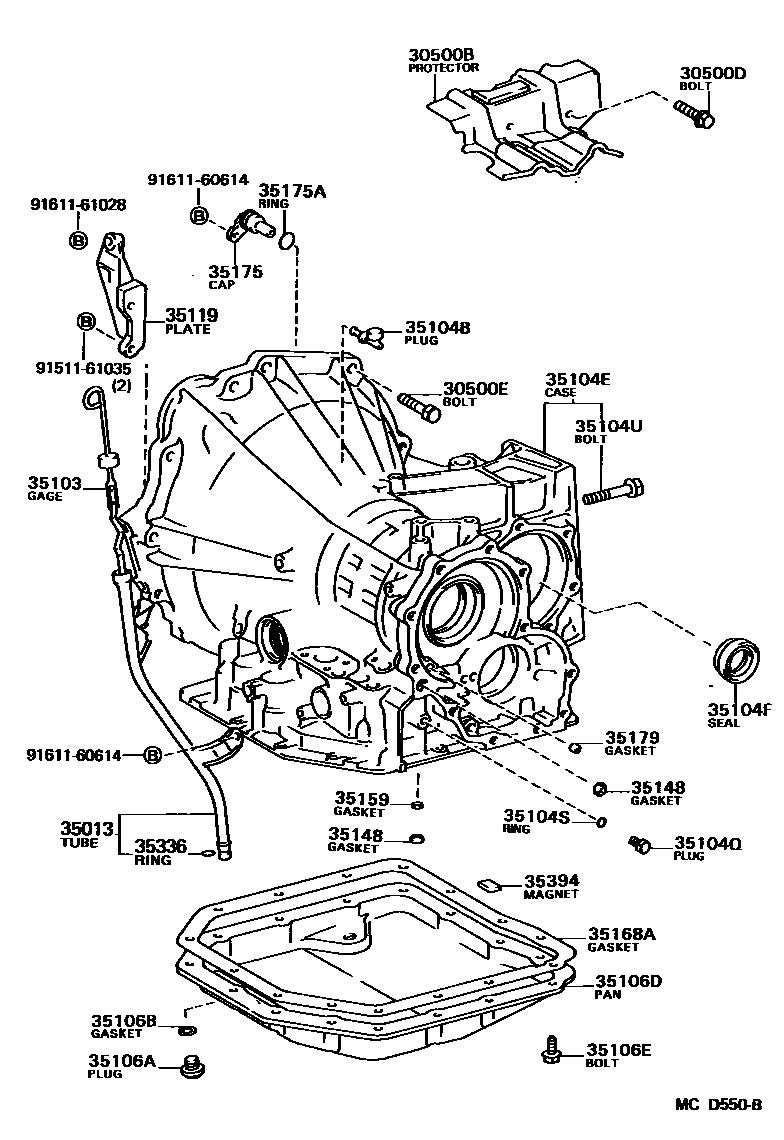

TRANSMISSION CASE & OIL PAN (ATM)
30500BPROTECTOR, TRANSAXLE CASE
30500DBOLT(FOR TRANSAXLE CASE PROTECTOR)
sub91641-H0820
30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)
*10-1.25PX43-26
*10-1.25PX43-26,*10-1.25PX43-26
*12-1.25PX45-30,*12-1.25PX45-30
*12-1.25PX45-30
*12-1.25PX60-30
*10-1.25PX22-22
*10-1.25PX22-22,*10-1.25PX22-22
35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35104BPLUG, BREATHER, NO.1 (ATM)
35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE
sub35104-20072
35104QPLUG, NO.1 (FOR TRANSAXLE CASE)
35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)
35104UBOLT (FOR TRANSAXLE CASE)
*10-1.25PX65-30,*10-1.25PX65-30
*10-1.25PX75-30,*10-1.25PX75-30
*10-1.25PX100-30,*10-1.25PX100-30
35106APLUG SUB-ASSY, DRAIN (ATM)
35106BGASKET, DRAIN PLUG (ATM)
35106EBOLT (FOR TRANSAXLE OIL PAN)
35119PLATE, STIFENER, LH (ATM)
35148GASKET, GOVERNOR APPLY, NO.1
35159GASKET, BRAKE DRUM
35175CAP, TRANSAXLE CASE, NO.2
35175ARING, O (FOR TRANSAXLE CASE CAP)
35179GASKET, OVERDRIVE BRAKE
35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
9151161035
main91511-61035
9161160614
main91611-60614
9161161028
main91611-61028
27 parts on this diagram · 3 diagrams in section
