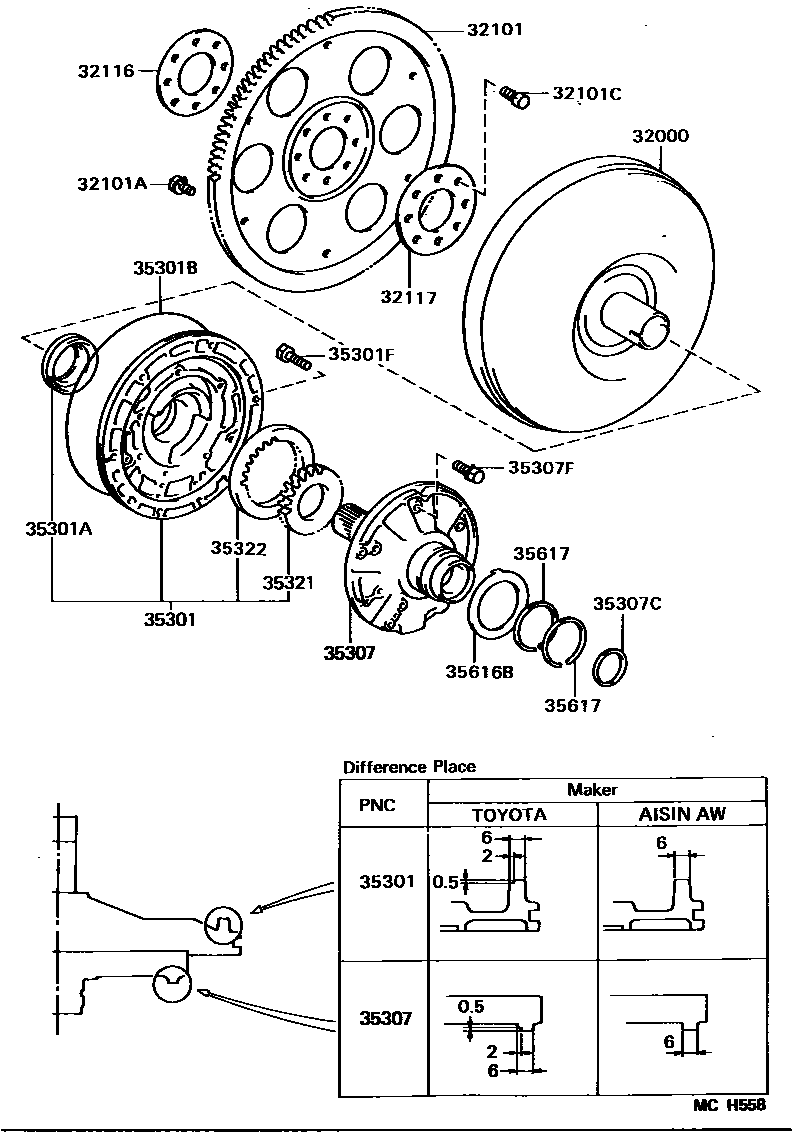

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1 0002 1

32000CONVERTER ASSY, TORQUE

main32000-32012iSV21..4FC¥135,000198608-198702

sub32000-32020¥136,000

main32000-32020iSV21..4FC¥136,000198702-198802

sub32000-32040¥136,000

main32000-32030iVZV21..4FC¥140,000198802-198808

main32000-32040iSV21..4FC¥136,000198802-198808

sub32000-32080¥136,000

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-32040iSV21..4FC¥21,700198608-198808

sub32101-32041¥21,600

main32101-32080iVZV21..4FC¥21,700198802-198808

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iSV21..4FC¥80198608-198808

*8-1.25PX12-8.4,OLIVE GREEN

main90119-08498iSV21..4FC¥80198608-198808

*8-1.25PX12-8,BLACK

main90119-09009iVZV21..4FC¥160198802-198808

*9-1.25PX12.8-8.8,*9-1.25PX12.8-8.8

main90119-09010iVZV21..4FC¥160198802-198808

*9-1.25PX12.8-9,*9-1.25PX12.8-3.8

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iVZV21..4FC¥130198802-198808

*10-1.25PX18-13

main90109-10054iSV21..4FC¥210198608-198808

*10-1.25PX22-16

32116SPACER, DRIVE PLATE, FRONT

main32116-14020iSV21..4FC¥1,070198608-198808

main32116-32020iVZV21..4FC¥1,050198802-198808

32117SPACER, DRIVE PLATE, REAR

main32117-14030iSV21..4FC¥1,710198608-198808

main32117-32020iVZV21..4FC¥730198802-198808

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-32010iVZV21..4FC¥26,400198608-198808

AISIN WARNER

main35035-32020iSV21..4FC¥26,400198608-198808

TOYOTA

sub35035-32H00¥29,700

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iSV21..4FC¥540198608-198808

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99024iSV21..4FC¥2,050198608-198808

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08050iSV21..4FC¥200198608-198808

*8-1.25PX28-28

35307SHAFT SUB-ASSY, STATOR

main35370-32022iSV21..4FC¥27,000198608-198808

AISIN WARNER

sub35370-20H00¥18,100

sub35370-32H01¥19,400

main35370-32031iSV21..4FC¥27,000198608-198808

TOYOTA

sub35370-32H00¥25,300

main35370-32040iVZV21..4FC¥24,200198802-198808

sub35370-33010¥24,300

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-32020iSV21..4FC¥700198608-198808

T=0.8,T=0.8

main35789-32030iSV21..4FC¥740198608-198808

T=1.4,T=1.4

35307FBOLT (FOR STATOR SHAFT)

main90119-06180iSV21..4FC¥80198608-198808

35321GEAR, FRONT OIL PUMP DRIVE

main35321-32040iSV21..4FC¥3,880198608-198808

T=9.440-9.456,MARK A OR D

sub35321-12070¥3,720

main35321-32040iSV21..4FC¥3,880198710-198808

T=9.440-9.456

sub35321-12070¥3,720

main35321-32050iSV21,VZV21..4FC¥3,880198608-198808

T=9.456-9.474,MARK B OR E

sub35321-12090¥3,720

main35321-32050iSV21..4FC¥3,880198710-198808

T=9.456-9.474

sub35321-12090¥3,720

main35321-32060iSV21,VZV21..4FC¥3,880198710-198808

T=9.474-9.490

sub35321-12110¥3,720

main35321-32060iSV21..4FC¥3,880198608-198808

T=9.474-9.490,MARK C OR F

sub35321-12110¥3,720

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-32040iSV21,VZV21..4FC¥4,160198710-198808

T=9.440-9.456

sub35322-12060¥3,980

main35322-32040iSV21,VZV21..4FC¥4,160198608-198808

T=9.440-9.456,MARK A OR D

sub35322-12060¥3,980

main35322-32050iSV21..4FC¥4,160198608-198808

T=9.456-9.474,MARK B OR E

sub35322-12080¥3,980

main35322-32050iSV21..4FC¥4,160198710-198808

T=9.456-9.474

sub35322-12080¥3,980

main35322-32060iSV21,VZV21..4FC¥4,160198608-198808

T=9.474-9.490,MARK C OR F

sub35322-12100¥3,980

main35322-32060iSV21..4FC¥4,160198710-198808

T=9.474-9.490

sub35322-12100¥3,980

35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)

main35616-32010iSV21,VZV21..4FC¥2,070198608-198808

35617RING, CLUTCH DRUM OIL SEAL

main35617-32010iSV21..4FC¥1,400198608-198708

main35617-32011iSV21..4FC¥1,520198708-198808

17 parts on this diagram · 2 diagrams in section
