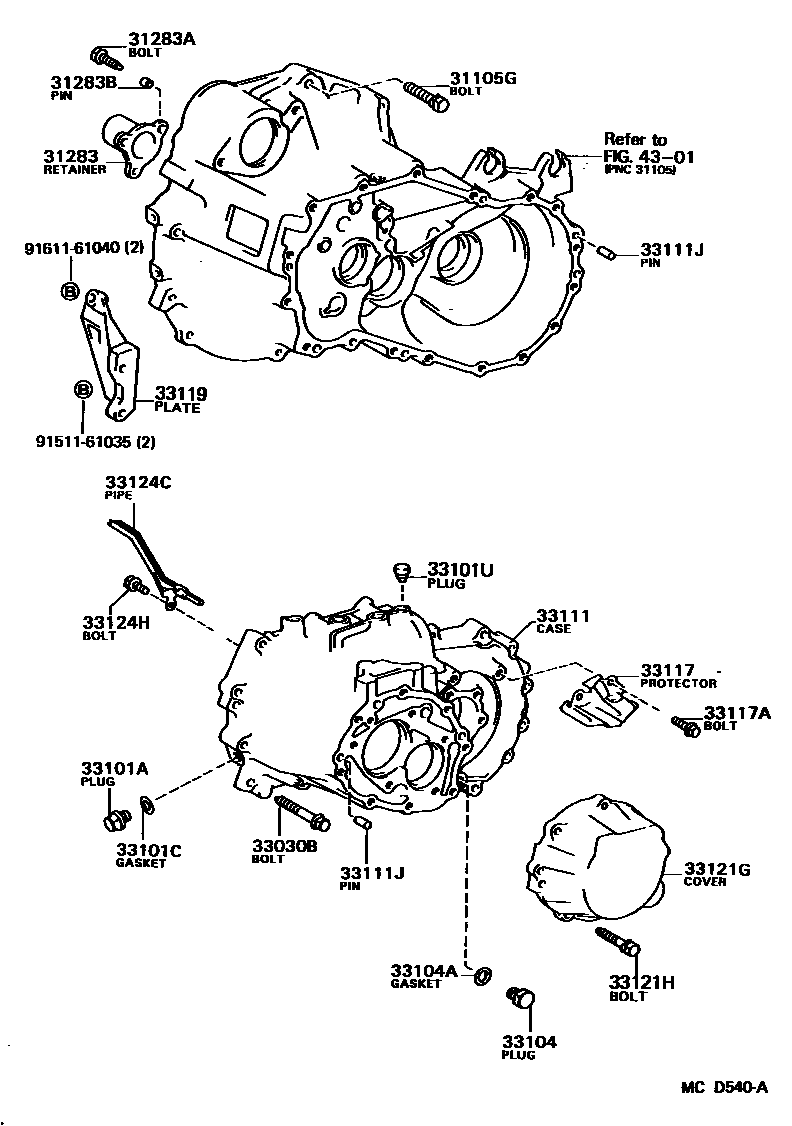

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1E56F2,E56F5 0003 1E52

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040iSV21..5F198608-198710

*8-1.25PX18-15,*8-1.25PX18-15

sub91641-H0820

main90105-08040iSV2#,VZV21..5F198710-198808

*8-1.25PX18-15

sub91641-H0820

main90105-10077iSV2#..5F198710-198808

*10-1.25PX43-26

main90105-10077iSV21..5F198608-198710

*10-1.25PX43-26,*10-1.25PX43-26

main90105-12038iVZV21..5F198802-198808

*12-1.25PX72-25

main90119-12168iSV21..5F198608-198710

*12-1.25PX55-30,*12-1.25PX55-30

main90119-12168iSV2#..5F198710-198808

*12-1.25PX55-30

main91611-61045iVZV21..5F198802-198808

*10-1.25PX95-50

sub91612-61045

main91619-61260iVZV21..5F198802-198808

*12-1.25PX60-30

main91651-41016iSV21..5F198608-198710

*10-1.25PX16-16

main91651-41022iSV21..5F198710-198808

*10-1.25PX22-22

31283RETAINER, CLUTCH RELEASE BEARING HUB

main31283-32010iSV21..5F198608-198808

31283ABOLT(FOR CLUTCH RELEASE BEARING HUB RETAINER)

main90105-06023iSV21..5F198608-198808

sub91511-B0620

31283BPIN, RING(FOR CLUTCH RELEASE BEARING HUB RETAINER)

main90253-08002iSV21..5F198608-198808

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042iSV21..5F198608-198808

*8-1.25PX45-27.5

sub90105-08430

main90105-08126iSV25,VZV21..5F198710-198808

*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18002iSV21,VZV21..5F198608-198808

main90341-18033iSV25198710-198808

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iSV21..5F198608-198808

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03080iSV21..5F198608-198808

main90930-03111iSV25,VZV21..5F198710-198808

sub90930-03148

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iSV21..5F198608-198808

main90341-18033iVZV21..5F198802-198808

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iSV25198608-198808

33111CASE, MANUAL TRANSMISSION

main33101-20030iVZV21..5F198802-198808

sub33101-20040

sub90560-10019

sub91511-61016

main33101-32010iSV25198710-198808

sub33101-32011

sub90560-10019

sub91511-61016

main33111-32014iSV21..5F198608-198808

sub33111-20140

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iSV25198608-198808

L=23,OD=8

main90250-12005iVZV21..5F198802-198808

L=24,OD=12

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-20020iSV25,VZV21..5F198710-198808

main33117-32011iSV21..5F198608-198808

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040iSV21..5F198608-198808

sub91641-H0820

33119PLATE, STIFFENER, LH(MTM)

main33119-20080iSV25198710-198808

main33119-32020iSV21..5F198608-198808

main33119-32040iVZV21..5F198802-198808

33121GCOVER, MANUAL TRANSMISSION CASE

main33102-20040iVZV21..5F198802-198808

sub33102-33010

main33102-32011iSV21..5F198608-198808

sub33102-32012

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08089iSV21..5F198608-198808

sub90105-08273

main90119-08630iSV25198710-198808

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-12030iSV25198710-198808

main33124-20020iVZV21..5F198802-198808

main33124-32011iSV21..5F198608-198808

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08648iSV25,VZV21..5F198710-198808

sub90119-08830

main91651-60618iSV21..5F198608-198808

4301

9151161035

main91511-61035

9161161040

main91611-61040

22 parts on this diagram · 3 diagrams in section
