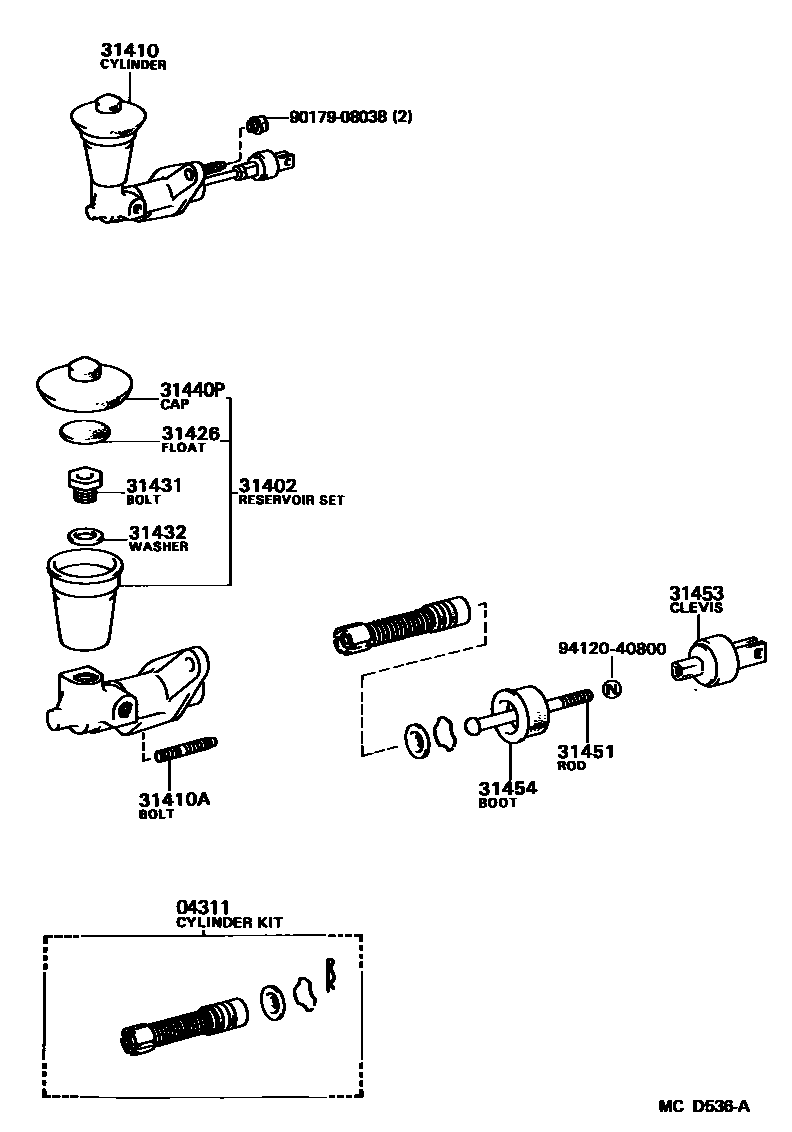

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-14030iSV21..5F198611-198704

sub04311-14031

main04311-14031iSV21..5F198704-198711

sub04311-14032

main04311-30080iSV21..5F198608-198611

sub04311-14020

main04311-32030iSV2#,VZV21..5F198711-198808

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-30030iSV2#,VZV21..5F198608-198808

31410CYLINDER ASSY, CLUTCH MASTER

main31410-32030iSV21..5F198608-198704

sub31410-32031

main31410-32031iSV21..5F198704-198711

sub31410-32032

main31410-32032iSV2#,VZV21..5F198711-198808

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iSV21..5F198608-198808

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iSV2#,VZV21..5F198608-198808

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iSV21..5F198608-198808

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iSV21..5F198608-198808

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iSV21..5F198608-198808

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-14010iSV21..5F198608-198609

main31451-32020iSV2#,VZV21..5F198711-198808

main31451-32040iSV21..5F198609-198711

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28011iSV21..5F198608-198808

sub31404-28012

31454BOOT, CLUTCH MASTER CYLINDER

main31454-24010iSV21..5F198608-198808

9017908038

main90179-08038

9412040800

main94120-40800

13 parts on this diagram · 1 diagram in section
