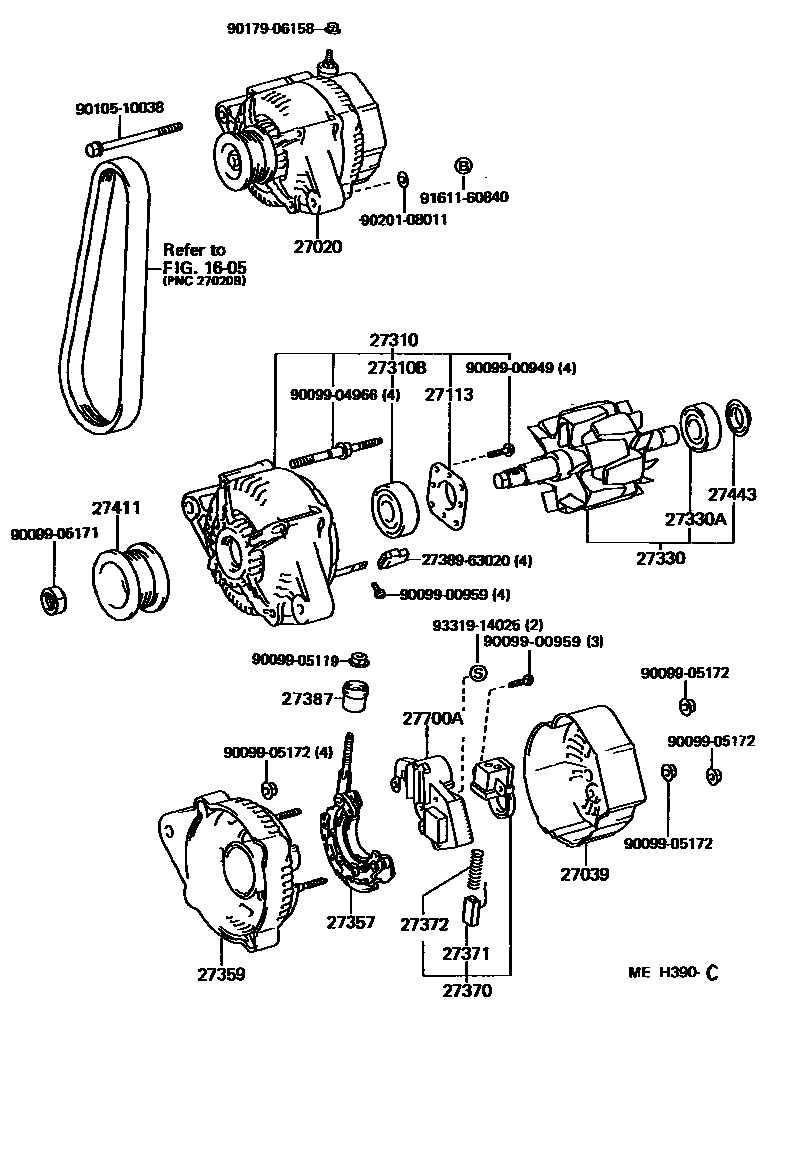

ALTERNATOR

0001 112V 70A 0002 112V 70A

1605

27020ALTERNATOR ASSY

main27060-62011i2VZFE..VZV21198802-198808

12V 70A

main27060-63080i3SFE..SV21198608-198608

12V 70A,12V 70A

main27060-63081i3SFE..SV21198608-198702

12V 70A,12V 70A

sub27060-63082

main27060-63082i3SFE..SV21198702-198710

12V 70A,12V 70A

main27060-63082i3SFE..SV2#198710-198808

12V 70A

27039COVER, ALTERNATOR REAR END

main27039-72010i3SFE..SV21198608-198808

12V 70A

sub27039-15170

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-70200i3SFE,2VZFE..SV2#,VZV21198702-198808

12V 70A

main27312-72100i3SFE..SV21198608-198702

12V 70A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-62011i2VZFE..VZV21198802-198808

12V 70A

main27310-63021i3SFE..SV21198608-198702

12V 70A

main27310-70100i3SFE..SV21198702-198808

12V 70A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10159i3SFE..SV21198608-198702

12V 70A

sub90099-10199

main90099-10178i3SFE..SV21198702-198808

12V 70A

27330ROTOR ASSY, ALTERNATOR

main27330-72100i3SFE..SV21198608-198709

12V 70A

sub27330-72101

main27330-72101i3SFE..SV21198709-198808

12V 70A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i3SFE..SV21198608-198808

12V 70A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-63020i3SFE,2VZFE..SV2#,VZV21198608-198808

12V 70A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-43160i3SFE..SV21198702-198808

12V 70A

sub27359-43161

sub27384-16380

main27359-63081i3SFE..SV21198608-198702

12V 70A

main27359-70200i2VZFE..VZV21198802-198808

12V 70A

sub27359-43160

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-63021i3SFE,2VZFE..SV2#,VZV21198608-198808

12V 70A

sub27370-70300

27371BRUSH, ALTERNATOR

main27371-63020i3SFE..SV21198608-198808

12V 70A

sub27371-70300

27372SPRING, ALTERNATOR BRUSH

main27372-72100i3SFE..SV21198608-198808

12V 70A

sub27372-63020

27387INSULATOR, TERMINAL

main27387-63020i3SFE..SV21198608-198608

12V 70A

main27387-70170i3SFE..SV21198608-198808

12V 70A

27411PULLEY, ALTERNATOR

main27411-16180i3SFE..SV21198702-198808

12V 70A

main27411-62011i2VZFE..VZV21198802-198808

12V 70A

sub27411-22080

main27411-63081i3SFE..SV21198608-198702

12V 70A

sub27411-16180

27443COVER, ALTERNATOR BEARING

main27443-63020i3SFE,2VZFE..SV2#,VZV21198608-198808

12V 70A

27700AREGULATOR ASSY, GENERATOR

main27700-63021i3SFE..SV21198608-198808

12V 70A

sub27700-70030

main27700-70030i2VZFE..VZV21198802-198808

12V 70A

2738963020INSULATOR, TERMINAL

main27389-63020

9009900949

main90099-00949

9009900959

main90099-00959

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010510038

main90105-10038

9017906158

main90179-06158

9020108011

main90201-08011

9161160840

main91611-60840

9331914025

main93319-14025

29 parts on this diagram · 2 diagrams in section
