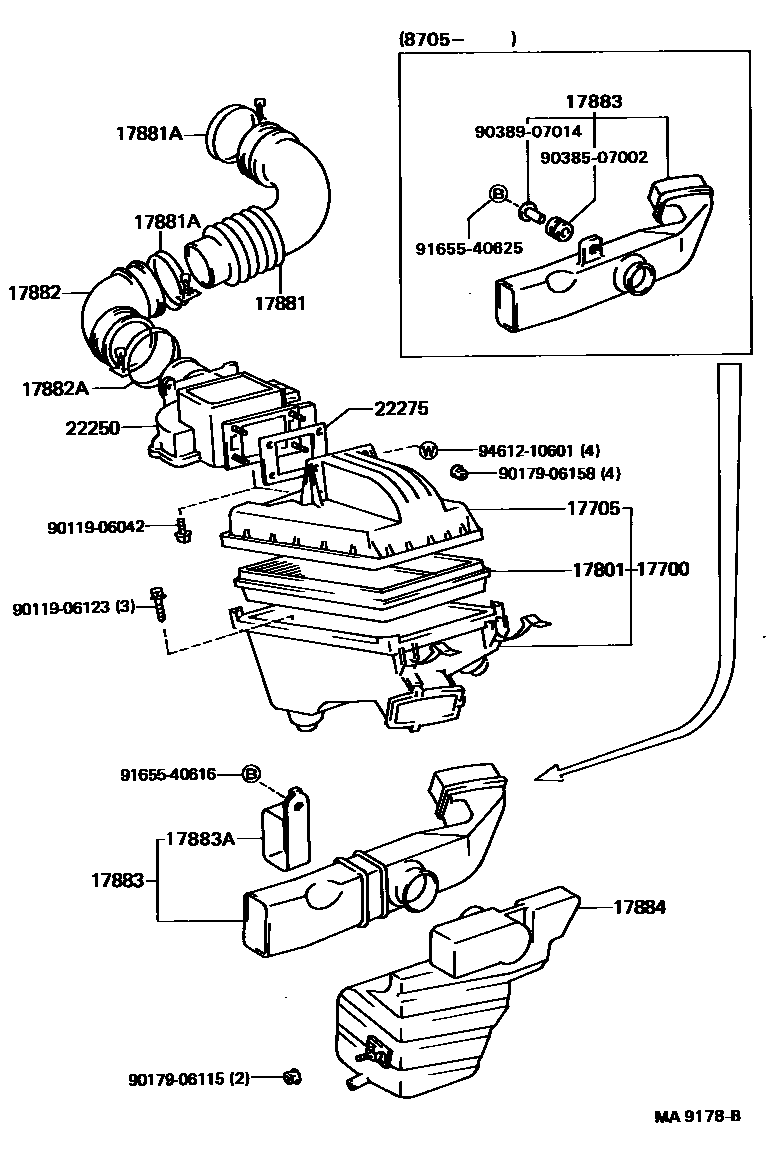

AIR CLEANER

0001 1 0002 1

17700CLEANER ASSY, AIR

main17700-62020i2VZFE..VZV21198802-198808

main17700-74100i3SFE..SV2#198608-198808

17705CAP SUB-ASSY, AIR CLEANER

main17705-62020i2VZFE..VZV21198802-198808

main17705-74070i3SFE..SV2#198608-198808

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-74010i3SFE..SV21198608-198808

sub17801-55010

main17801-74020i2VZFE..VZV21198802-198808

17881HOSE, AIR CLEANER, NO.1

main17881-62020i2VZFE..VZV21198802-198808

main17881-74110i3SFE..SV21198608-198808

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10730i3SFE..SV21198608-198808

HOSE SIDE

main96111-10750i3SFE..SV2#198710-198808

NO.1

main96111-10750i3SFE..SV21198608-198808

THROTTLE BODY SIDE

main96111-10900i2VZFE..VZV21198802-198808

NO.2

17882HOSE, AIR CLEANER, NO.2

main17882-74040i3SFE..SV21198608-198808

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10800i3SFE..SV21198608-198808

17883HOSE, AIR CLEANER, NO.3

main17882-63110i3SFE..SV21198608-198808

17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)

main90460-01046i3SFE..SV21198608-198705

17884HOSE, AIR CLEANER, NO.4

main17883-62010i2VZFE..VZV21198802-198808

sub17883-62011

main17883-63030i3SFE..SV2#198608-198808

22250METER ASSY, INTAKE AIR FLOW

main22250-62020i2VZFE..VZV21198802-198808

main22250-74100i3SFE..SV21198608-198808

main22250-74140i3SFE..SV25198710-198808

22275GASKET, AIR FLOW METER

main22275-41010i3SFE..SV21198608-198808

main22275-43010i2VZFE..VZV21198802-198808

9011906042

main90119-06042

9011906123

main90119-06123

9017906115

main90179-06115

9017906158

main90179-06158

9038507002

main90385-07002

9038907014

main90389-07014

9165540616

main91655-40616

9165540625

main91655-40625

9461210601

main94612-10601

21 parts on this diagram · 2 diagrams in section
