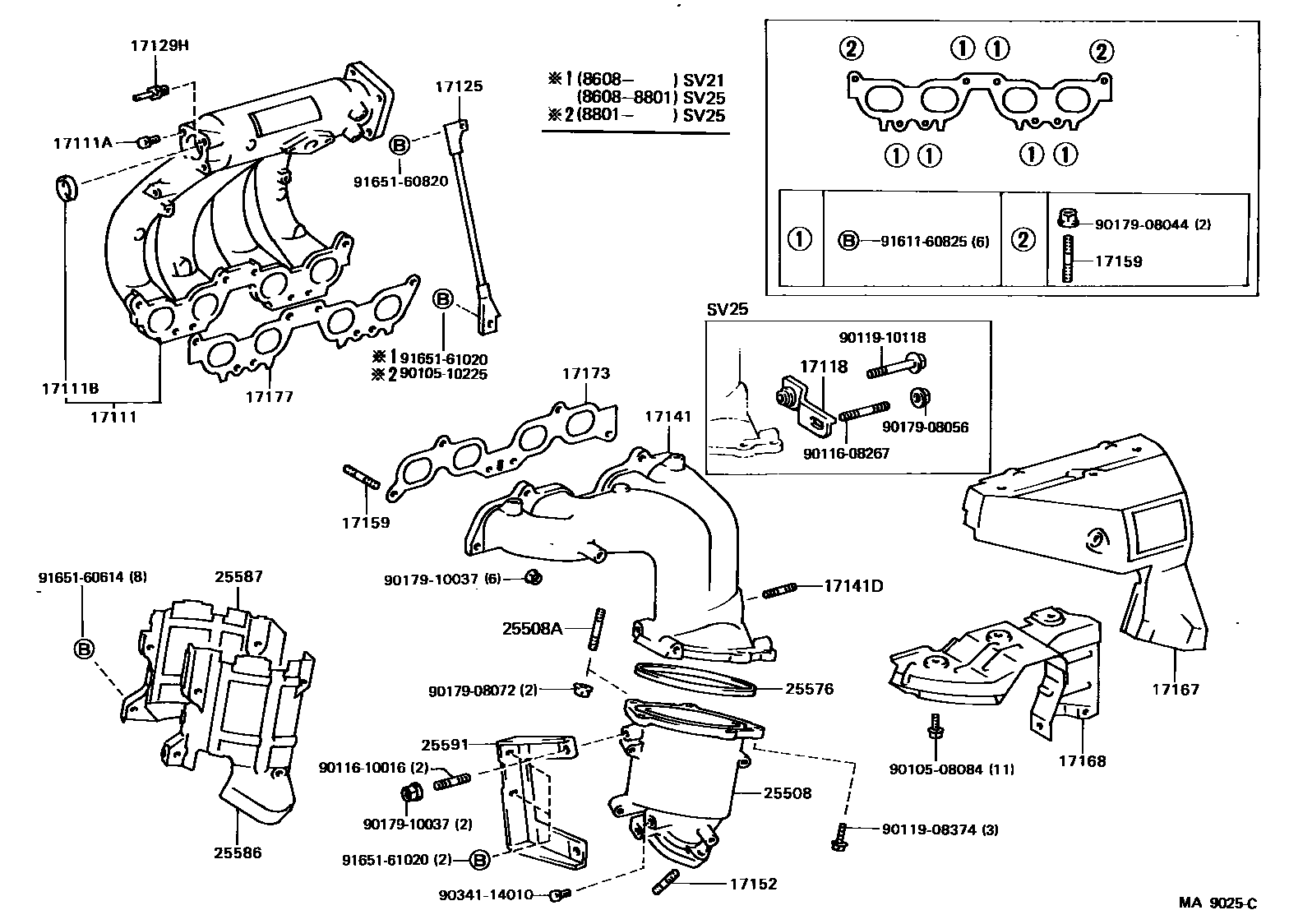

MANIFOLD

0001 1 0003 1

17111MANIFOLD, INTAKE

main17101-74070i3SFE..SV21198608-198709

sub17101-74071

main17101-74071i3SFE..SV21198709-198808

main17111-62020i2VZFE..VZV21198802-198808

17111APLUG, NO.1

main90345-51025i3SFE..SV21198608-198808

17111BPLUG, NO.2

main96411-44000i3SFE..SV21198608-198808

17118STAY, MANIFOLD

main17118-74080i3SFE..SV25198710-198808

sub17118-74300

17125STAY, SURGE TANK, NO.1

main17125-74020i3SFE..SV25198710-198808

sub17125-74021

main17125-74021i3SFE..SV25198808-198808

main17125-88361i3SFE..SV21198608-198808

17129TANK, INTAKE AIR SURGE

main17109-62010i2VZFE..VZV21198802-198808

sub17109-62012

17129HUNION, NO.4

main90404-51010i2VZFE..VZV21198802-198808

main90404-51026i3SFE..SV21198608-198808

17141MANIFOLD, EXHAUST

main17141-62020i2VZFE..VZV21198802-198808

main17141-74040i3SFE..SV21198608-198808

sub17141-74041

sub90105-08222

17141DBOLT, STUD(FOR OXYGEN SENSOR)

main90116-08128i2VZFE..VZV21198802-198808

main90116-08253i3SFE..SV2#198608-198808

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10017i2VZFE..VZV21198802-198807

main90116-10058i3SFE..SV21198608-198808

main90116-10149i2VZFE..VZV21198807-198808

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08251i2VZFE..VZV21198802-198808

INTAKE SIDE

main90116-10063i3SFE..SV21198608-198808

EXHAUST SIDE

main90116-10133i2VZFE..VZV21198802-198807

EXHAUST SIDE

main90116-10150i2VZFE..VZV21198807-198808

EXHAUST SIDE

main92122-60825i3SFE..SV2#198608-198808

INTAKE SIDE

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-62010i2VZFE..VZV21198802-198808

main17167-74040i3SFE..SV21198608-198808

sub17167-74140

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-62010i2VZFE..VZV21198802-198808

main17168-74020i3SFE..SV2#198608-198808

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-62020i2VZFE..VZV21198802-198808

main17173-88360i3SFE..SV21198608-198808

sub17173-88362

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-62030i2VZFE..VZV21198802-198808

main17177-74020i3SFE..SV21198608-198808

sub17177-74041

25508CONVERTER SUB-ASSY, MANIFOLD

main25508-74020i3SFE..SV21198608-198708

sub25508-74021

main25508-74021i3SFE..SV21198708-198801

sub25508-74022

main25508-74022i3SFE..SV2#198801-198808

sub25508-74080

25508ABOLT, STUD(FOR MANIFOLD CONVERTER)

main90116-08171i3SFE..SV2#198710-198808

main90116-08253i3SFE..SV21198608-198710

25576GASKET, MANIFOLD CONVERTER

main25576-74010i3SFE..SV21198608-198808

sub25576-74030

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-74010i3SFE..SV21198608-198808

sub25586-74011

main25586-74011i3SFE..SV2#198808-198808

sub25586-74060

25587INSULATOR, MANIFOLD CONVERTER, NO.2

main25587-74010i3SFE..SV21198608-198804

sub25587-74011

main25587-74011i3SFE..SV2#198808-198808

sub25587-74060

25591BRACKET, MANIFOLD SUPPORT

main25591-74010i3SFE..SV21198608-198808

sub25591-74011

9010508084

main90105-08084

9010510225

main90105-10225

9011608267

main90116-08267

9011610016

main90116-10016

9011908374

main90119-08374

9011910118

main90119-10118

9017908044

main90179-08044

9017908056

main90179-08056

9017908072

main90179-08072

9017910037

main90179-10037

9034114010

main90341-14010

9161160825

main91611-60825

9165160614

main91651-60614

9165160820

main91651-60820

9165161020

main91651-61020

36 parts on this diagram · 2 diagrams in section
