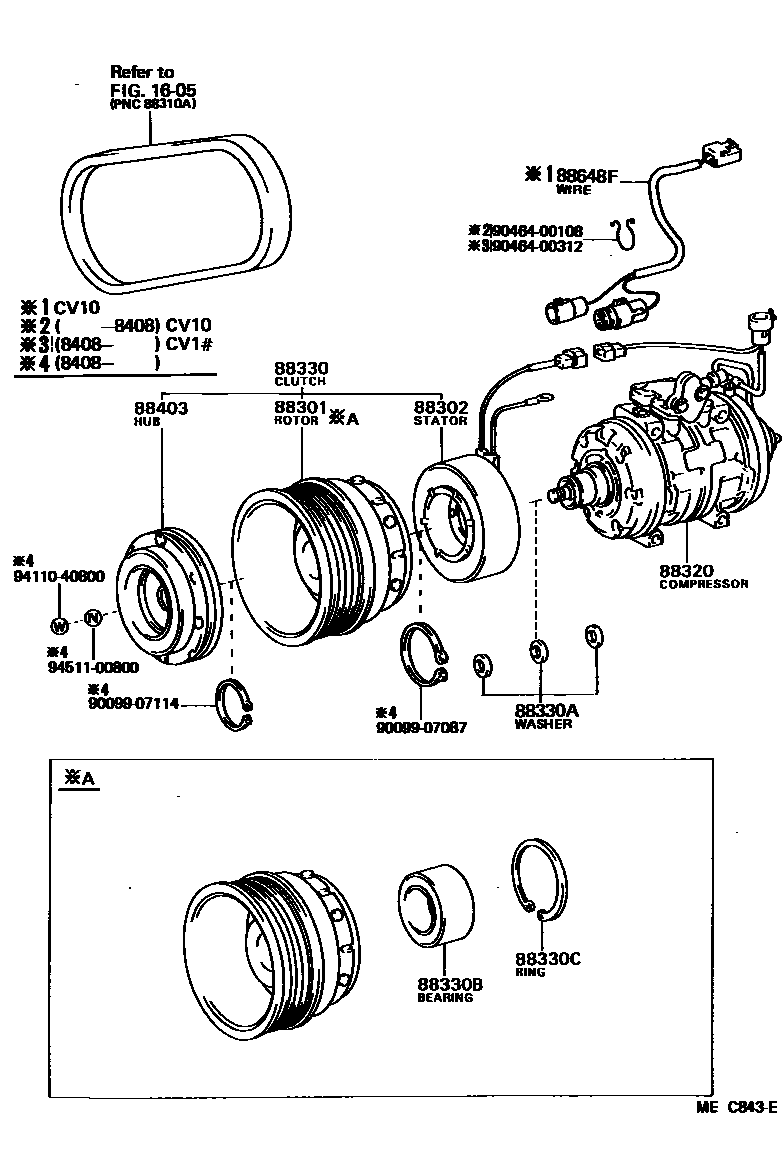

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

1605

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-32010iCV1#,SV11198301-198607

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-32010iCV1#,SV11198301-198607

88320COMPRESSOR ASSY, COOLER

main88320-32021iCV10,SV11198301-198408

main88320-32040iCV10,SV11198408-198607

main88320-32060iSV11198412-198607

88330CLUTCH ASSY, MAGNET

main88410-32010iCV1#,SV11198301-198607

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iCV1#,SV11198301-198607

88330BBEARING, MAGNET CLUTCH

main90099-10133iCV1#,SV11198301-198607

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07118iCV1#,SV11198301-198607

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14030iCV1#,SV11198301-198607

sub88403-12030

88648FWIRE, MAGNET CLUTCH

main88648-32040iCV1#198308-198607

9009907087

main90099-07087

9009907114

main90099-07114

9046400108

main90464-00108

9046400312

main90464-00312

9411040800

main94110-40800

9451100800

main94511-00800
