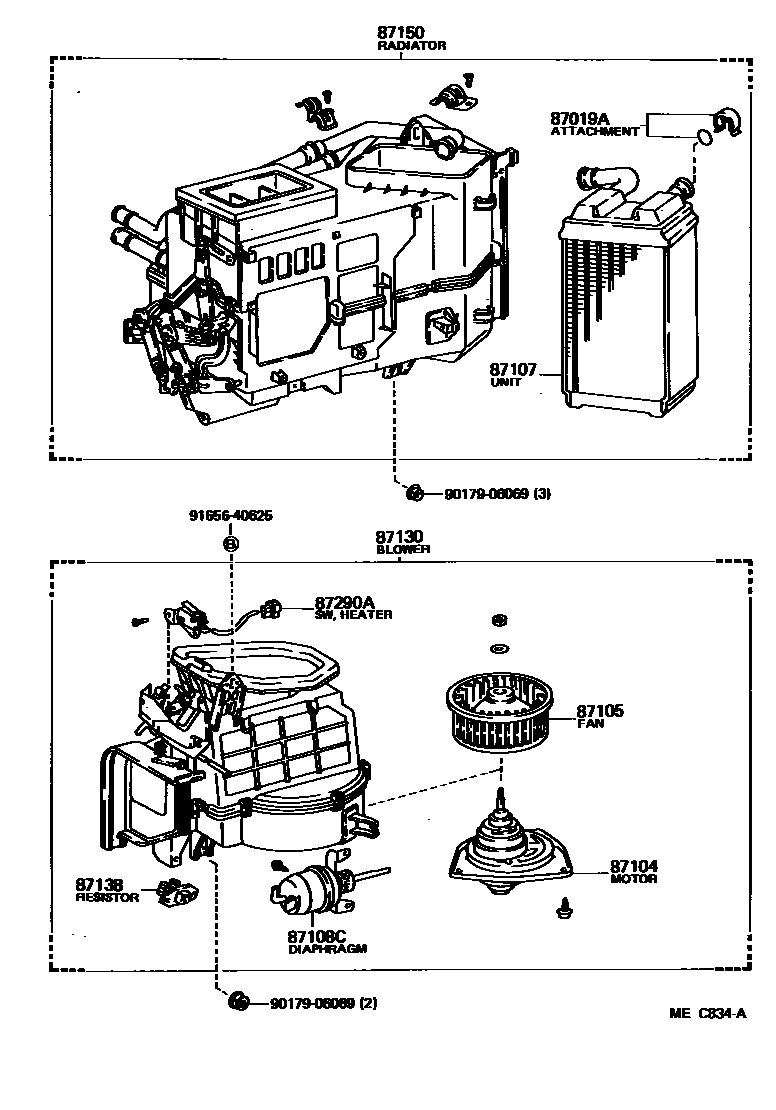

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

87019AATTACHMENT, HEATER

main87019-32010iCV1#,SV11198301-198607

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-32020iCV1#,SV11198301-198607

87105FAN SUB-ASSY, HEATER BLOWER

main87105-14020iCV1#,SV11198301-198607

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-32020iCV1#,SV11198301-198607

87108CDIAPHRAGM SUB-ASSY, HEATER BLOWER DAMPER

main87108-32010iCV1#,SV11198301-198607

W/COOLER

87130BLOWER ASSY, HEATER, FRONT

main87130-32020iCV1#,SV11198301-198607

main87130-32030iCV1#,SV11198301-198607

W/COOLER

87138RESISTOR, HEATER BLOWER

main87138-32010iCV1#,SV11198301-198607

87150RADIATOR ASSY, HEATER

main87150-32020iCV10,SV11198301-198408

main87150-32060iCV1#,SV11198408-198607

sub87150-32061

87290ASWITCH ASSY, HEATER

main87290-32010iCV1#,SV11198301-198607

W/COOLER

9017906069

main90179-06069

9165640625

main91656-40625

11 parts on this diagram · 1 diagram in section
