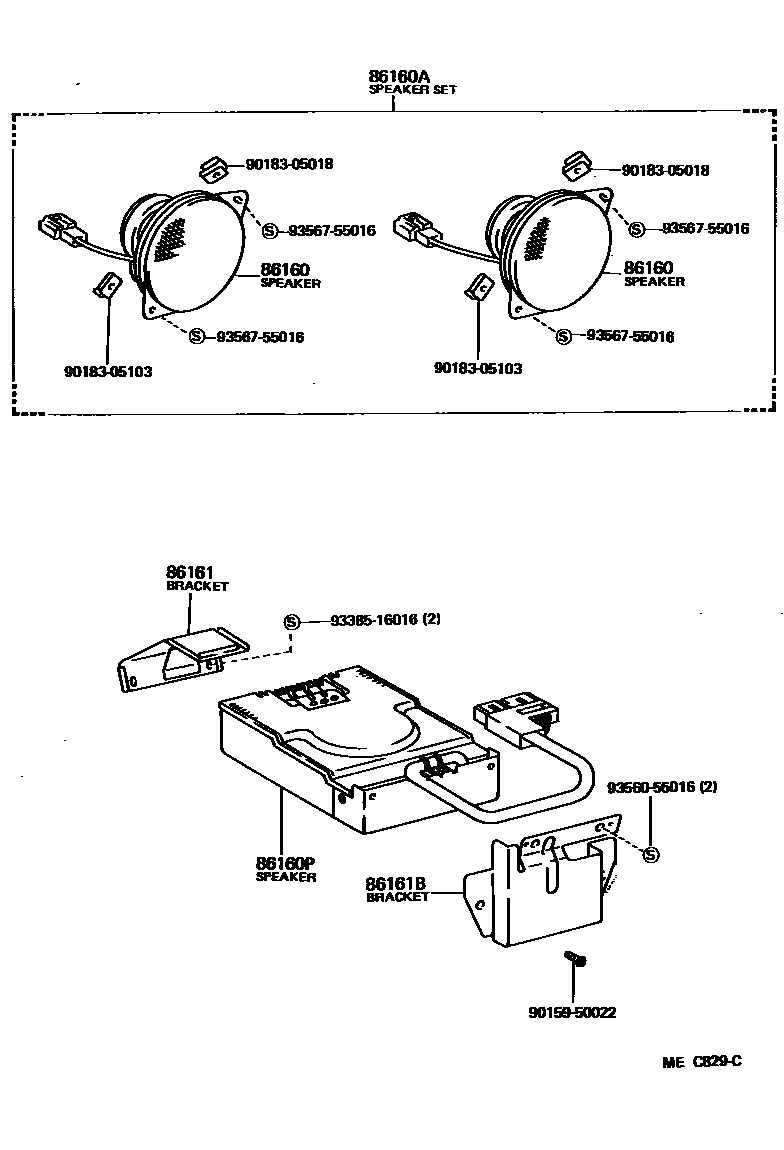

SPEAKER

0001 1 0002 1

86160SPEAKER ASSY, FRONT NO.1

main86160-32070iCV1#,SV11198301-198607

TEN

main86160-32080iCV1#,SV11198301-198607

MATSUSHITA

86160ASPEAKER SET, FRONT

main86160-39095iCV1#,SV11198301-198607

MATSUSHITA

86160PSPEAKER ASSY, FRONT NO.2

main86150-32030iCV10,SV11198301-198508

sub86150-32050

main86150-32050iCV11,SV11198508-198607

86161BRACKET, SPEAKER, FRONT NO.1

main86219-32040iCV1#,SV11198301-198607

86161BBRACKET, SPEAKER, FRONT NO.2

main86219-32030iCV10,SV11198301-198408

main86219-32060iCV1#,SV11198408-198607

9015950022

main90159-50022

9018305018

main90183-05018

9018305103

main90183-05103

9338516016

main93385-16016

9356055016

main93560-55016

9356755016

main93567-55016

11 parts on this diagram · 2 diagrams in section
