RADIO RECEIVER & AMPLIFIER & CONDENSER

86011ACONDENSER, RADIO SETTING

main90980-04041iCV10,SV11198301-198607

86120RECEIVER ASSY, RADIO

main86120-32020iCV10,SV11198301-198508

AM/FM MPX

main86120-32021iCV11,SV11198508-198607

AM/FM MPX

main86120-32030iCV10,SV11198301-198508

*26

main86120-32040iSV11..LE198301-198508

*27

main86120-32140iCV11,SV11198508-198607

*26

main86120-32150iSV11..LE198508-198607

*27

86120BKNOB, RADIO RECEIVER TUNING, NO.1

main86128-22090iCV10,SV11198301-198508

*26

main86128-22130iSV11..LE198301-198508

*27

main86128-32010iCV10,SV11198301-198508

AM/FM MPX

86120FKNOB, RADIO RECEIVER SUB VOLUME

main86128-14090iSV11..LE198301-198508

*27

main86128-22010iCV10,SV11198301-198508

AM/FM MPX

main86128-22370iCV10,SV11198301-198508

*26

86211BRACKET, RADIO, NO.1

main86211-32020iCV1#,SV11198301-198607

86212BRACKET, RADIO, NO.2

main86212-32020iCV1#,SV11198301-198607

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-39015iSV11..LE198301-198508

86280BKNOB, AMPLIFIER GRAPHIC EQUALIZER

main86128-14110iSV11..LE198301-198508

9011906005

main90119-06005

9322915008

main93229-15008

9356055016

main93560-55016

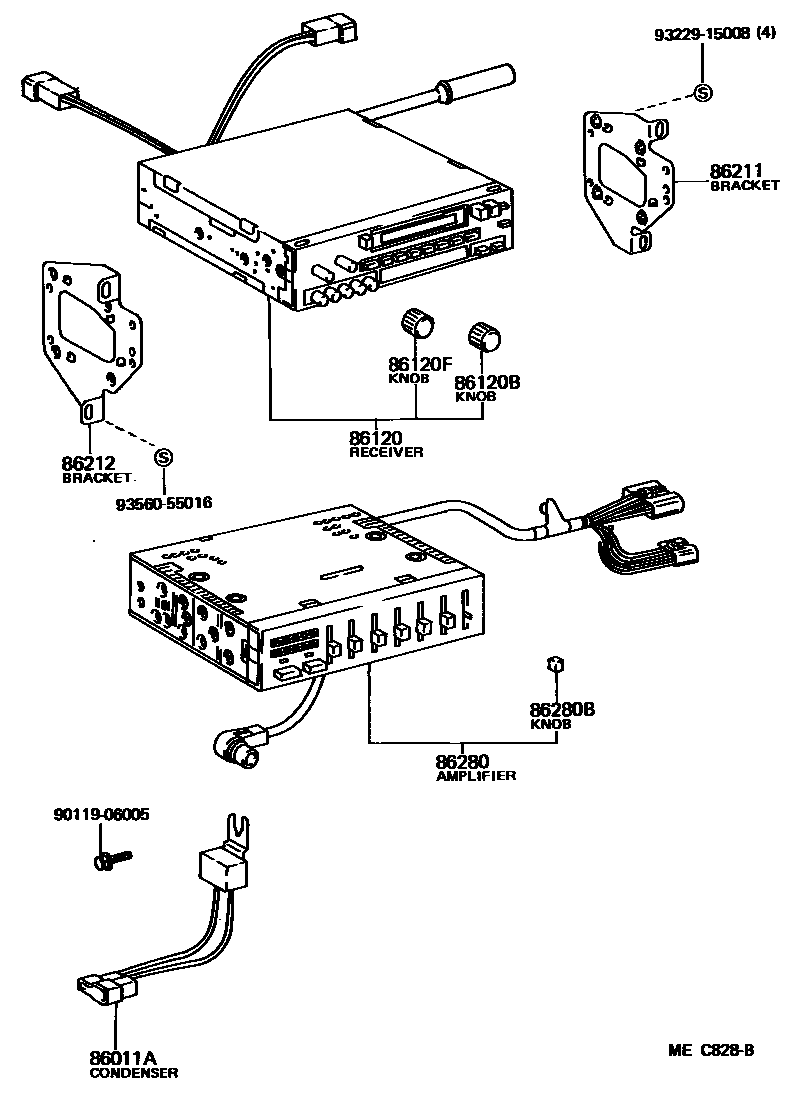

11 parts on this diagram · 1 diagram in section
